EBMX Motor and Controller BUNDLE for Surron Light Bee

Color: Black
Sale price$3,434.00


Looking to build the fastest Light Bee possible? Not a racer, but still want the smoothest throttle response we've ridden with gobs of power when you need it? This bundle has you covered!

Bundle includes:

The X-9000 mobile app (download link in the box) is very intuitive and dead simple to use. You can easily configure your bike, battery, throttle response, power delivery and more. Run it at 12kw or 24kw (Brett has his set to 30kw on the Race battery). Your choice.


Please be aware that the EBMX XLB-60 Motor is not compatible with stock or most aftermarket bash plates (SXS Bash Plates are the only aftermarket Bash Plates which we have tested that will fit).

With this in mind, EBMX has manufactured a special bash plate for use with the XLB-60 Motors which will be included in all pre-orders that you make before the 1st of August 2023.

For any orders made after the pre-order period has ended, we have added an additional $50 USD to the price of the XLB-60 to ensure that all customers have a bash plate to be used with the XLB-60 Motor.

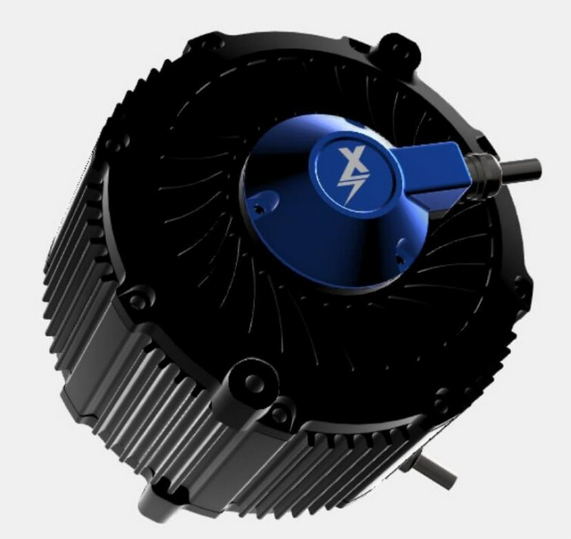

35KW rated and tested, designed from the ground up to handle the heat, 180C rated windings with U42H magnets

Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 13000RPM. Encoder based motor control for increased low end torque response and smooth predicable power delivery.

We built these motors to stay cool under race conditions to ensure you focus on your riding and not your motor temperatures. It doesn’t matter if you are on the track, street or local trail, if you want the best, then this motor is for you.

The EBMX motor range has been specifically designed to surpass the performance of other motors in their classes.

In contrast to many of our competitors who utilize hall sensors, we have opted to incorporate encoder sensors in our motors. This decision stems from the fact that encoder sensors demonstrate greater stability under demanding riding conditions. While hall sensors rely on estimated rotor positions, encoder sensors consistently provide precise angle measurements of the rotor’s position. Hall sensors are typically employed for tracking motor position during start-up and up to approximately 2000 rpm, after which the motor operates in a “sensorless” manner. However, during intense riding situations such as wheel spinning and sudden deceleration combined with rapid throttle adjustments, hall sensors angle detection can result in substantial current spikes in the controller. This can pose significant issues for many controllers, leading to tripping and loss of throttle power, although this is less prevalent in the X-9000.

Encoder sensors, on the other hand, are capable of tracking motor position at all speeds and do so more frequently than hall sensors. As a result they can deliver a smoother more responsive and controllable powerband and they do not generate the same type of current spikes that often cause controller issues. Furthermore, they contribute to improved low-end torque control and overall motor response.

EBMX motor have been custom built and are finely tuned to work with the EBMX X-9000 controller. These motors will work with many other types of controllers, however they may require you to do your own custom tuning

XLB-60 Motor (Light Bee) Specifications
VOLTAGE RANCE 48v – 104v
MOTOR CONFIGURATION 10 poles and 12 slots
WINDING TYPE Dual Y parallel connection
KV Value 95KV
Rated power Air cooled:
13,600W(Continuous run for 28 mins)
24,000W(Continuous run for 2 min 20seconds)
Water cooled:
Warranty 2 Year
Max Phase current 900A
Rated Phase current (Continuous run) 500A (28Nm)
Motor temperature 180 deg C windings
140 deg C start limiting
160 deg C power cut
Waterproofing IP67
Anti-corrosion Yes
Colors Black with Black End Cap
Black with Red End Cap
Black with Blue End Cap
Black with Gold End Cap
Black with Purple End Cap
Weight/Size Air cooled:
OD181.5mm*L118mm 10.5KG
Water cooled:
OD187mm*L118mm 12.5KG


Our new motors have been engineered for performance enthusiasts and experienced riders in controlled environments. These motors are significantly faster than standard motors, and their extreme speed can pose serious risks if not handled with caution.


  1. NOT INTENDED FOR ROAD USE: EBMX Motors are NOT designed for use on public roads or crowded areas. These motors are strictly meant for off-road use and controlled environments only.
  2. EXPERIENCED RIDERS ONLY: These high-performance motors are recommended for experienced riders who possess the necessary skills and expertise to handle powerful machines. Novice riders are strongly advised against using our motors.
  3. USE WITH CAUTION: The enhanced speed and power of our motors require extreme care and attentiveness. Always exercise caution and be aware of your surroundings when operating our products.
  4. UPGRADE SAFETY EQUIPMENT: It is crucial to ensure that your bike is equipped with upgraded brakes and other safety features capable of handling the increased speed and power provided by our motors. Using the motor with stock brakes or inadequate safety measures may result in accidents and severe injuries.
  5. ADHERE TO LOCAL LAWS: Familiarize yourself with local regulations and laws pertaining to off-road vehicle usage in your area. Always ride within designated areas and private tracks that allow for safe operation.
  6. KEEP AWAY FROM CHILDREN: Our motors are not toys, and they must be kept out of reach of children. Never allow minors or inexperienced individuals to operate these motors.
  7. RIDE RESPONSIBLY: Ensure that you are in a sound state of mind and not under the influence of any substances that could impair your judgment before operating the motor.

By purchasing and using EBMX Motors products, you acknowledge and understand the inherent risks associated with high-speed off-road motor use. EBMX shall not be liable for any injuries, accidents, damages, or losses incurred as a result of improper usage, negligence, or failure to adhere to this disclaimer.

Enjoy the thrill of our motors responsibly and with safety as your utmost priority.
