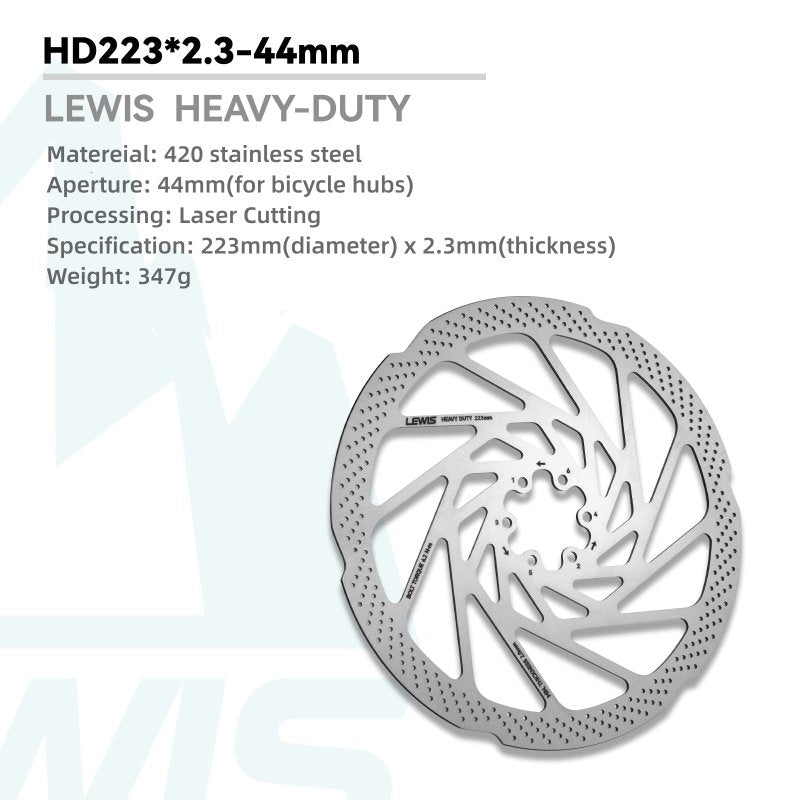

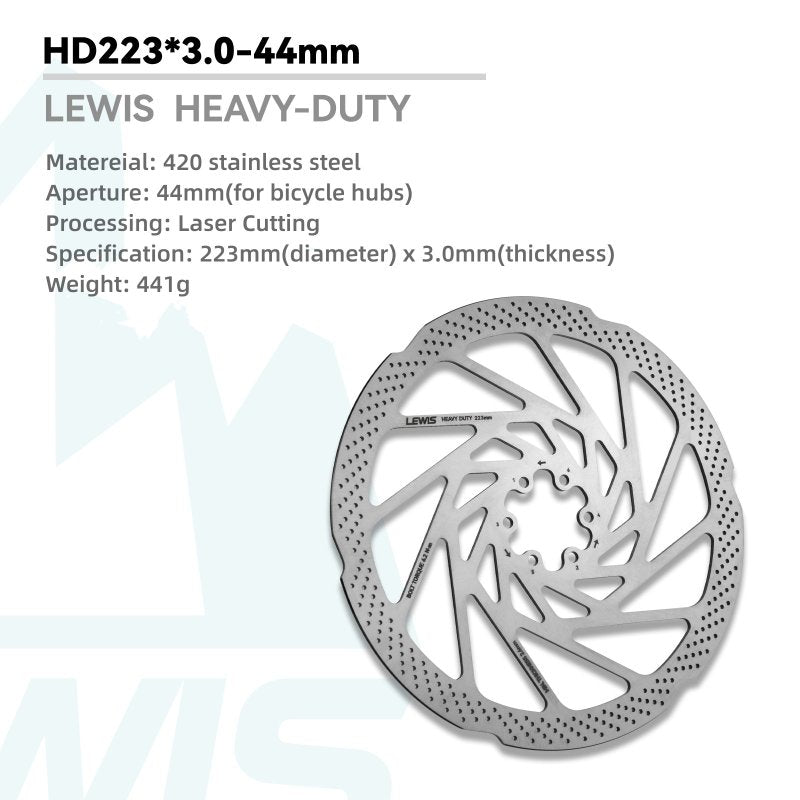

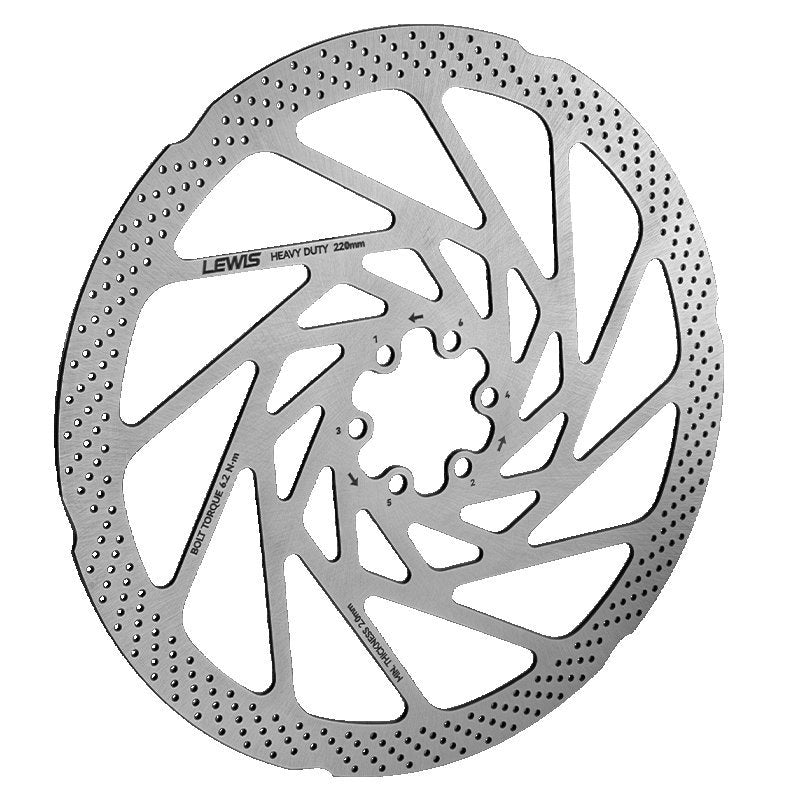

Size: 223mm x 2.3mm Thick or 223mm x 3.0mm Thick

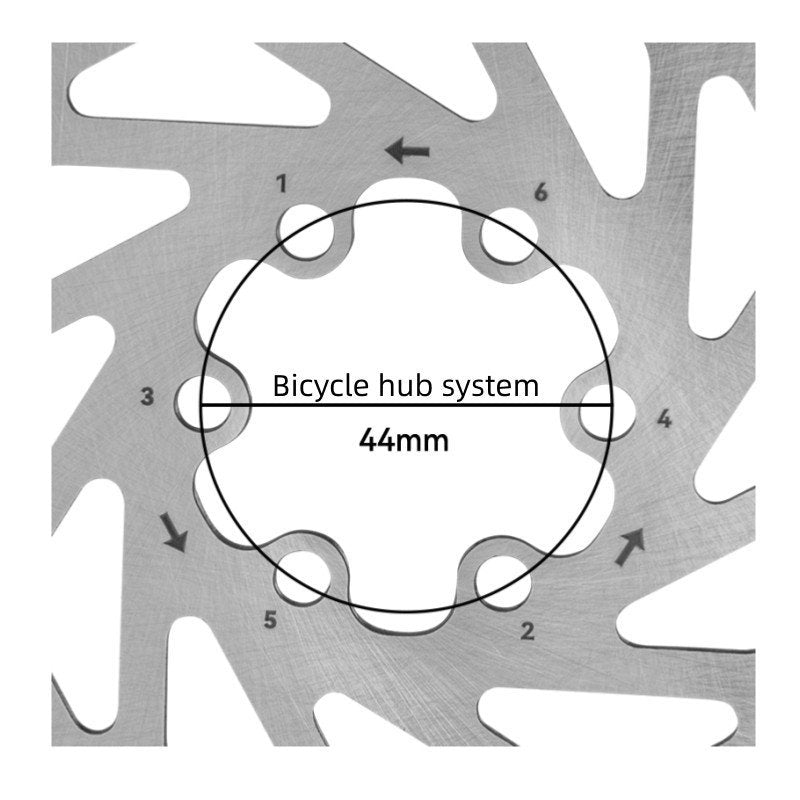

Brake Rotor Bolt Pattern: 44mm for E-Moto Front Wheel

Material: 420 stainless steel.

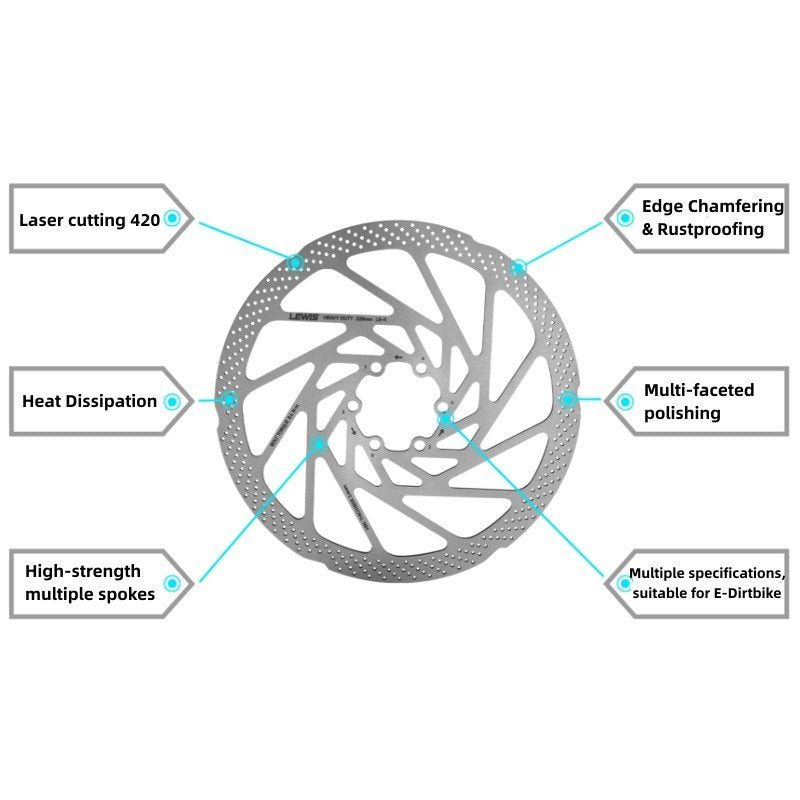

Laser cut and molded with high precision, low deformation and low induced stress.

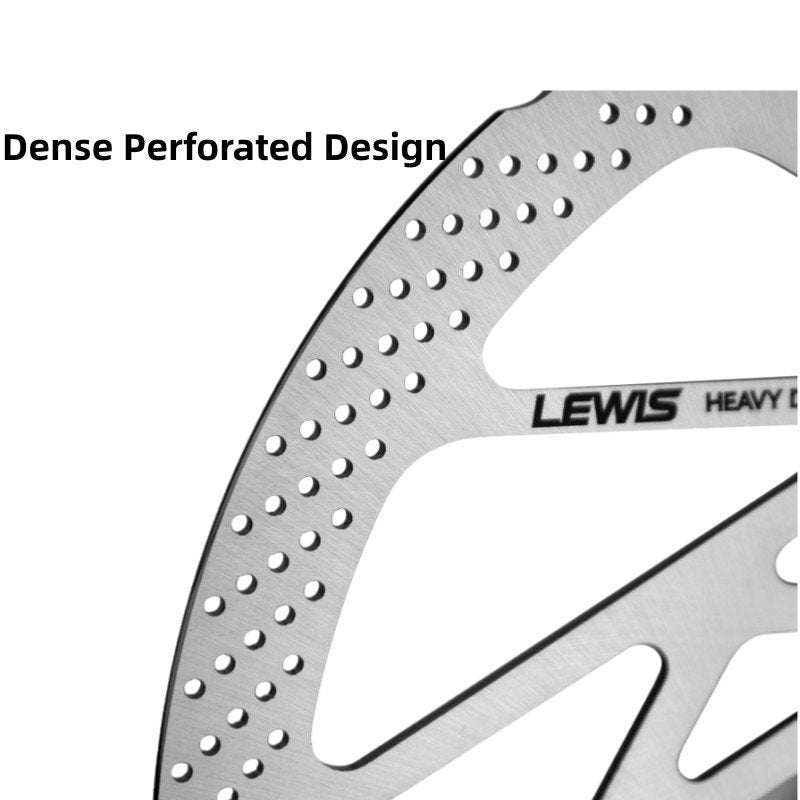

The dense perforated design used in the HD rotor effectively increases the heat dissipation area of the rotors.

The 12-spoke support design, coupled with internal triangular reinforcement, increases the support strength at the fixed position of the rotor, reducing the likelihood of fastener loosening caused by rotor resonance.

The surface employs a multifaceted polishing process to ensure uniform smoothness and roughness of the rotor surface.

The edges are chamfered, and all cut surfaces are coated with electrophoretic paint. This not only prevents rust but also to some extent reduces the occurrence of injuries caused by contact with the sharp edges of the rotor, thereby enhancing the safety attributes of the rotor.

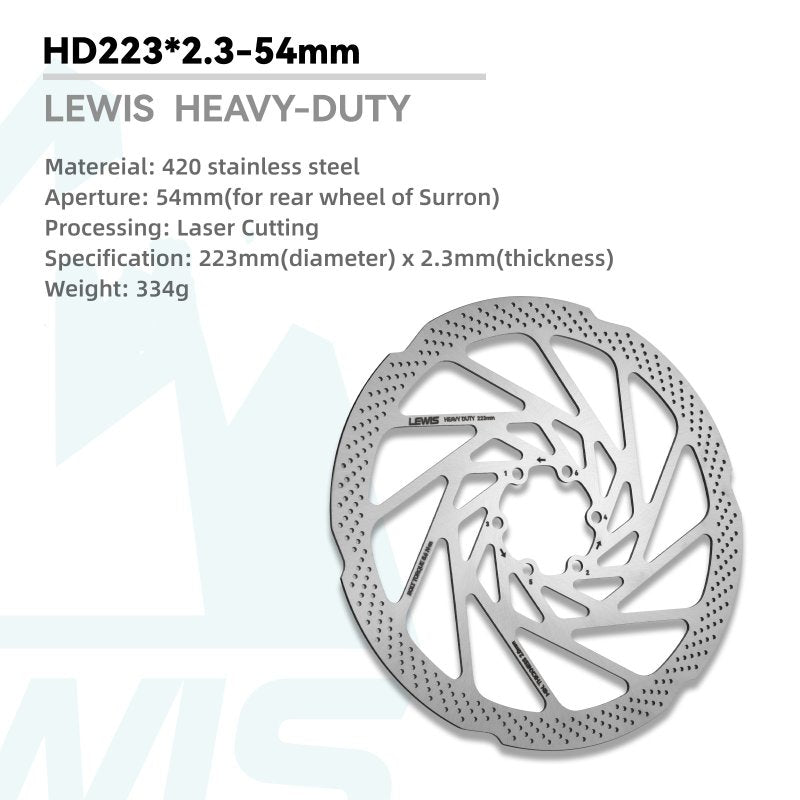

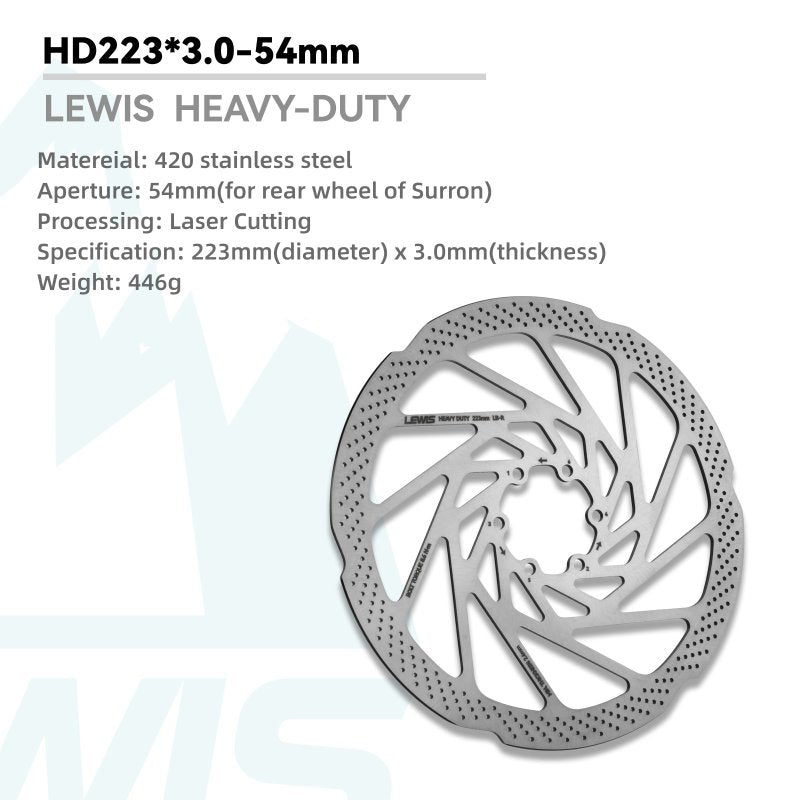

Rear Brake Rotor:

Size:  223mm x 2.3mm Thick or 223mm x 3.0mm Thick

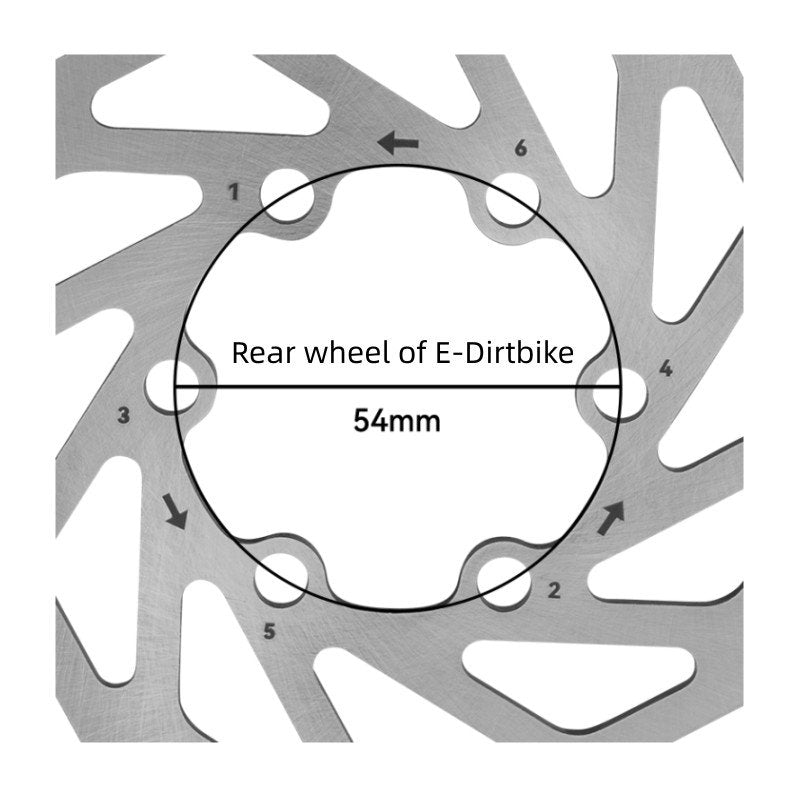

Brake Rotor Bolt Pattern: 54mm for E-Moto Front Wheel

Material: 420 stainless steel.

Laser cut and molded with high precision, low deformation and low induced stress.

The dense perforated design used in the HD rotor effectively increases the heat dissipation area of the rotors.

The 12-spoke support design, coupled with internal triangular reinforcement, increases the support strength at the fixed position of the rotor, reducing the likelihood of fastener loosening caused by rotor resonance.

The surface employs a multifaceted polishing process to ensure uniform smoothness and roughness of the rotor surface.

The edges are chamfered, and all cut surfaces are coated with electrophoretic paint. This not only prevents rust but also to some extent reduces the occurrence of injuries caused by contact with the sharp edges of the rotor, thereby enhancing the safety attributes of the rotor.

Bike Fitment for Front Brake Rotors (44mm):

• Surron LBS
• Surron LBX
• E Ride Pro S
• E Ride Pro SS 2.0
• Ventus One
• Ventus One Plus
• Rerode R1
• Rerode R1+
• Talaria MX3
• Talaria MX4
• Talaria X3
• zero XB

Bike Fitment for Rear Brake Rotors (54mm):

• Surron LBS
• Surron LBX
• E Ride Pro S
• E Ride Pro SS 2.0
• Ventus One
• Ventus One Plus
• Rerode R1
• Rerode R1+
• Zero XB
