Description

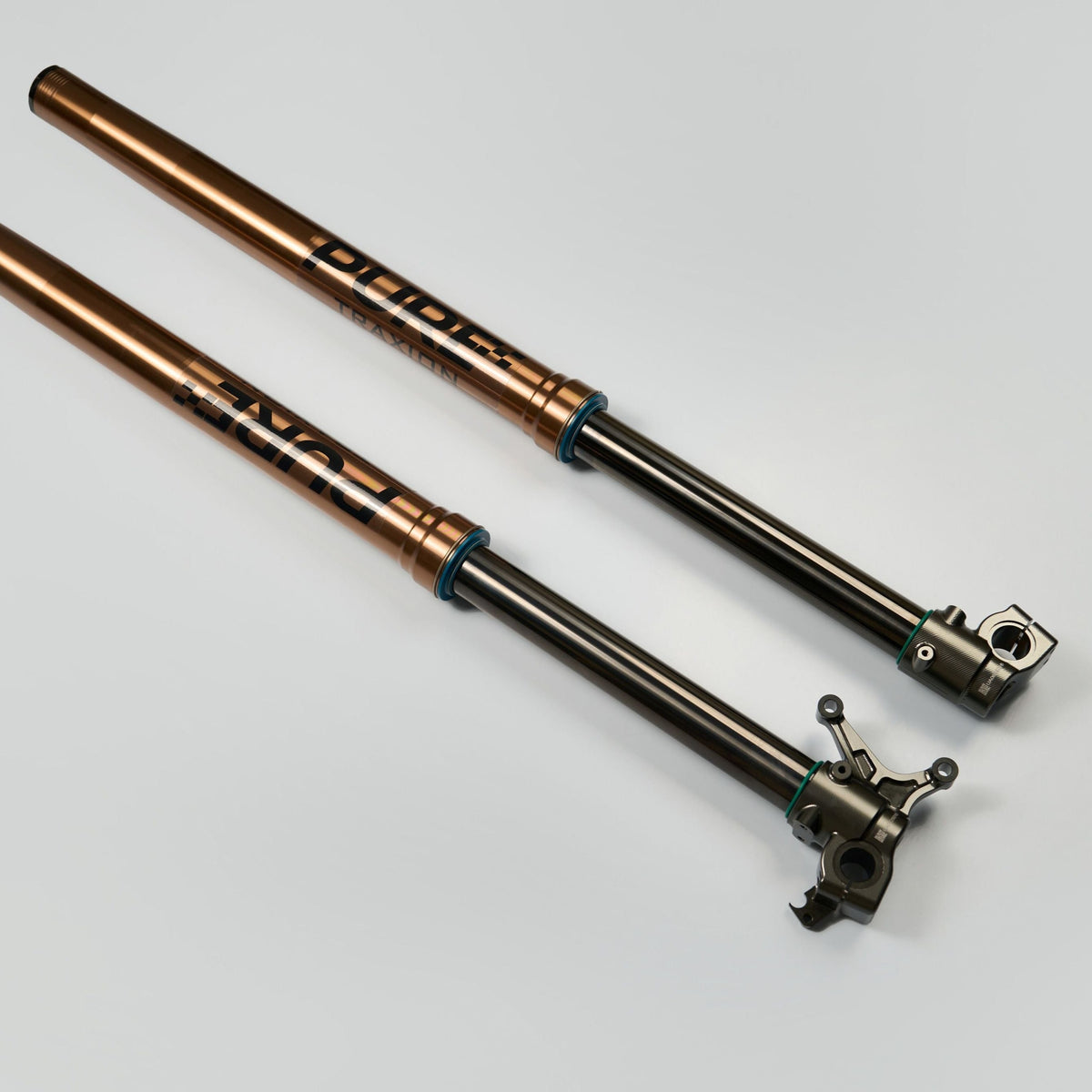

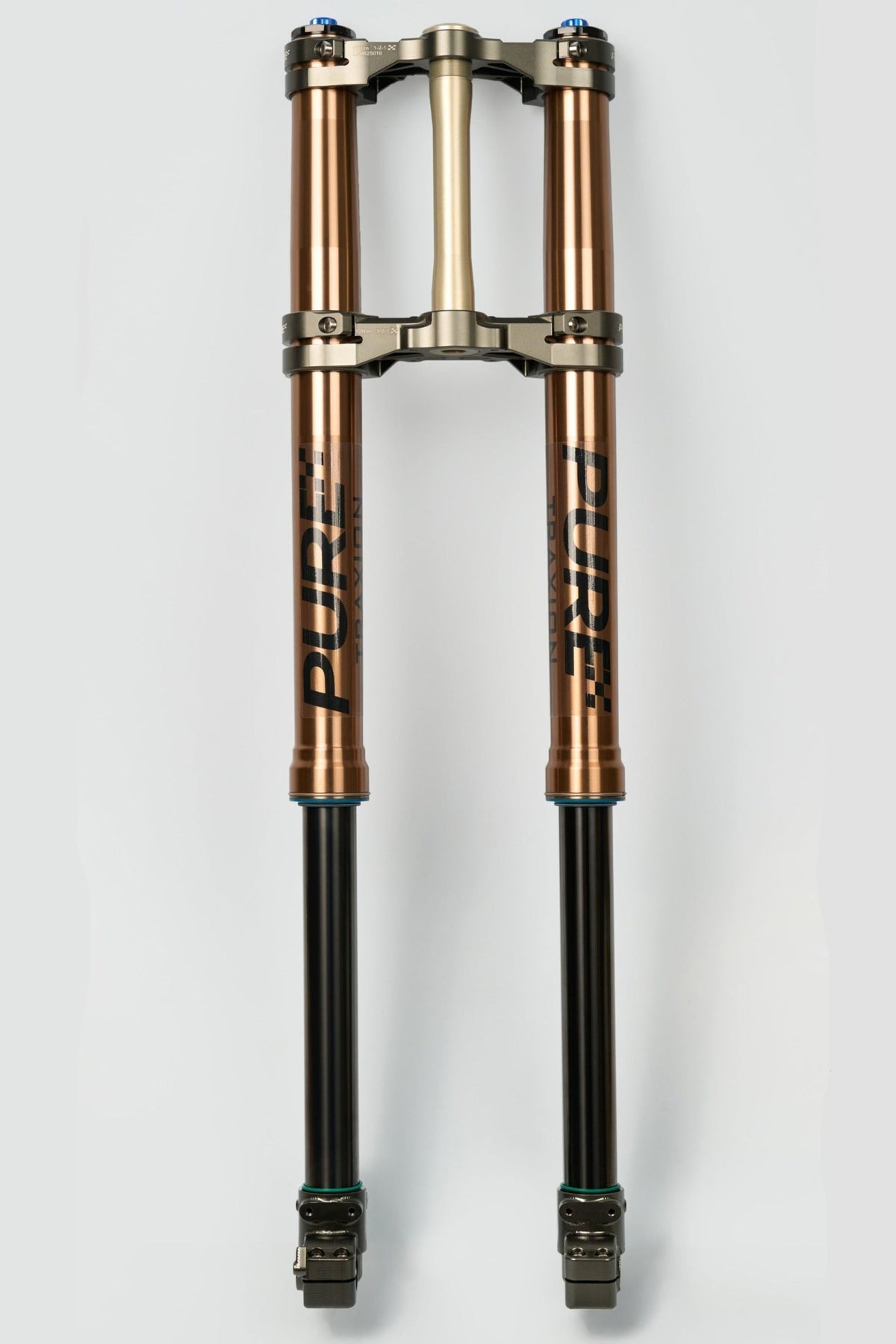

PURE Racing presents the TRAXION fork designed for Surron Ultra Bee.
Also compatible with Supermach SM01
Rider weight with stock springs:
- Trail Tune 130lbs - 175lbs( 60kg -80kg)
- MX Tune 130lbs - 220lbs (60kg - 100kg)
Tuning and performance specifications:
- Internal preload adjustment on both legs.
- External 24 click, compression and rebound adjustment.
- Hydraulic bottom out on both legs.
- 5 Spring weight tuning possibilities. (sold separately)
- 2 Valve tunes Trail & MX
Material and design specifications:

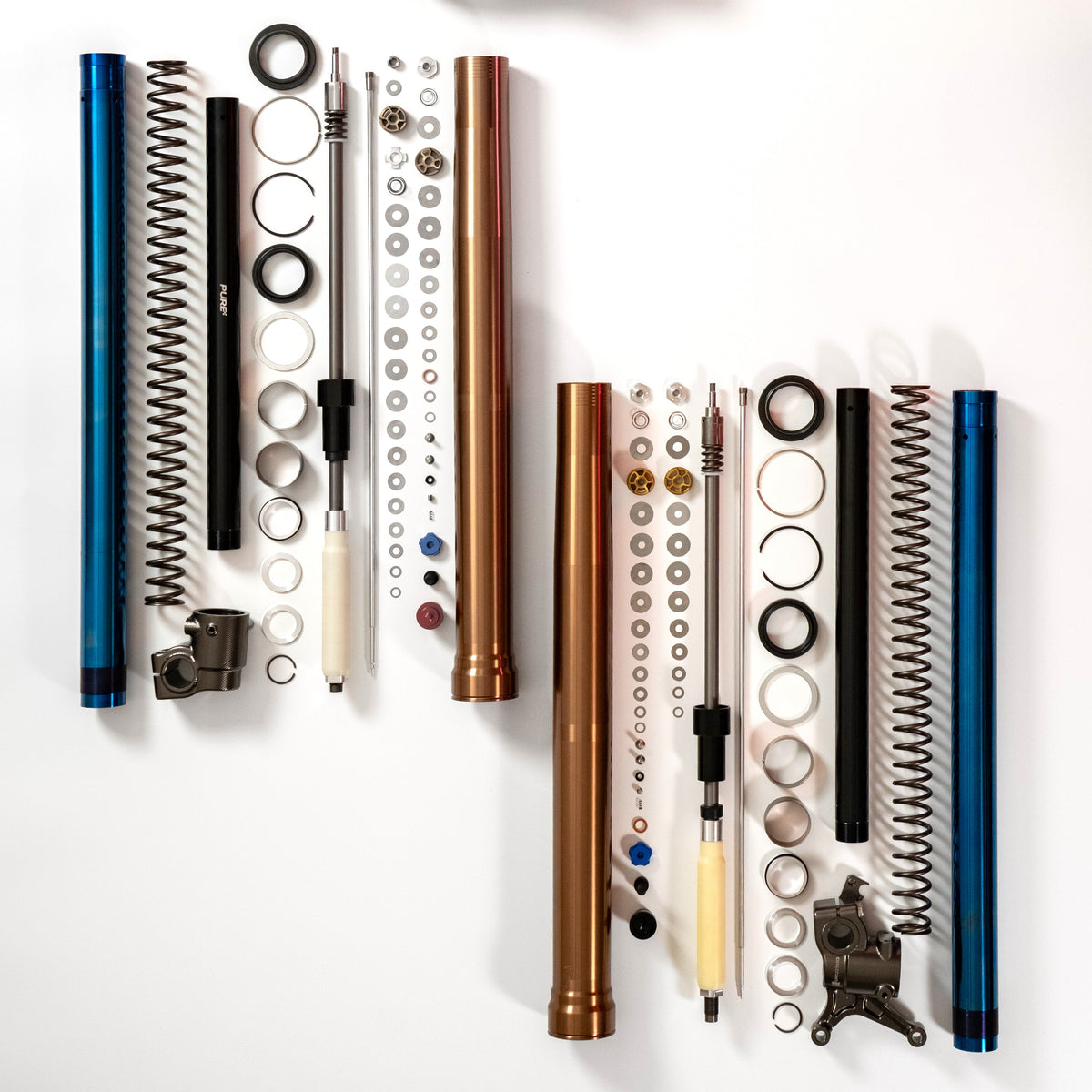

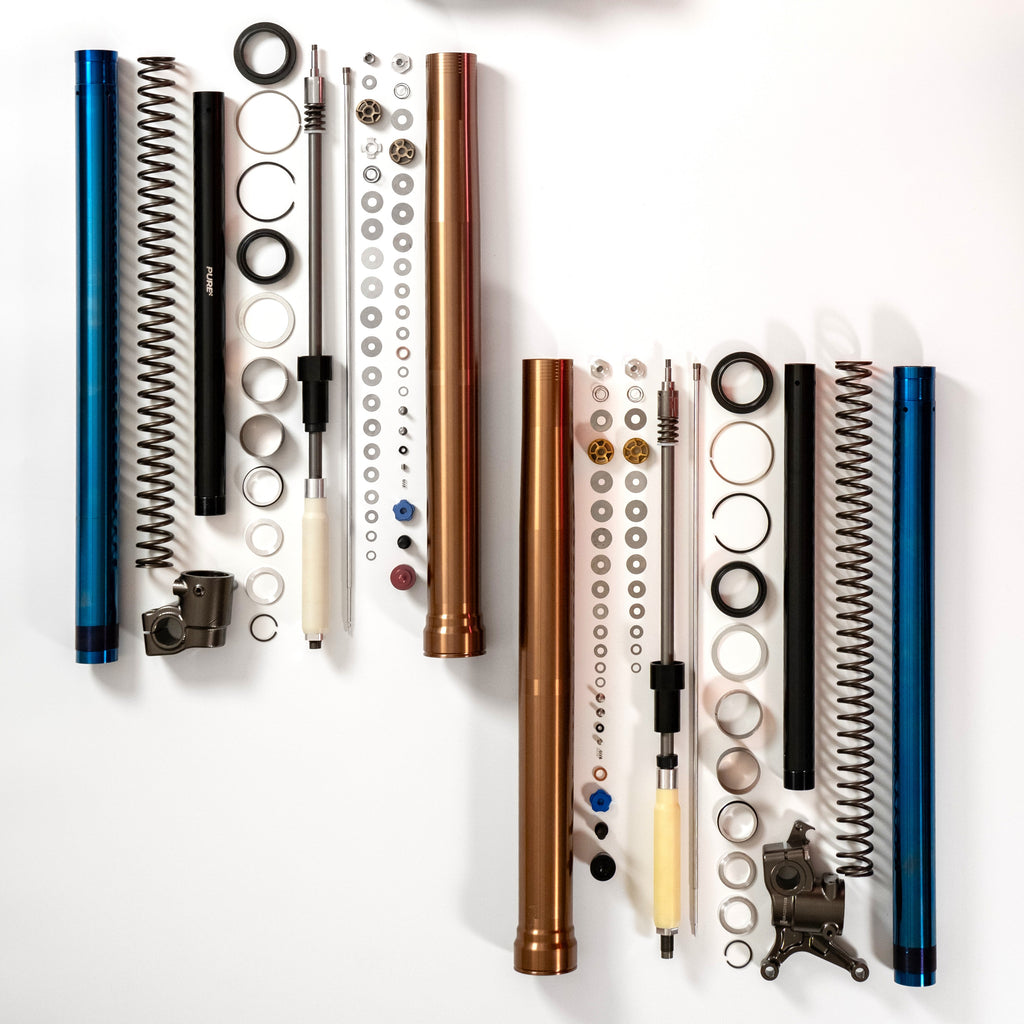

- 3D Printed Waffle Piston located in upper and lower chambers of the internal cartridges, both for compression and rebound legs.
- Precision-honed inner cylinders (±0.01 mm tolerance) ensure ultra-smooth damping and superior traction.
- Custom oil and dust seals balances sealing performance with minimal friction, delivering consistent oil flow over tens of thousands of cycles.
- Advanced fluid dynamics optimize damping response—progressive, silent, and controlled.
- Link plate structure enhanced through FEM analysis ensures high rigidity, fatigue resistance, and weight-optimized strength.
IN THE BOX:

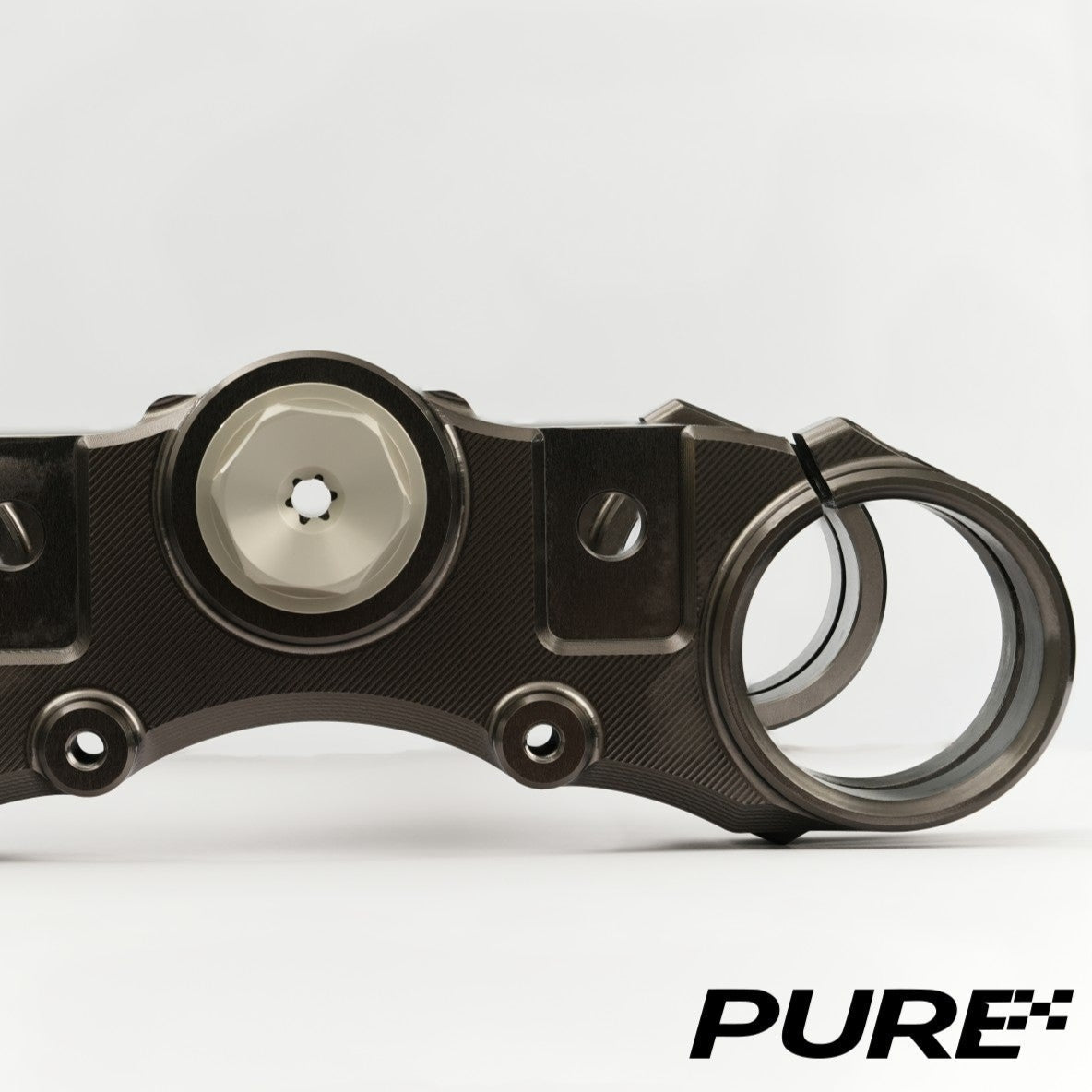

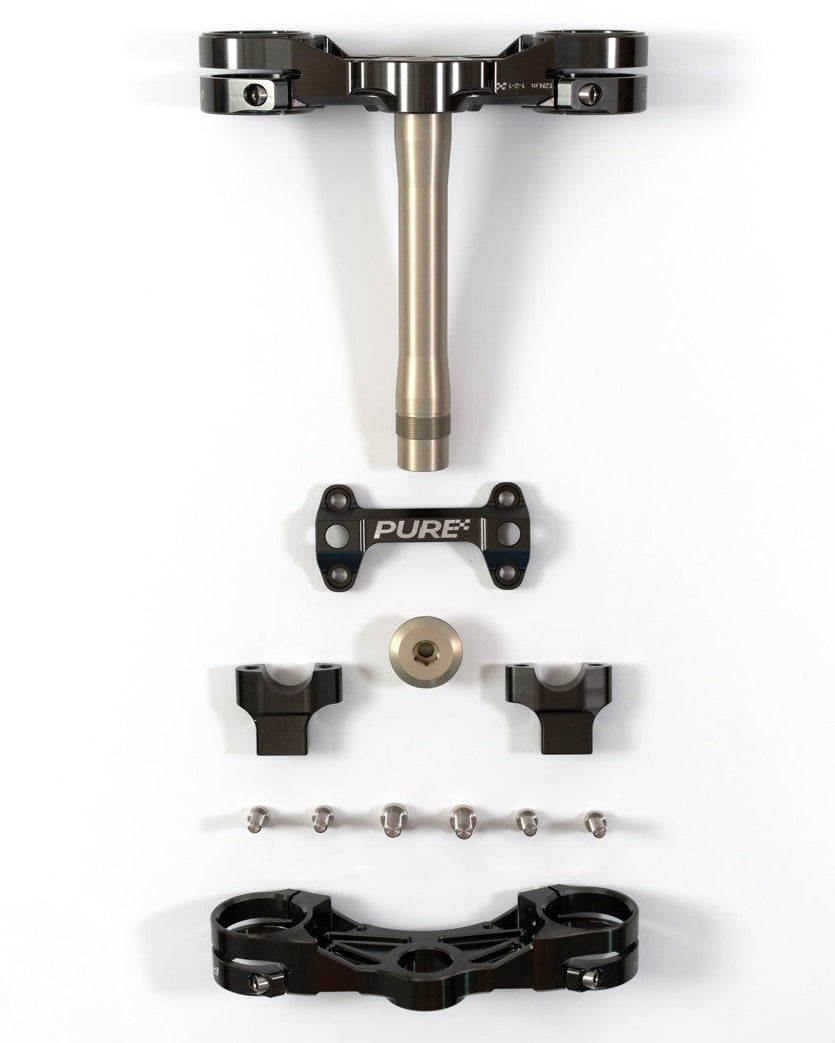

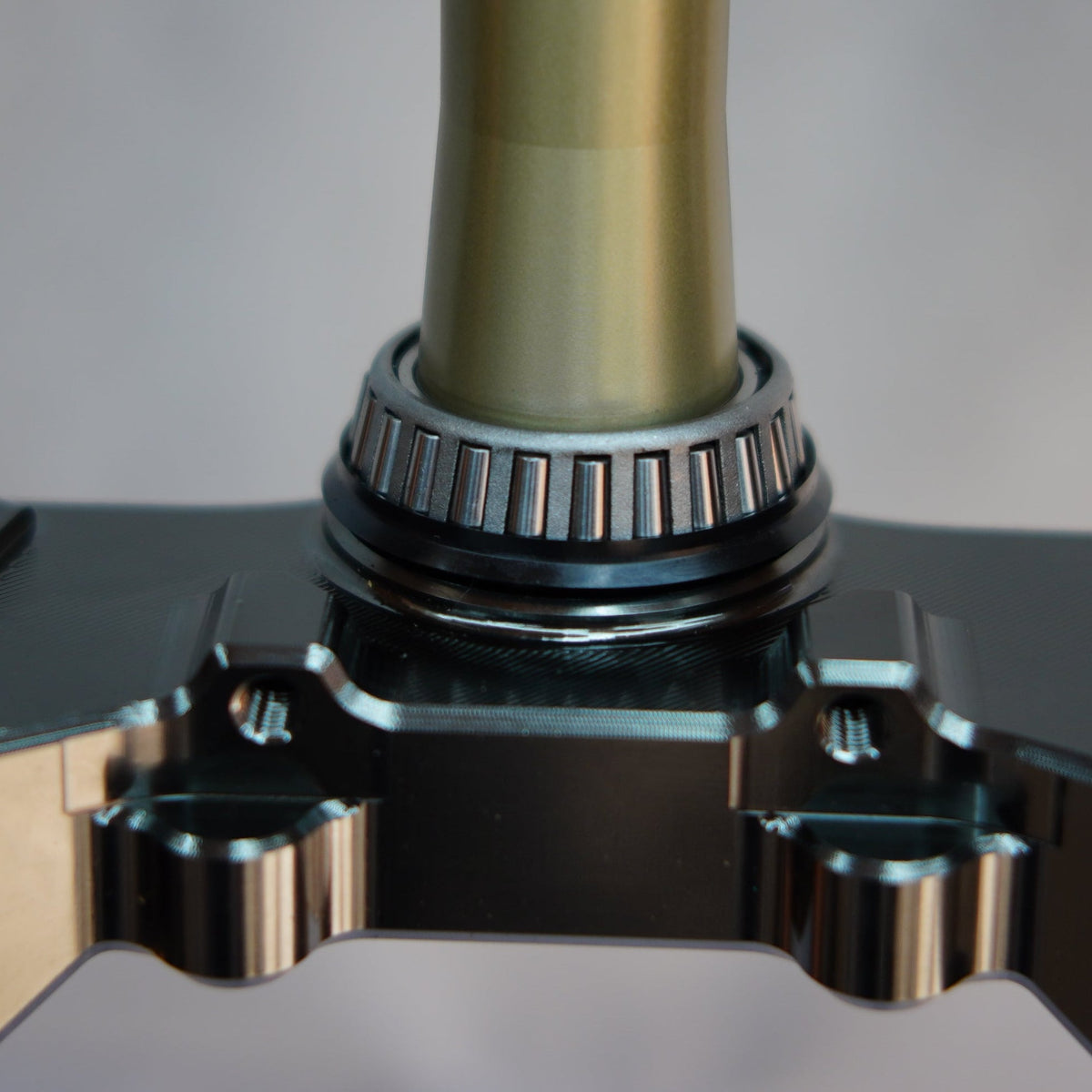

Included is Fork, CNC Crown, CNC Stem and lower bearing pre Installed, headset spacers.
Not Included, Stanchion guards, Surron ultra guards can be reused.
TECHNICAL SPECIFICATIONS:
NAME: TRAXION

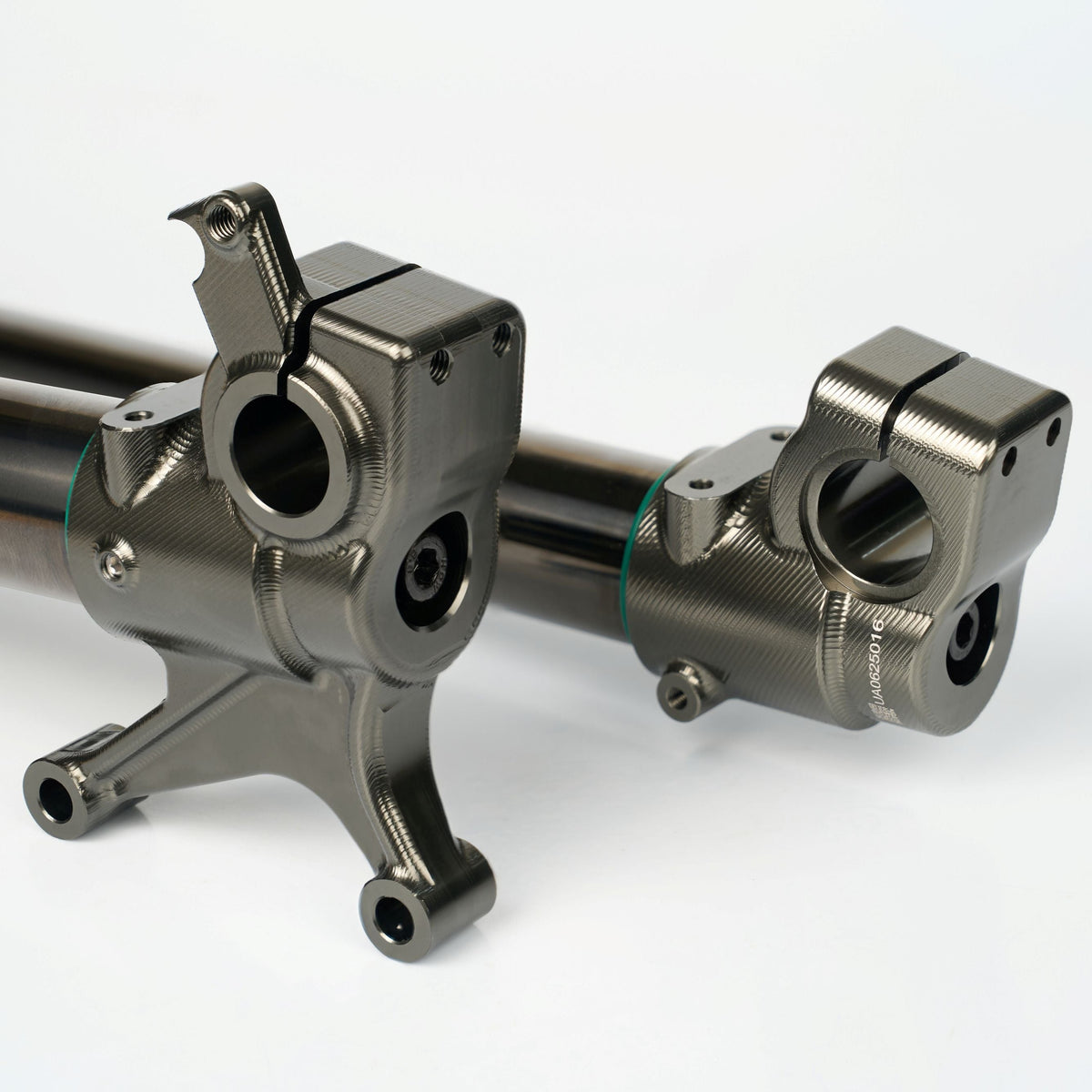

DROPOUTS: Surron Ultra Bee

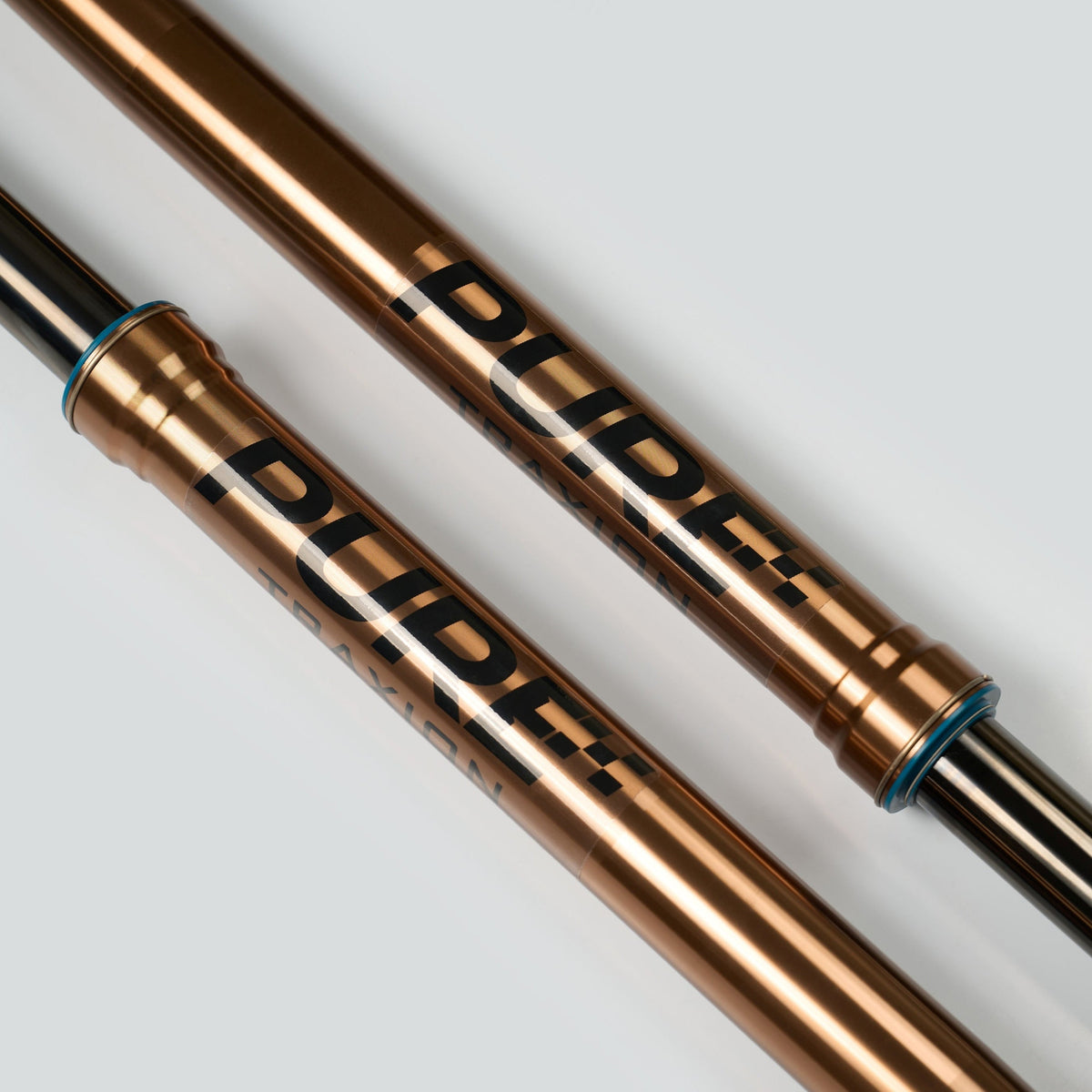

TUBE DIAMETER: Inner 38mm/ Outer 50mm
TRAVEL: 260mm / EXTENDED LENGTH: 850mm

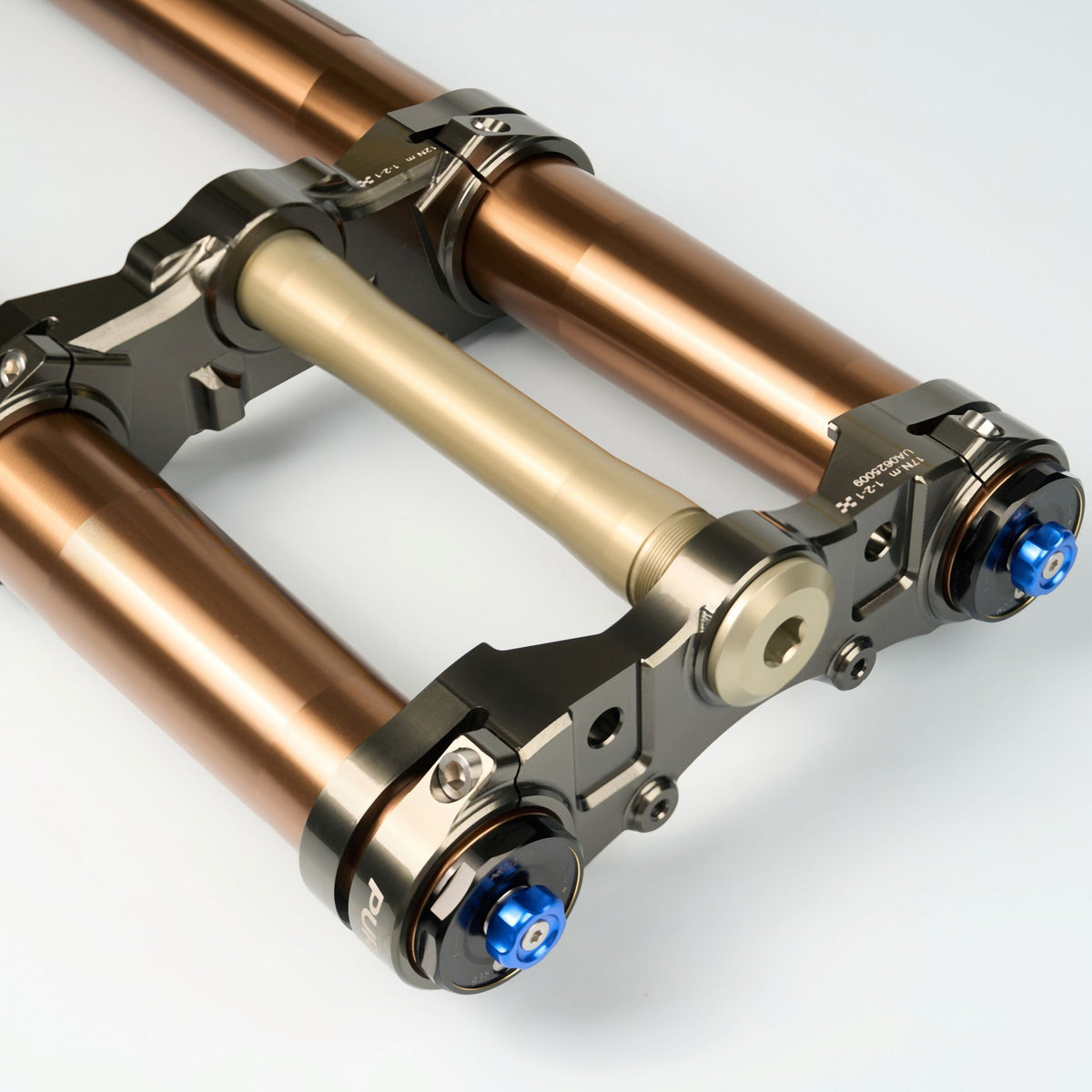

CROWN, STEM & DROPOUTS: Billet Aluminium, anodized coating

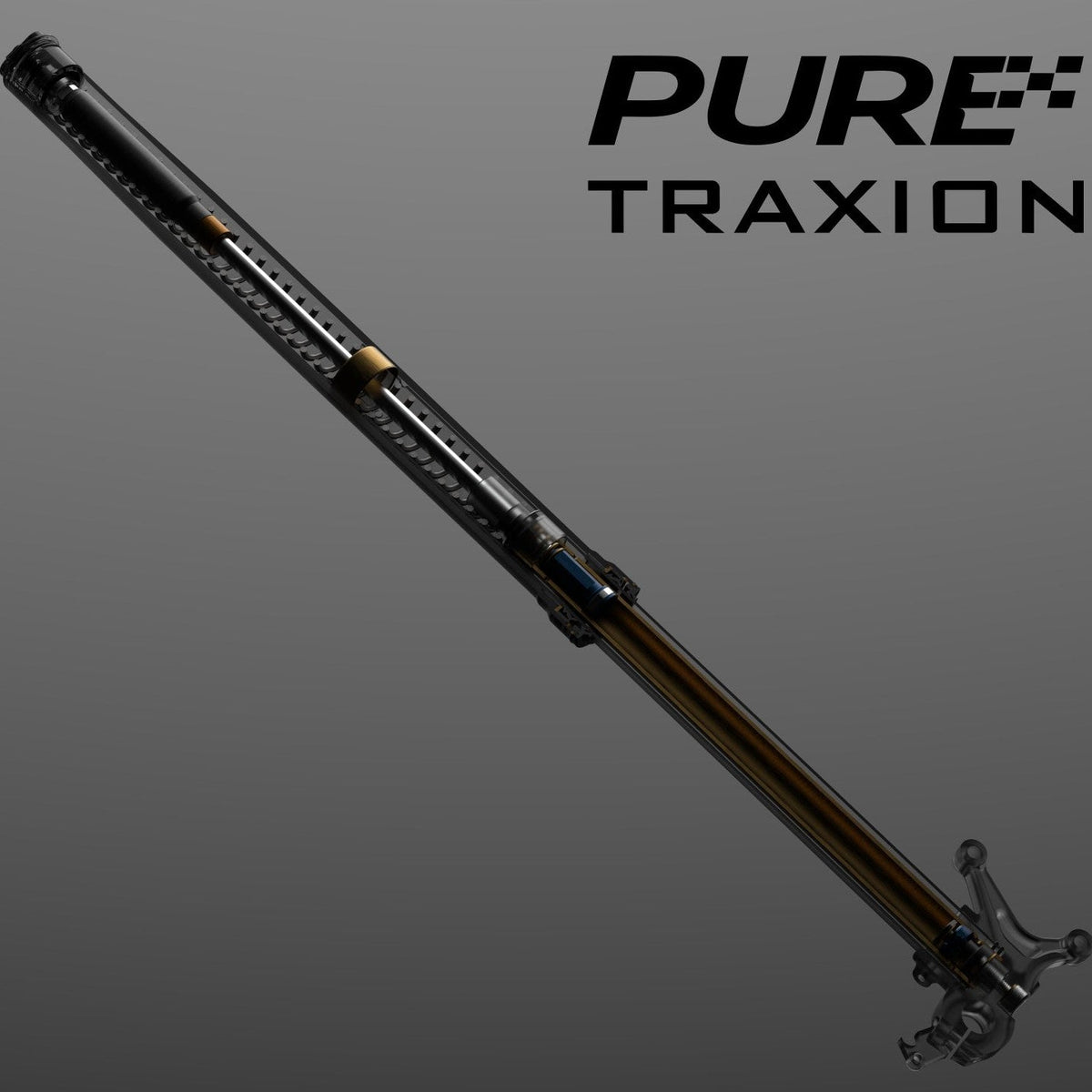

DAMPER: Dual sealed closed cartridges, dual-spring
RIDER WEIGHT OPTIONS: Light and Medium(TR)/Medium and Heavy (MX)
COMPRESSION & REBOUND DAMPING: 24-stage adjustable
WEIGHT: 9.8kg complete fork with crown and handlebar stem
