Description

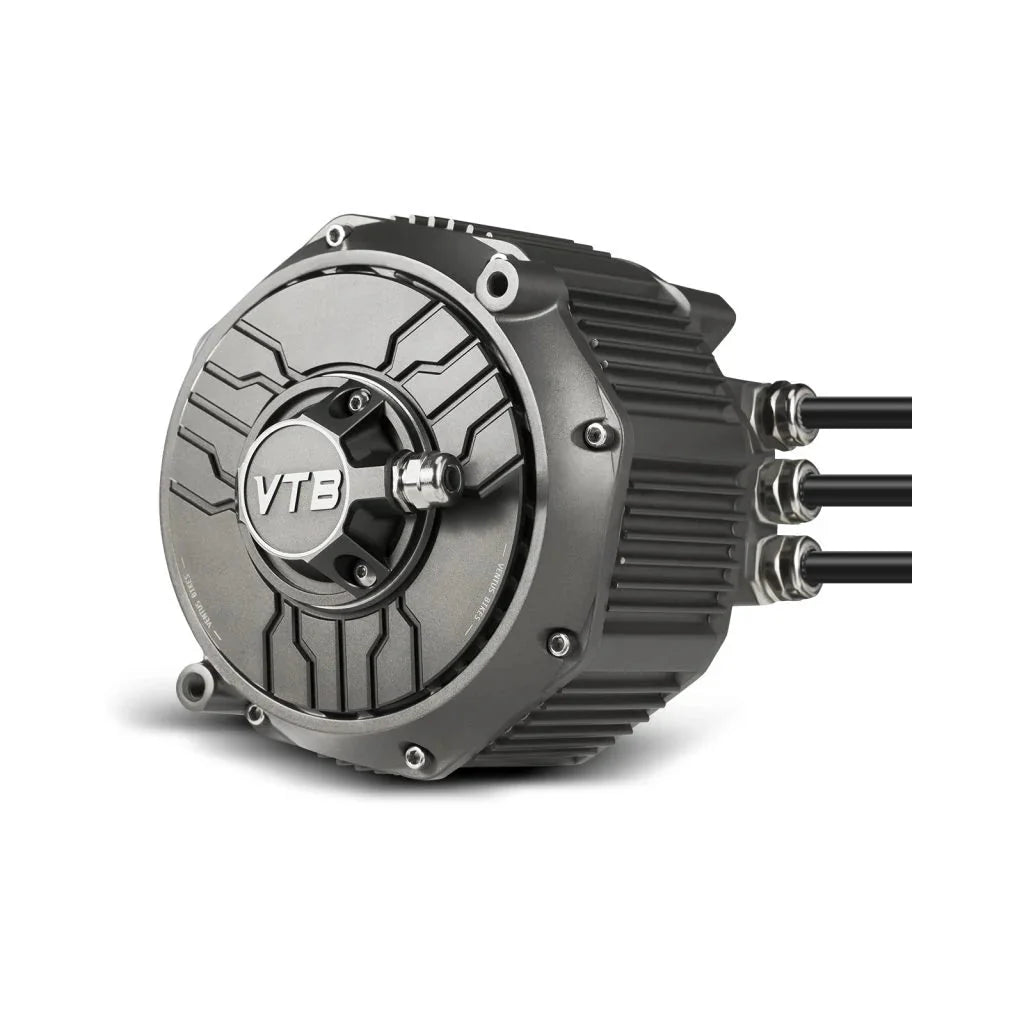

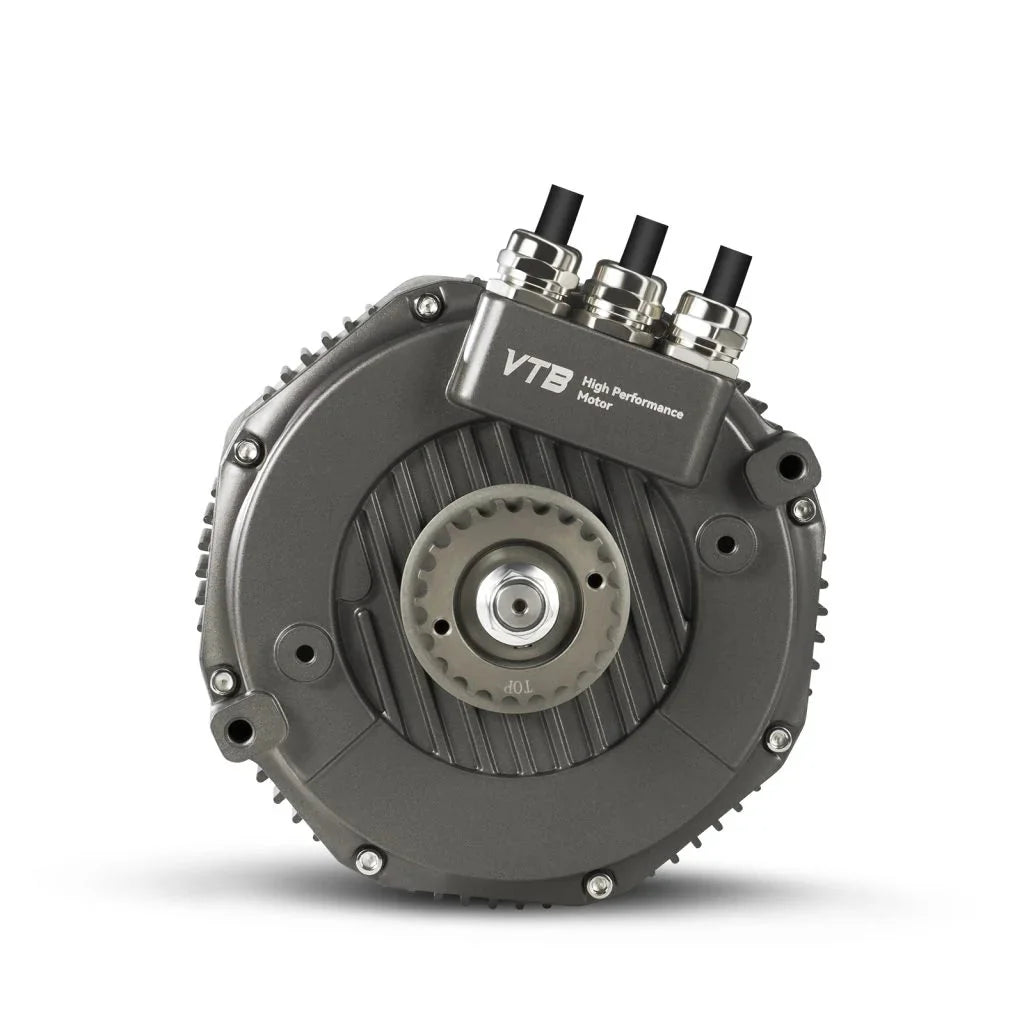

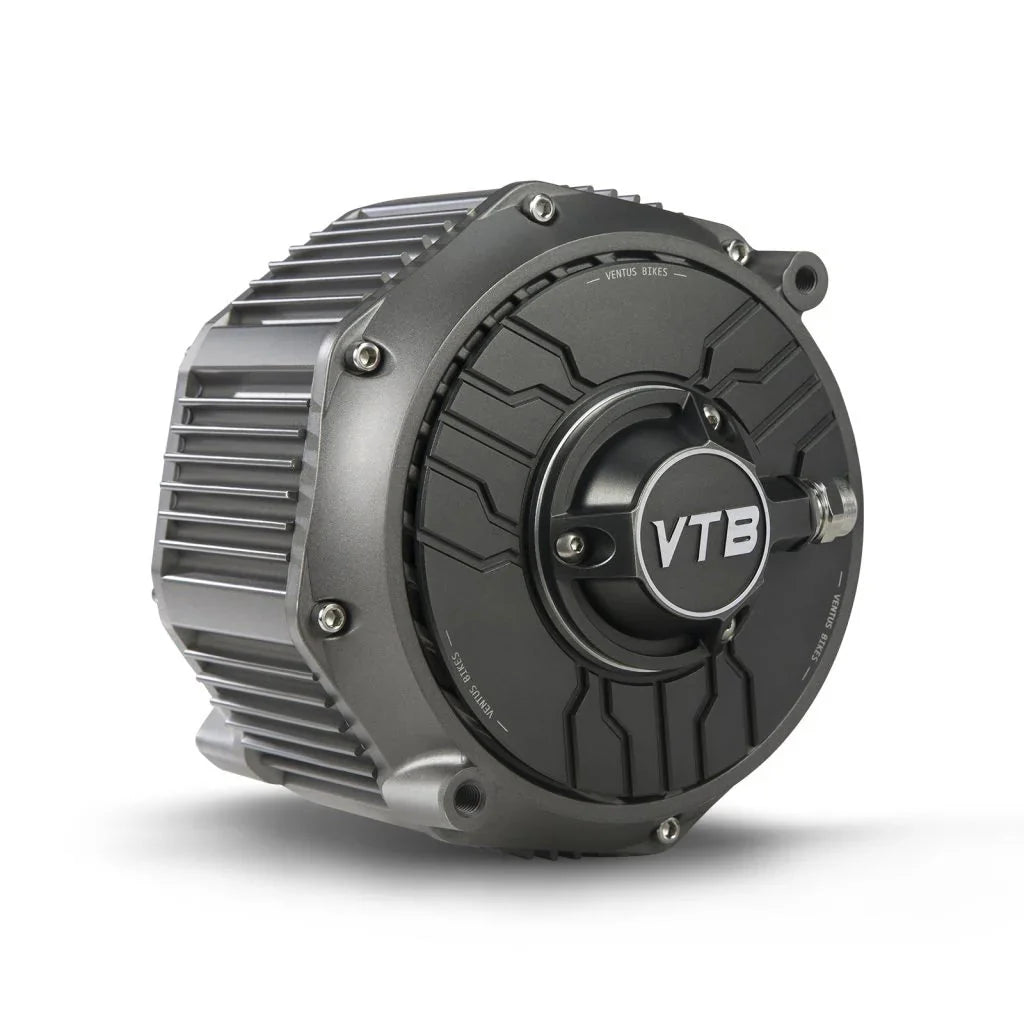

The VTB Beast motor is designed to increase the performance of light e-motos. Paired with a VTB V9600 controller and a high-output battery, it transforms a light e-moto into a 28 kW powerhouse.
Fitment
- Surron Light Bee
- Talaria XXX
- Eride Pro SS, 2.0, & 3.0
- 79 Bike Falcon M, Pro, & GT
- Rerode R1 & R1+
Key Specifications
- Max Torque: 62 N·m
- Max Stable Rotor RPM: 9500 RPM
- Peak Power: 28 kW
- Max Efficiency: ≥95%
- Working Voltage: 48–100 V
- KV Value: 75 KV
- Motor Temperature: 130°C start limiting, 150°C power cut
- Max Phase Current: 850 A
- Number of Pole Pairs: 5
- Phase Wire Terminal: SC35-6
- Waterproof Rating: IP67
- Air Gap: Leading 0.5 mm rotor air gap empowers torque to 62 N·m
- Sensing Method: ABZ + PWM encoder, 1024 pulses at 240 Hz output frequency
- Temperature Sensor: NTC 10k thermistors
- Shaft: High-strength 40CrMoTi steel alloy
- Rotor: IPM (Internal Permanent Magnet) rotor for high power density
- Bearings: Sealed bearings with excellent shock absorption and durability
- Lamination: High magnetic force stator laminations reduce eddy-current loss
- Stator Winding: VPI (Vacuum Pressure Impregnation) technique insulates and protects windings
- Sensor Terminal: Nylon M12 circular connector for V9600 controller and 8-pin square sensor terminals for high waterproofing
Specifications
- Stator Size: 130 × 180 mm
- Weight: 10.9 kg
- Color: Iron Gray
Further Description
Encoder Connector
The VTB Beast motor is designed with circular connectors using IMD (In-Mold Decoration) for easy integration with other VTB products. This provides IP67 waterproofing. Square-shape connectors are also included for separate motor use, though they carry a slightly higher risk of water ingress due to partial PVC coverage.
Sensing Method
Two types of sensors are typically used: Hall sensors and encoders. Hall sensors are widely compatible but have slower speed feedback and throttle response under challenging conditions. Encoders, used in VTB motors, provide premium feedback, precision, and control, ideal for riders performing wheelies or requiring high control accuracy.
