The E39 fork is engineered to enhance the performance of lightweight E-Motos.
It is compatible with Surron Light Bee X/S, Talaria Sting MX3/4, and E-Ride Pro S/SS 2.0 models. For Talaria MX5 models you will need a MX5 Brake Adapter
MOTORCYCLE DESIGN
- 39mm stanchions and an upside-down, dual-crown design provide support and precise steering without flexing under heavy impacts.
- Dual coil spring and hydraulic dampers, designed and tuned for the weight and speed of lightweight E-Motos.
PERFORMANCE & ADJUSTABILITY
- 230mm travel with easy-to-use high/low-speed compression and rebound adjustments.
- Factory-tuned for average weight riders of 60-80kgs and all-round riding using a medium spring rate.
- Five different spring combinations are available to cater for all rider weights and types of riding.
COMPATIBILITY

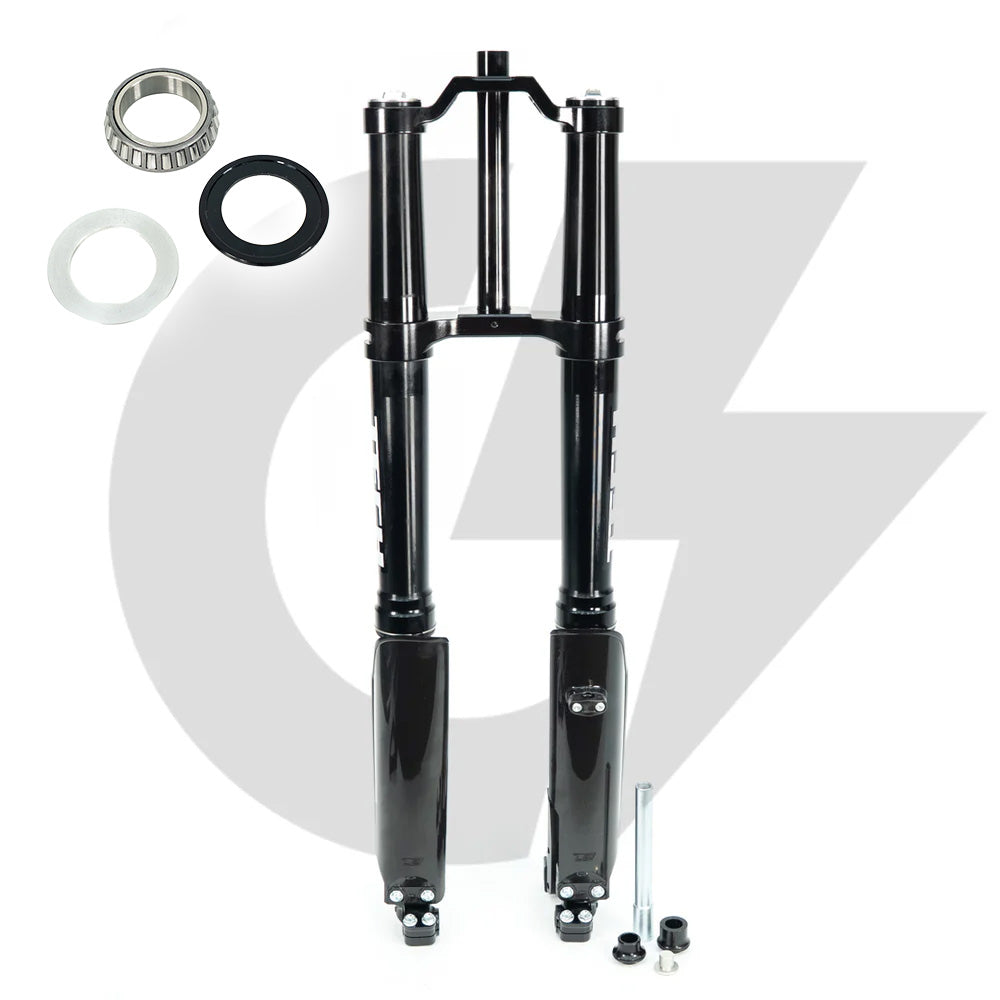

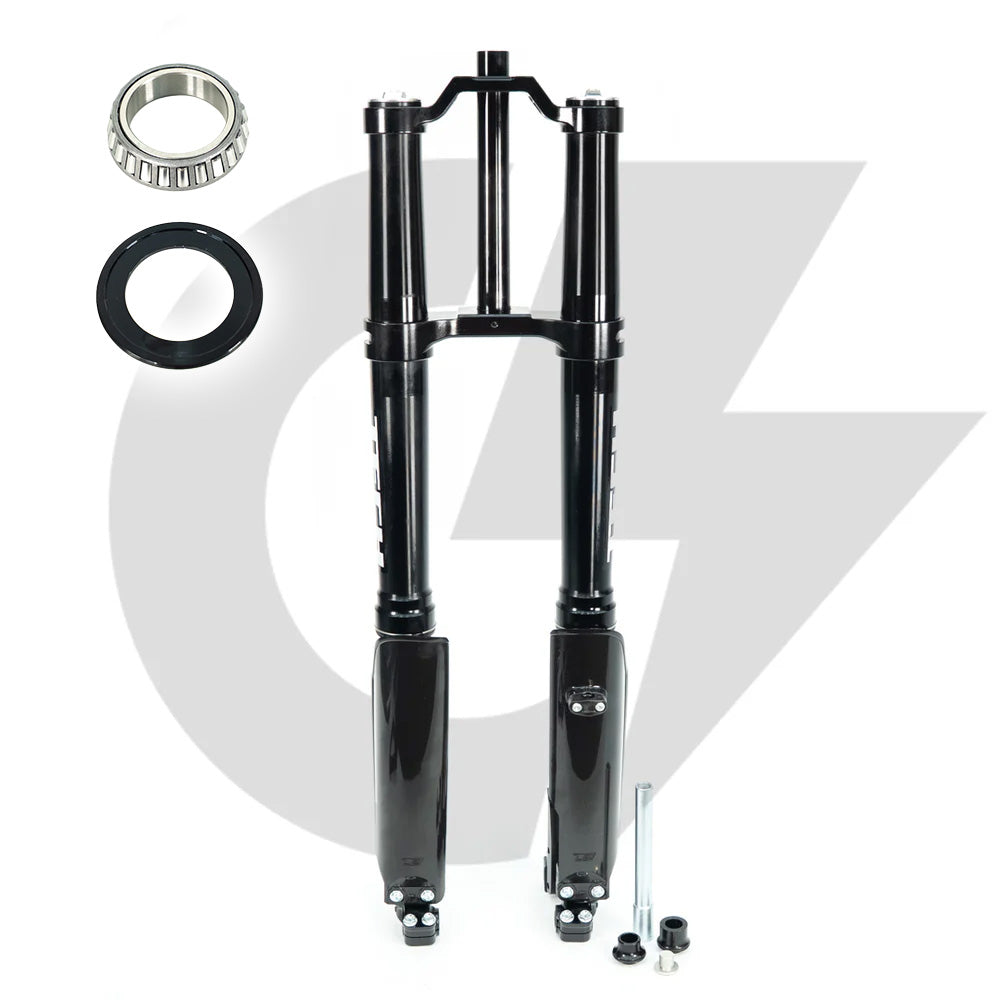

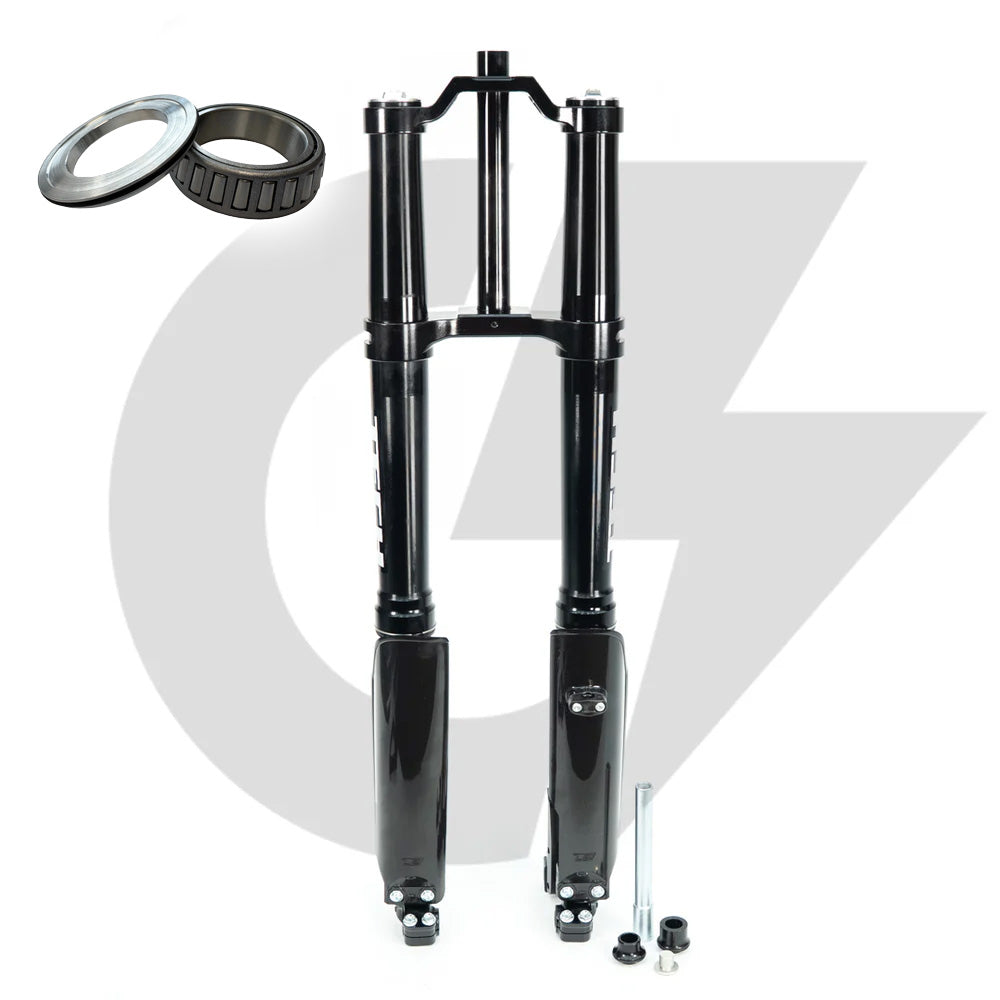

- Includes triple clamps, axle, and wheel spacer for direct installation on all lightweight E-Moto brands.
- Standard drop crown supports 21″ wheels; flat crown option available for 19″ wheels.
- PM6 caliper mount supports 160-220mm brake discs; adapter available for up to 230mm discs.
DURABILITY
- Anodized aluminum outer tubes and hard-chrome-treated steel stanchions resist wear in demanding conditions.
- Low-friction bushings, heavy-duty seals, and premium oil ensure consistent performance.
- Plastic fork guards included for stanchion protection.
Technical specifications
Stanchion Tubes: 39mm diameter Hard Plated Chromoly Steel
External adjustment: Rebound + compression
Overall Length: 770 mm
Axle to Crown: +/- 635mm
Stroke: 230mm
Weight: 14.8lbs
Stanchion tubes: titanium black coating
Prototype Version Seen in our testing:
Compatible with:
- TALARIA STING MX3
- TALARIA STING MX4
-
TALARIA STING XXX
-
SURRON LIGHT BEE S
- SURRON LIGHT BEE X
- E RIDE PRO S
- E RIDE PRO SS
- E RIDE PRO SS 2.0
- 79 BIKE
- Mantis
- Mantis X
- Ventus One +
- Ventus One
- Zero XB
- Rerode R1
- Rerode Ewatt 2.0
