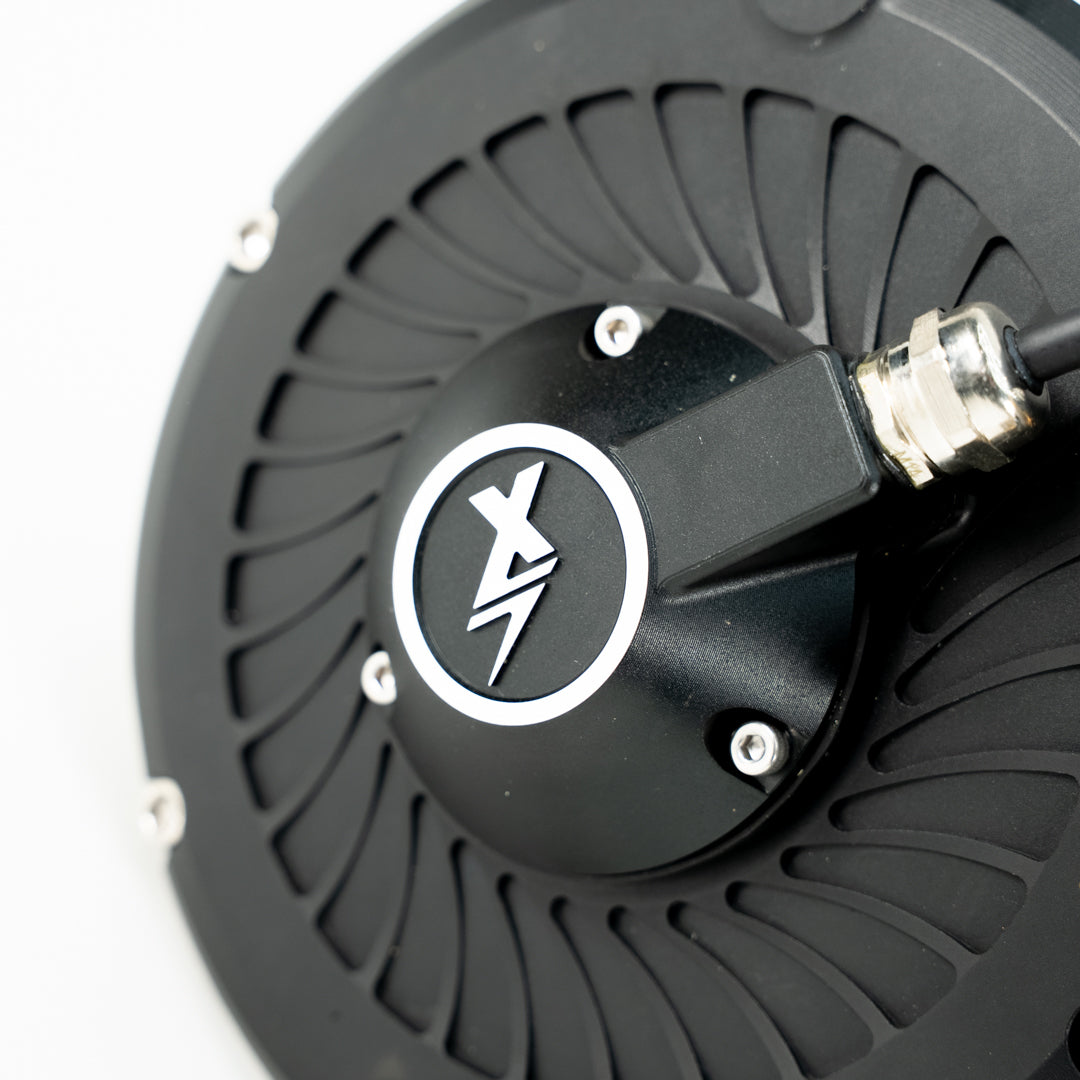

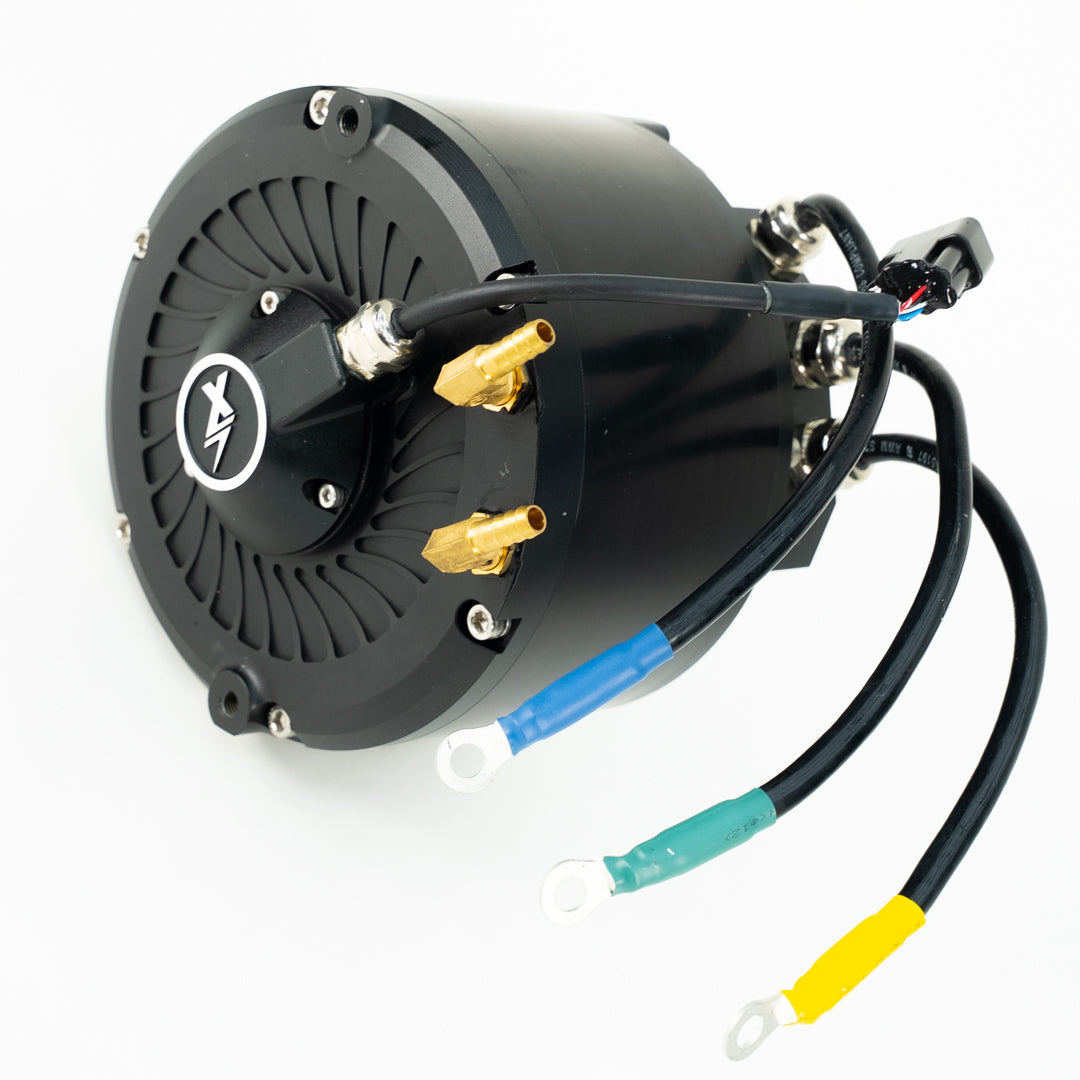

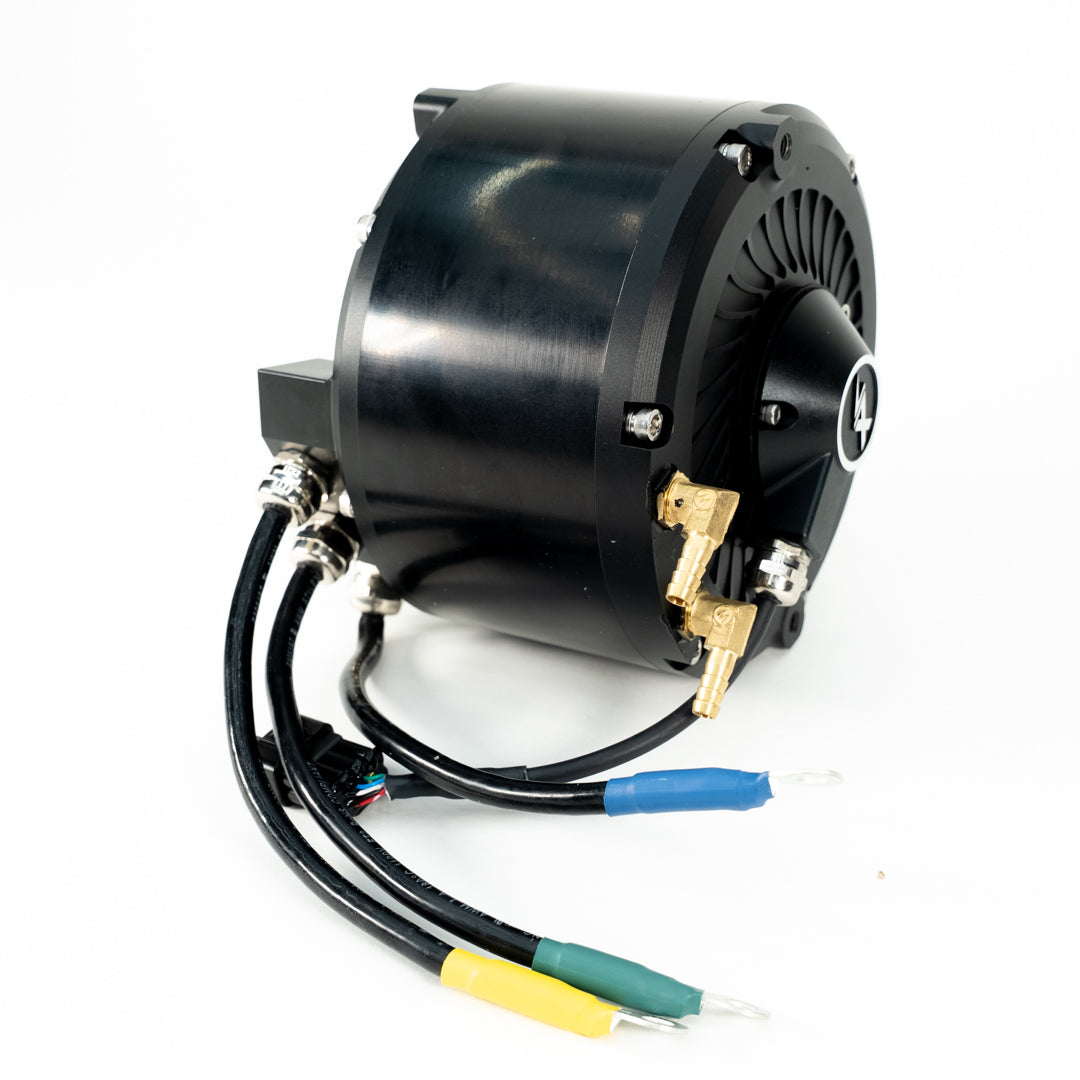

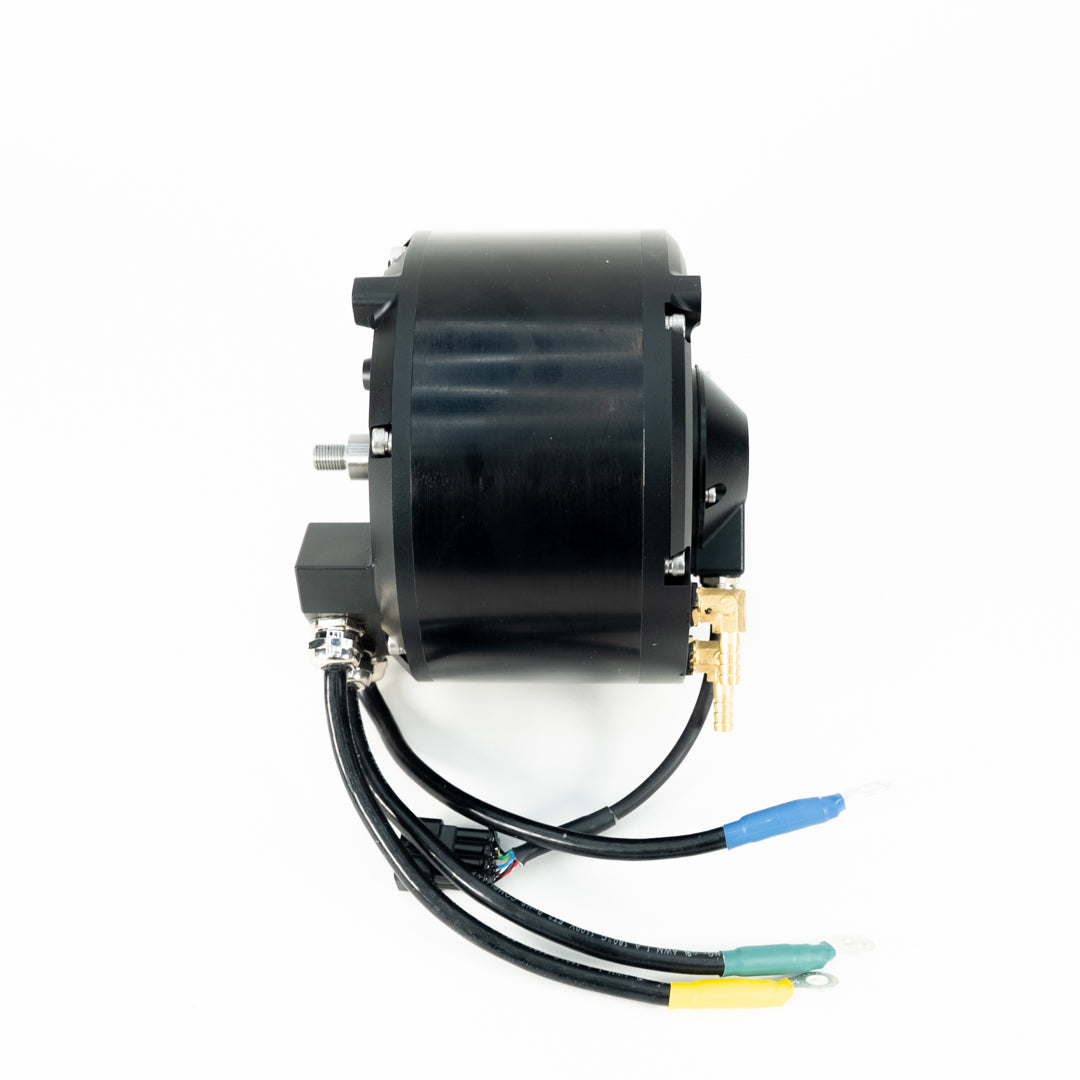

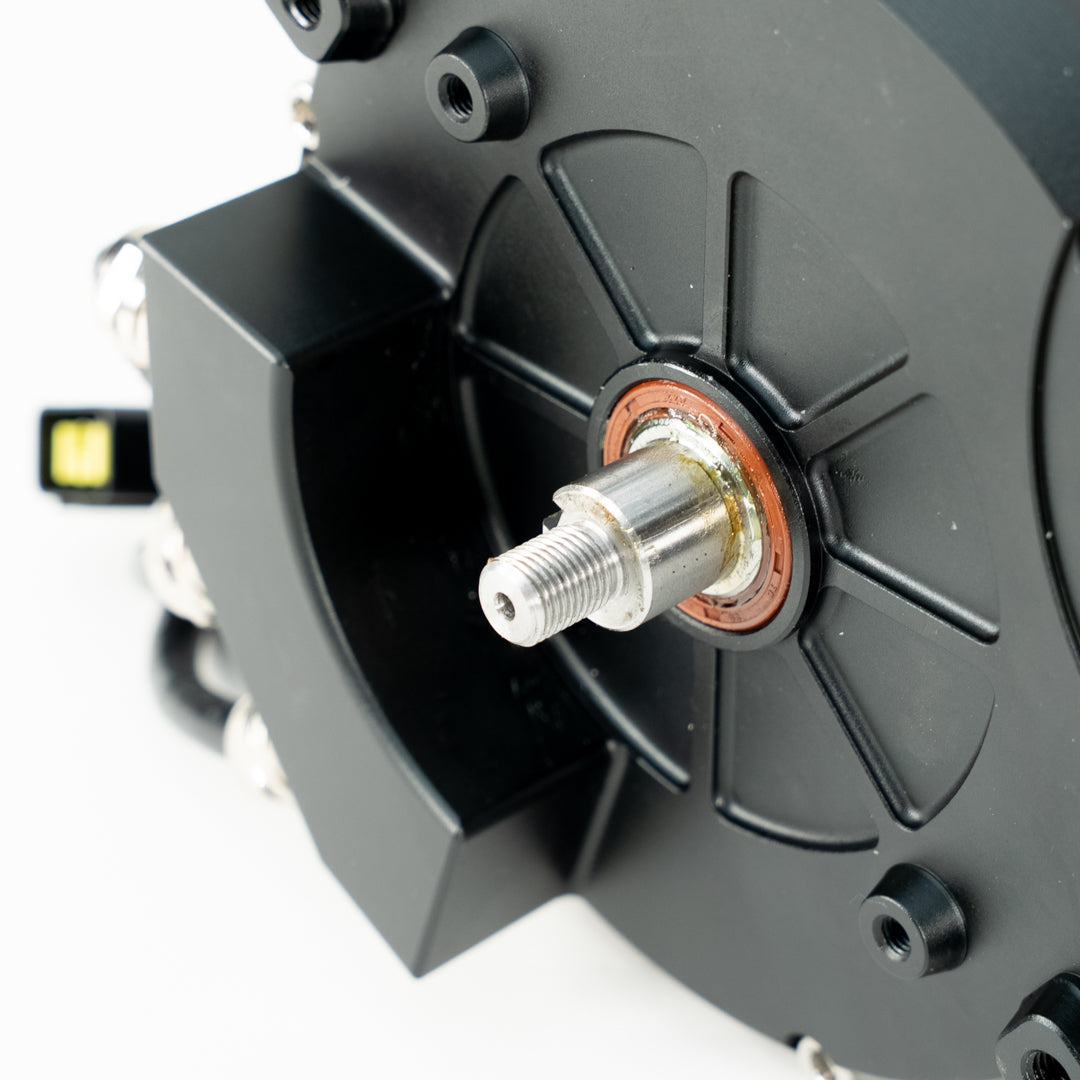

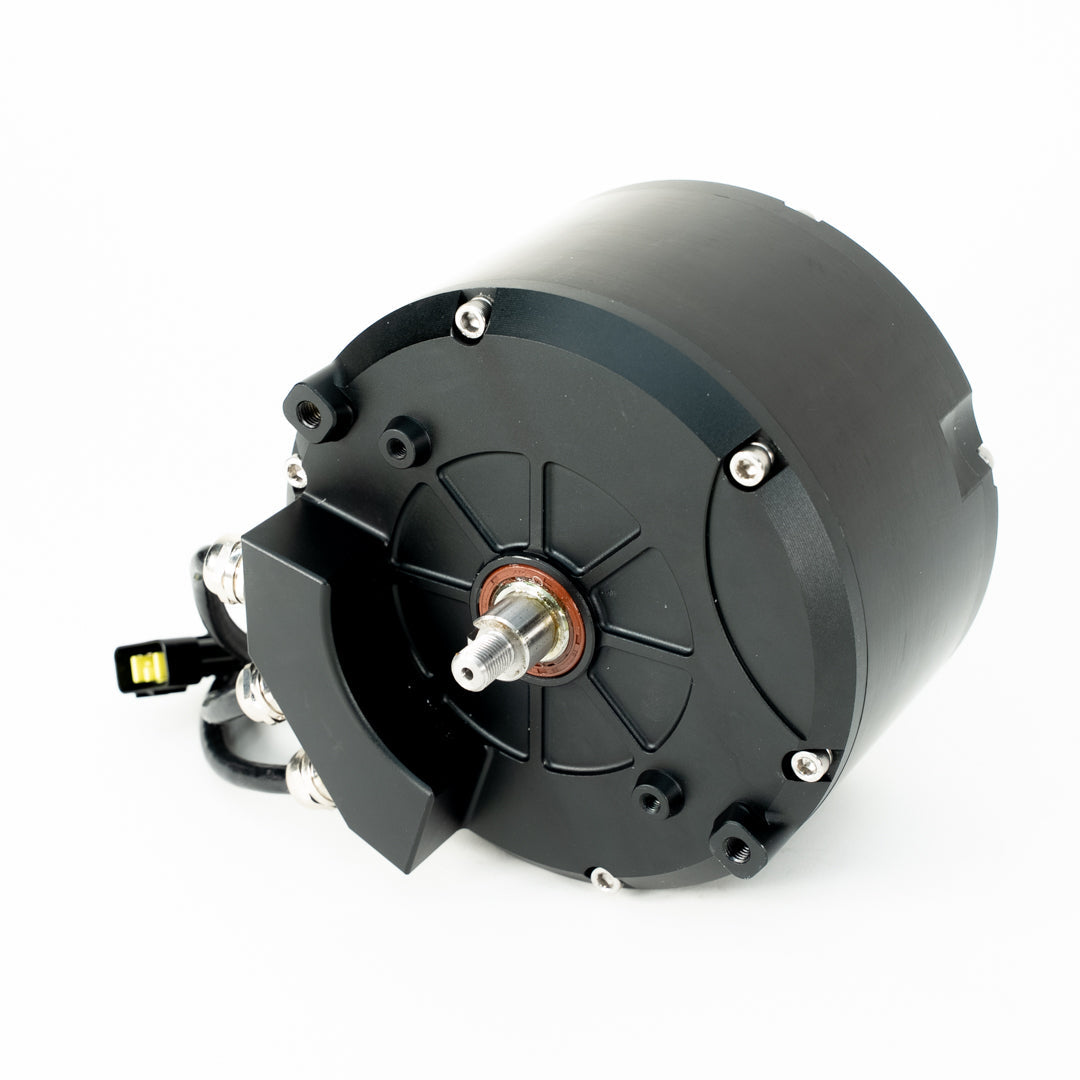

EBMX XLB-60 Water-Cooled Motor (Limited Edition)

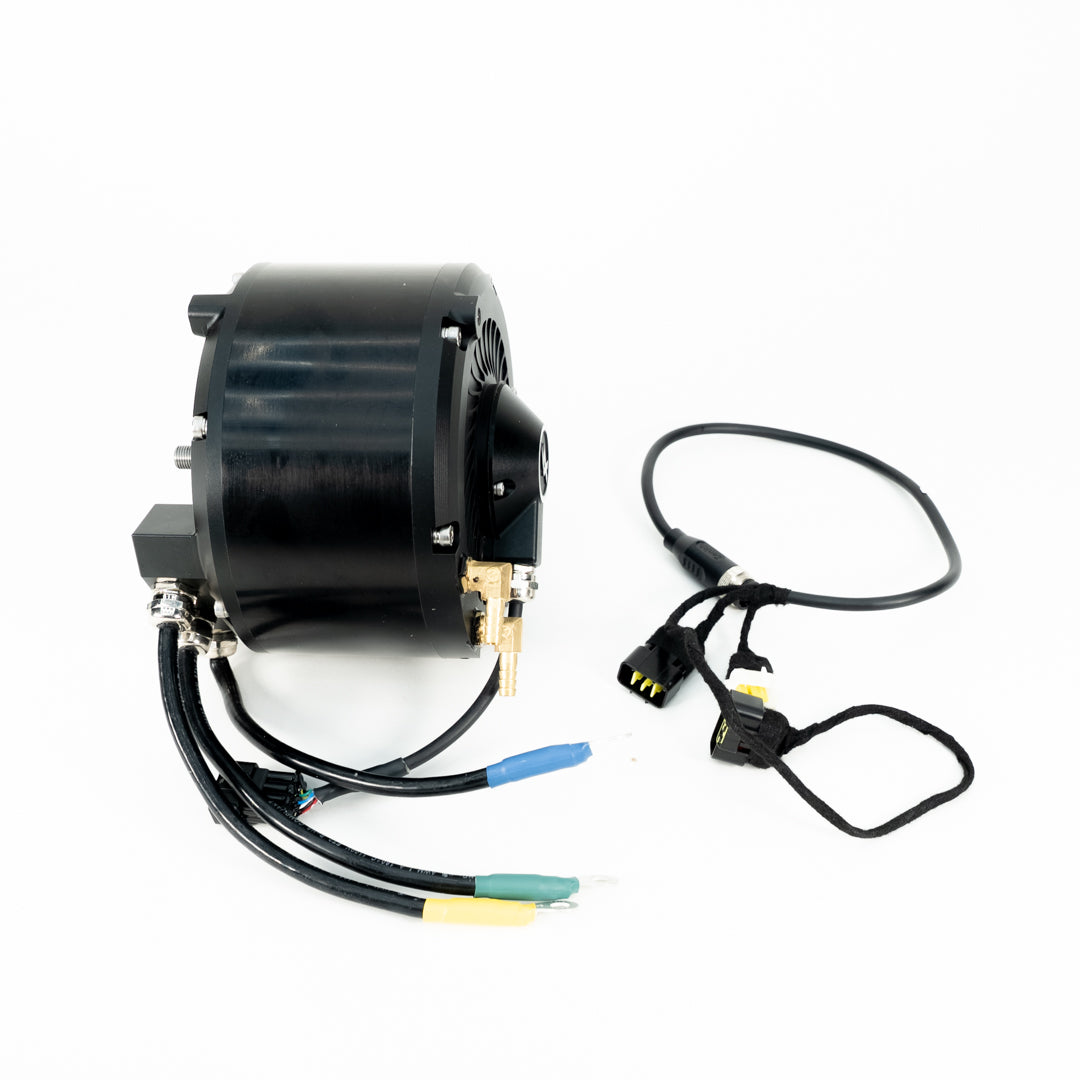

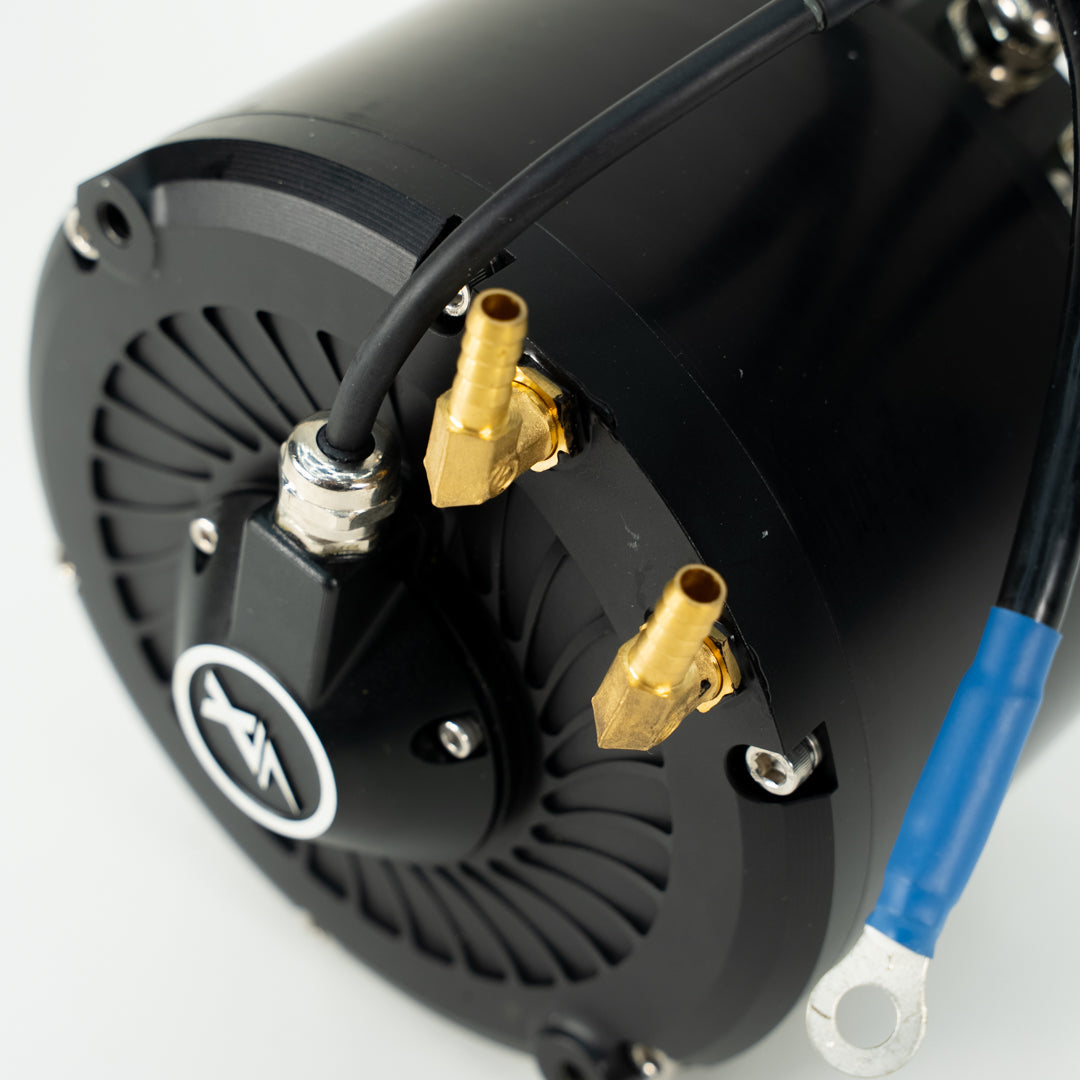

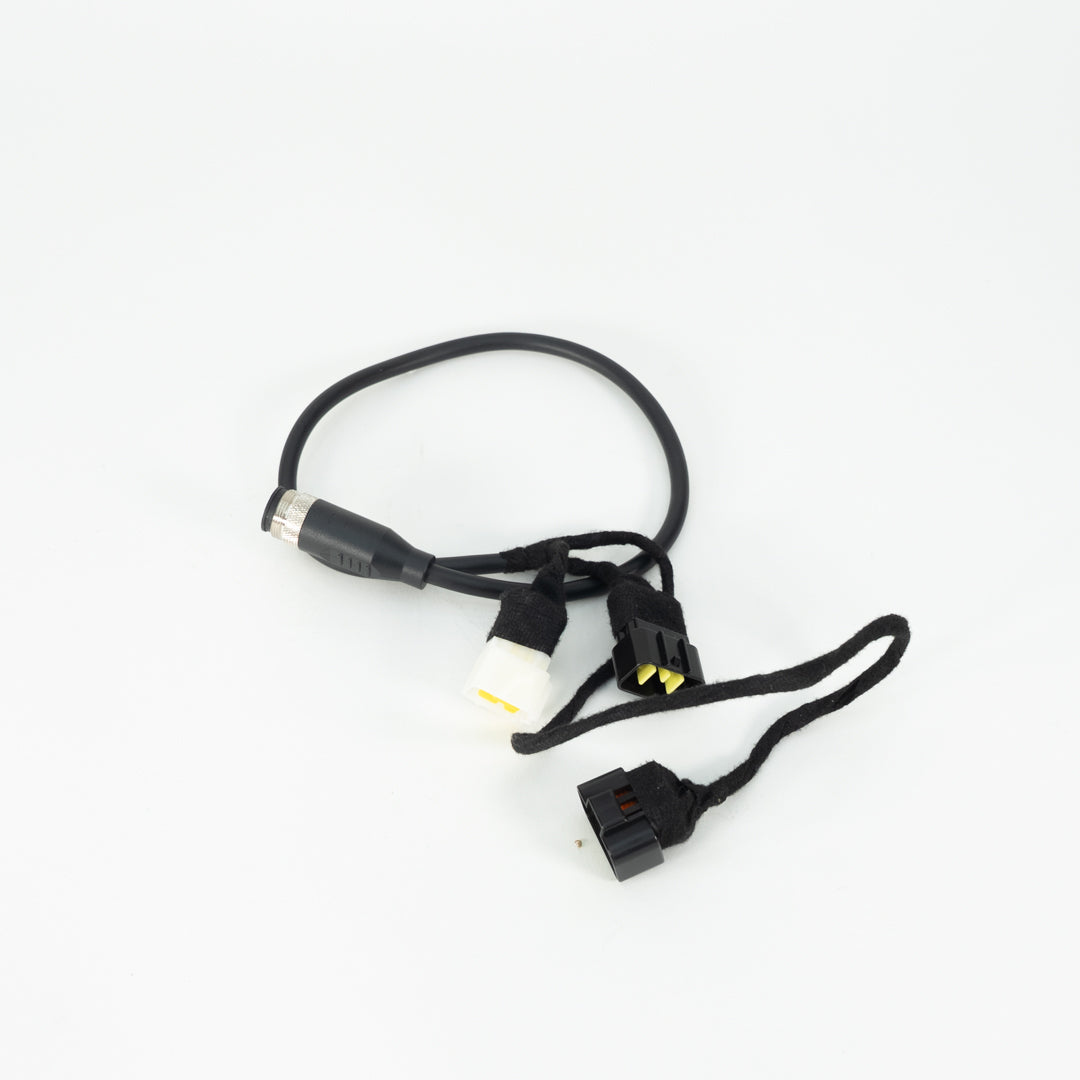

Air-cooled isn’t enough? This limited edition water-cooled XLB-60 satisfies the most demanding performance and heat dissipation needs. It uses the same mounting and wiring harness as the air-cooled XLB-60 for Surron Light Bee and E-Ride Pro SS 2.0.
The EBMX XLB-60 motors are custom-built and fine-tuned to work with the EBMX X-9000 controller. They may work with other aftermarket controllers, but custom wiring or tuning may be required. This motor will NOT work with a stock OEM controller.
- 35 kW rated – designed for heat tolerance with 180°C rated windings and U42H magnets.
- Custom IPM rotor design with 1mm rotor air gap, revving up to 13,000 RPM.
- Encoder-based motor control for improved low-end torque and smooth, predictable power delivery.
- Engineered to stay cool under race conditions, allowing you to focus on riding instead of motor temperature.
Technical Specifications
| Peak Power | 35 kW |
| Voltage Range | 48V – 104V |
| Max Torque | 52 Nm |
| Max Stable Rotor RPM | 13,000 RPM |
| Max Efficiency | 93% |
| Motor Configuration | 10 poles, 12 slots |
| Winding Type | Dual Y parallel connection |
| Stator & Rotor Stack Thickness | 60 mm |
| Sensing Method | NJDC 605 Encoder |
| KV Value | 95 KV |
| Rated Power |
Air cooled: 13,600 W (28 min), 24,000 W (2:20 min) Water cooled: 26,000 W (4:30 min) |
| Max Phase Current | 900 A |
| Rated Phase Current (Continuous) | 500 A (35 Nm) |
| Motor Temperature | 180°C windings, 140°C start limiting, 160°C power cut |
| Waterproofing | IP67 |
| Anti-Corrosion | Yes |
| Weight & Size |
Air cooled: OD 181.5 mm × L 118 mm, 10.5 kg Water cooled: OD 187 mm × L 118 mm, 12.5 kg |
| Warranty | 2 Years |
