Description

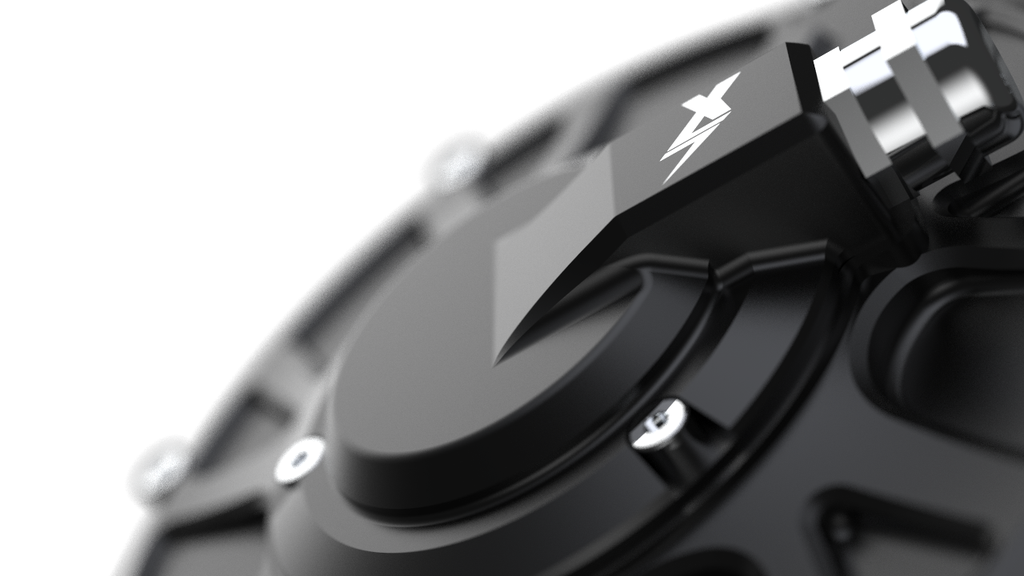

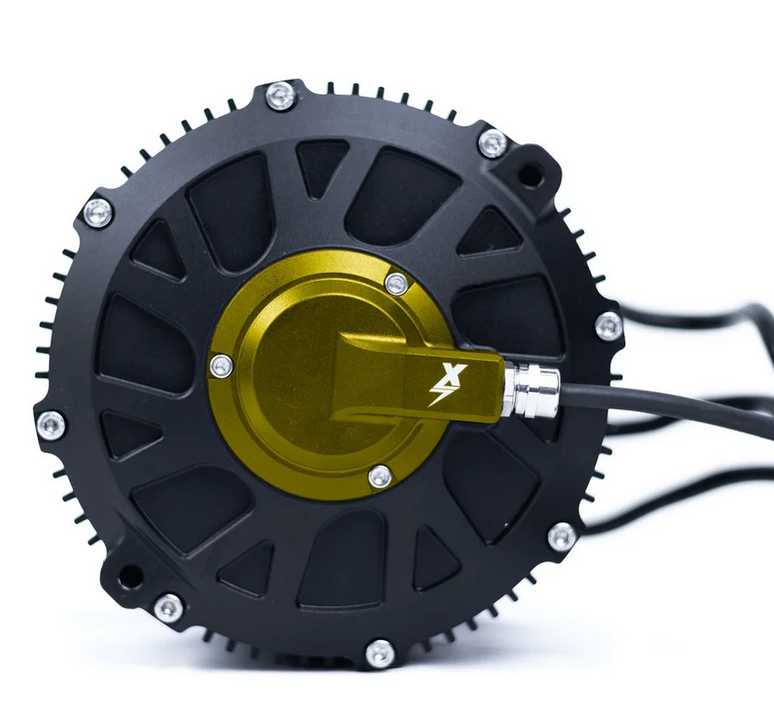

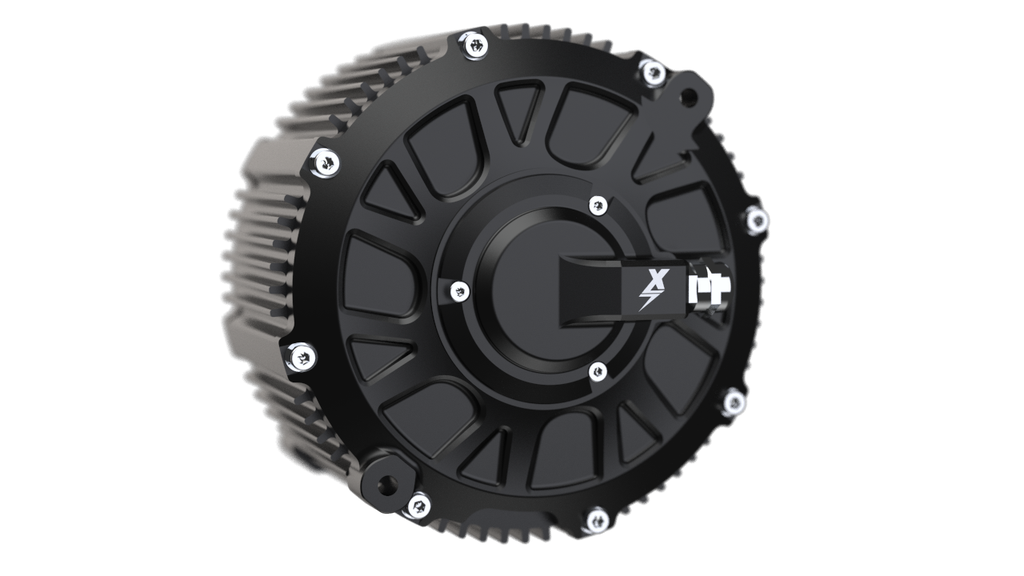

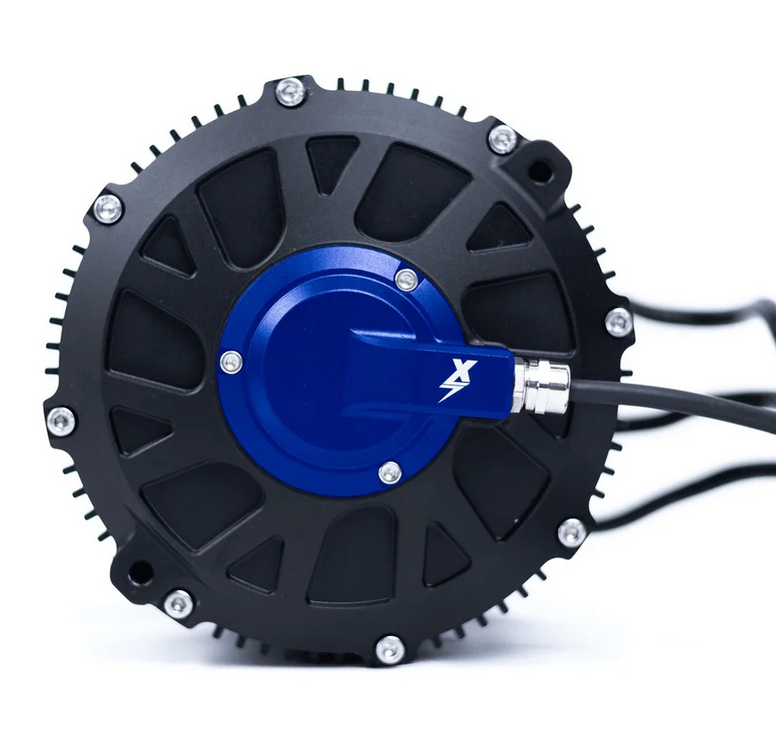

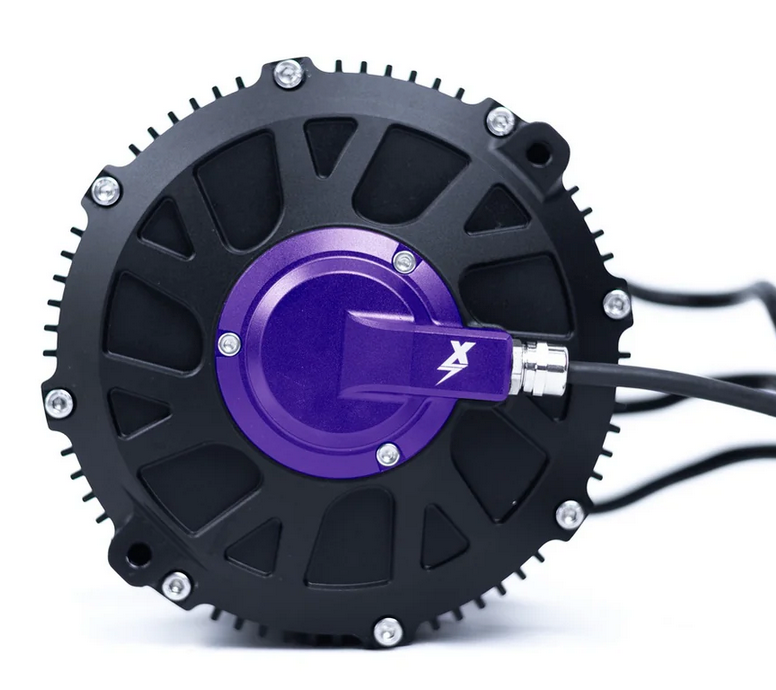

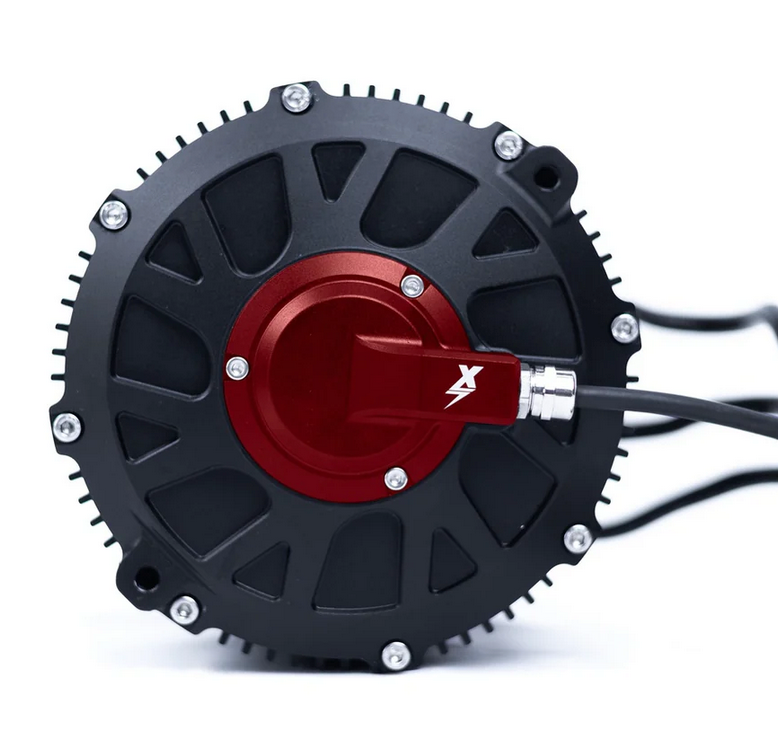

EBMX XLB-60 Race Motor Kit
Compatible with EBMX X-9000 V2 Controller (V3 coming soon)
Bike Compatibility:
Surron Version:
- Surron Light Bee S
- Surron Light Bee X
E Ride Pro Version:
- E Ride Pro S
- E Ride Pro SS 2.0
The EBMX XLB-60 has been designed to surpass the performance of other motors in its class. Built to stay cool under race conditions, it allows you to focus on riding rather than motor temperatures, whether on track, street, or trail.
- 35 kW rated, 180°C windings with U42H magnets
- Custom IPM rotor with 1mm air gap, rated to 13,000 RPM
- Encoder-based motor control for smooth, predictable power delivery and improved low-end torque
- Includes custom EBMX Bash Plate
Encoder vs Hall Sensors
Encoder sensors provide continuous, precise rotor position tracking at all speeds, delivering a smoother, more responsive, and controllable powerband. Hall sensors, common in other motors, rely on estimated rotor positions and can generate current spikes under demanding riding conditions. EBMX XLB-60 uses encoders to ensure consistent performance and better low-end torque.
Recommended Gearing
- 18" wheels: 58T-64T (75 MPH top speed with 64T/72V)
- 16" wheels: 54-58T
- 17" wheels: 56-60T
Recommended X-9000 Settings (400A BMS 20S/22S)
- 1000 Phase / 30 kW
- 900 Phase / 25 kW
- 800 Phase / 20 kW
For more range, set field weakening to 0%. Example: 64T sprocket on 21/18 wheels with 72V battery can reach 65 MPH and increase range by up to 15%.
Real-World Motor Testing Results
Results may vary based on rider weight, gearing, and battery performance.
- 85 kg Rider
- 75 kg EBMX-built Surron
- 64T Sprocket
- 1000 Phase Amps / 500 DC Amps
- 20S 72V Race Battery – Peak Power 32-34 kW
- 22S 81V Race Battery – Peak Power 36-38 kW
IMPORTANT SAFETY CONSIDERATIONS
- Not Intended for Road Use: Strictly off-road and controlled environments only.
- Experienced Riders Only: High-performance motors for skilled riders. Novices should not use.
- Use with Caution: Extreme speed and power require attentiveness and caution.
- Upgrade Safety Equipment: Ensure brakes and safety features can handle increased power.
- Adhere to Local Laws: Ride only in designated off-road areas and tracks.
- Keep Away from Children: Never allow minors or inexperienced individuals to operate the motor.
- Ride Responsibly: Do not ride under the influence or impaired judgment.
By purchasing and using EBMX Motors, you acknowledge the inherent risks of high-speed off-road motor use. EBMX is not liable for injuries, damages, or losses due to improper use, negligence, or failure to follow this disclaimer.
Enjoy the thrill responsibly, with safety as your top priority.
