Description

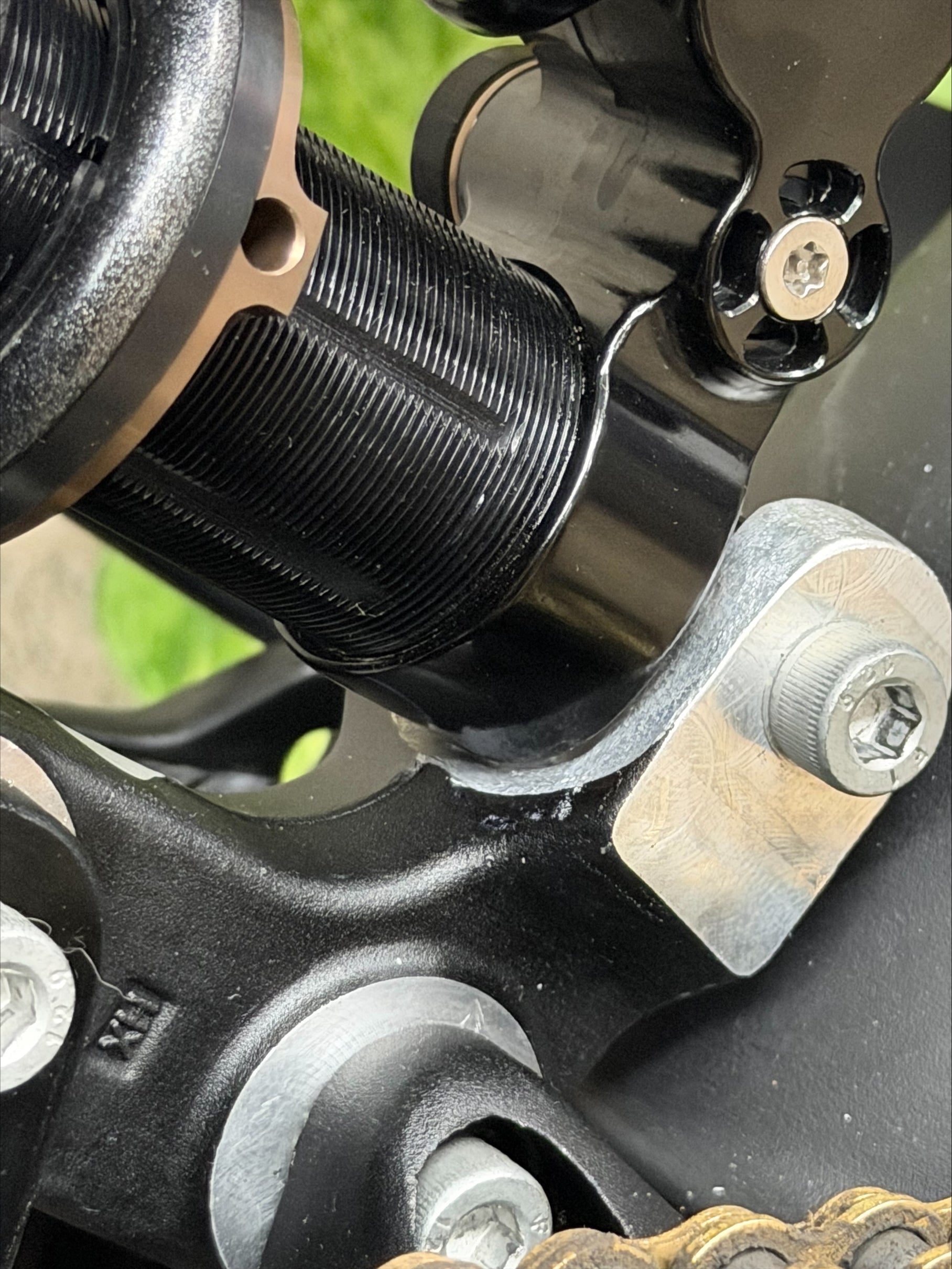

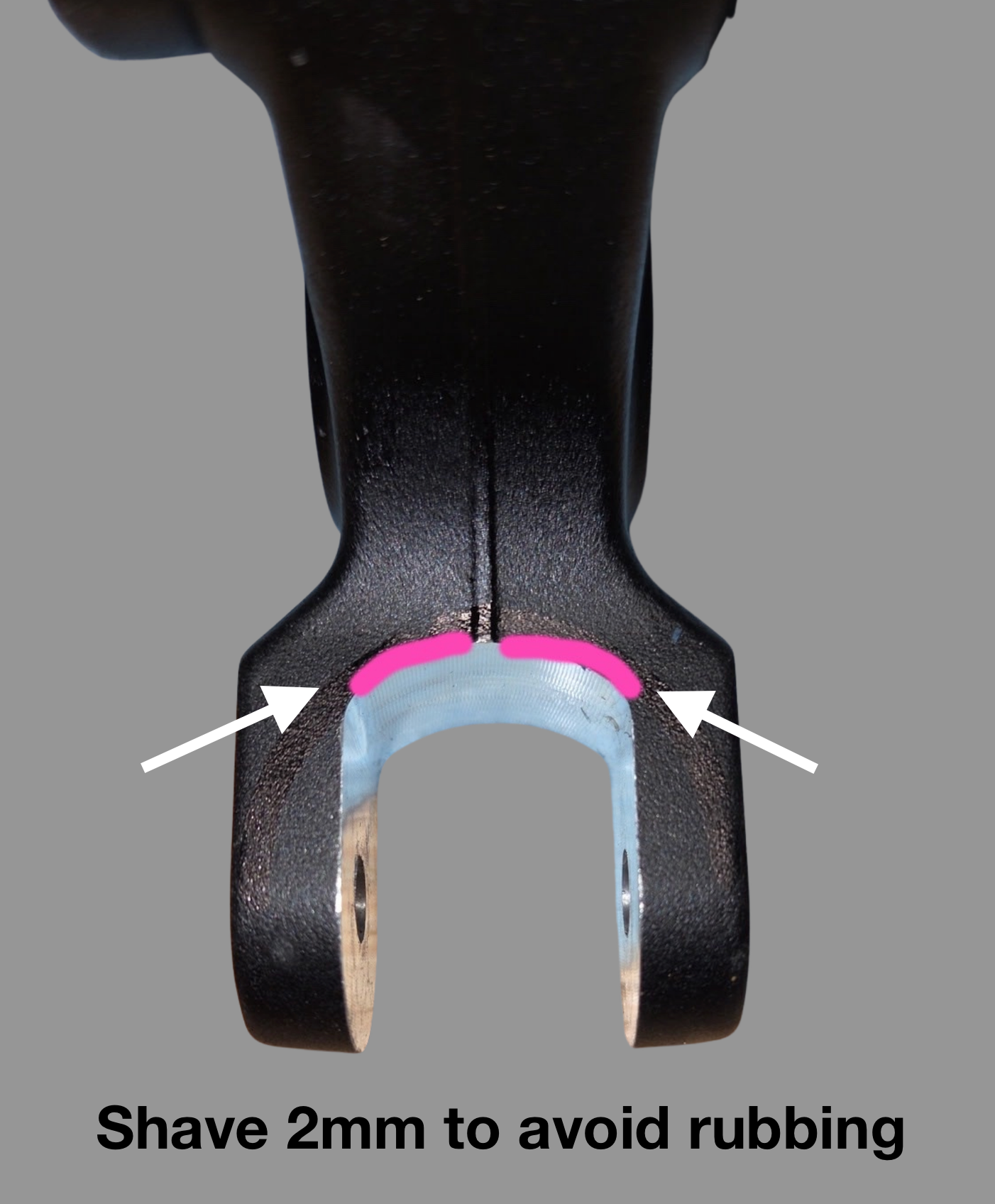

NOTICE: This suspension package requires modifications to the stock linkage. We will provide you with detailed instructions on how to do this.
Package includes the following:

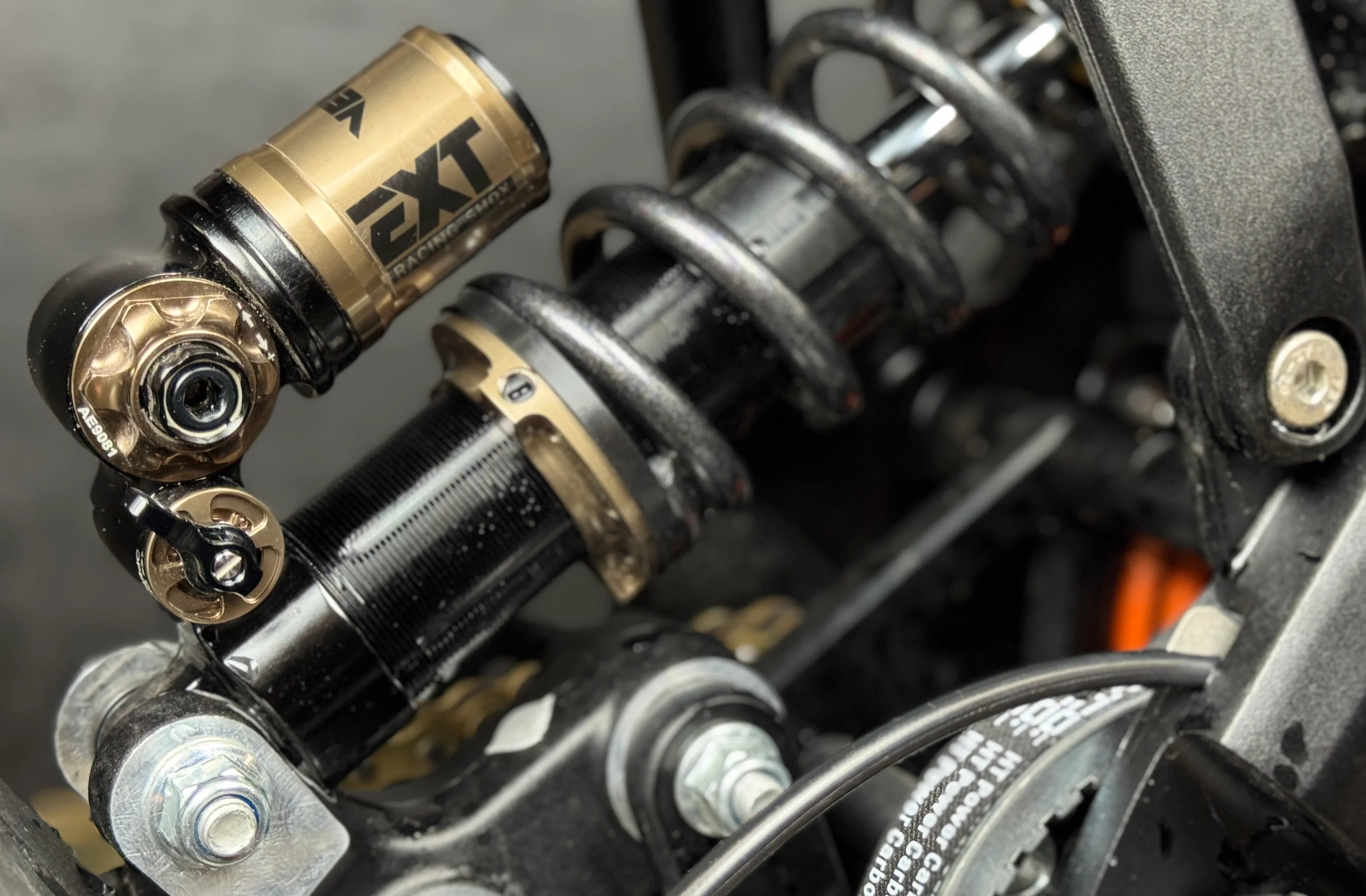

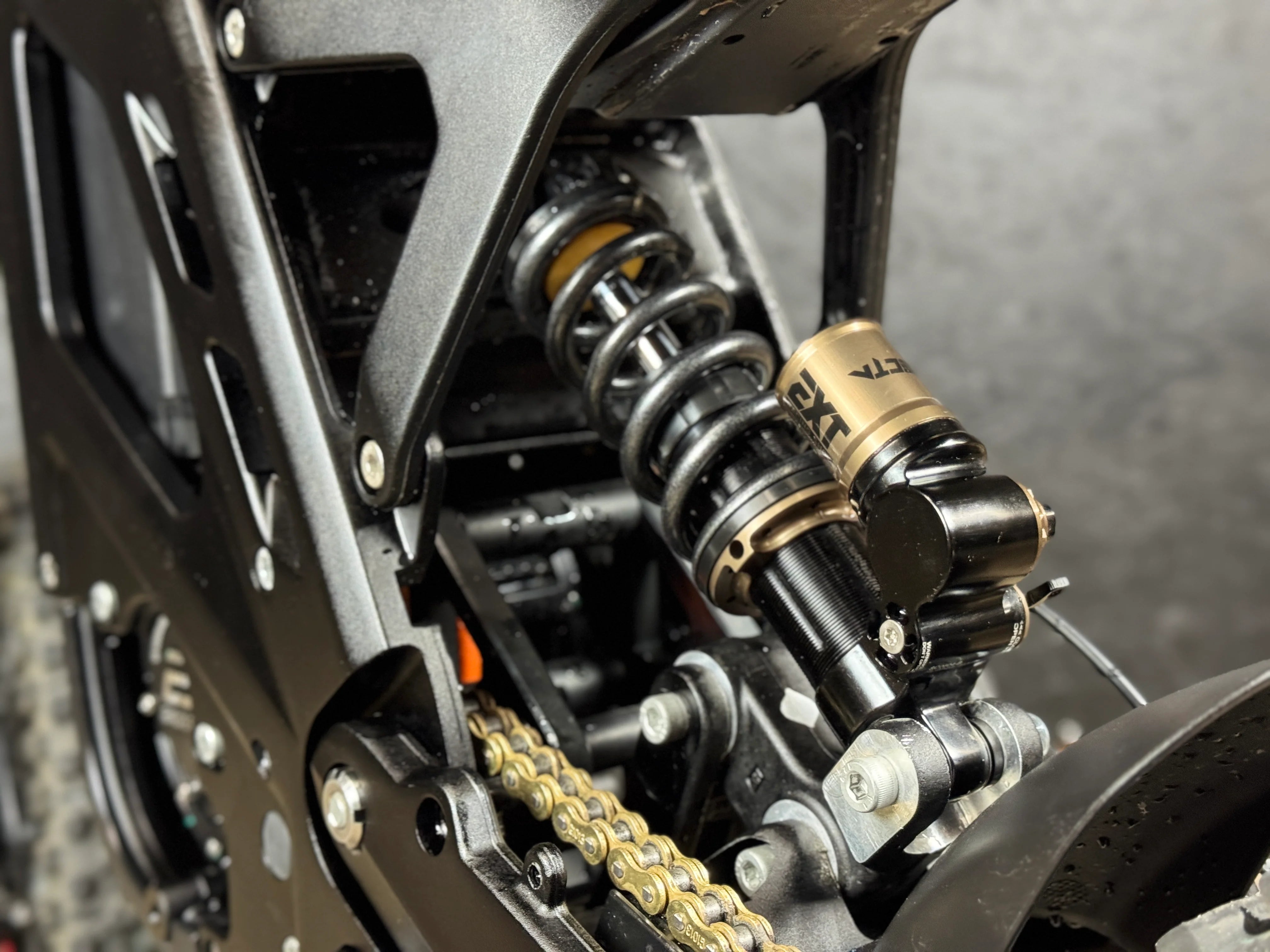

Vecta Damper 230x65mm
- 3-way adjustable: LSC-HSC-LSR
- High flow 29 mm main piston
- 24 mm valve piston
- 14 mm shaft (50% larger than most other coils on the market to help deal with large side loading events)
- Engineered rebound circuit to separate bump and rebound oil flow – Ultra low-friction coating
- User adjustable HBC technology
- Very low reservoir pressure for maximum sensitivity and low cavitation (55 PSI)
- Full custom hydraulic setup that is bike and rider specific for each shock
- Very low hysteresis for high dynamic response
- High turbulent flow for progressive damping and mid-stroke support
- Low friction seal
- Included with 1 lightweight spring available in weights from 325lbs to 800lbs
- Comes with specific mounting hardware for easy bolt-in installation.

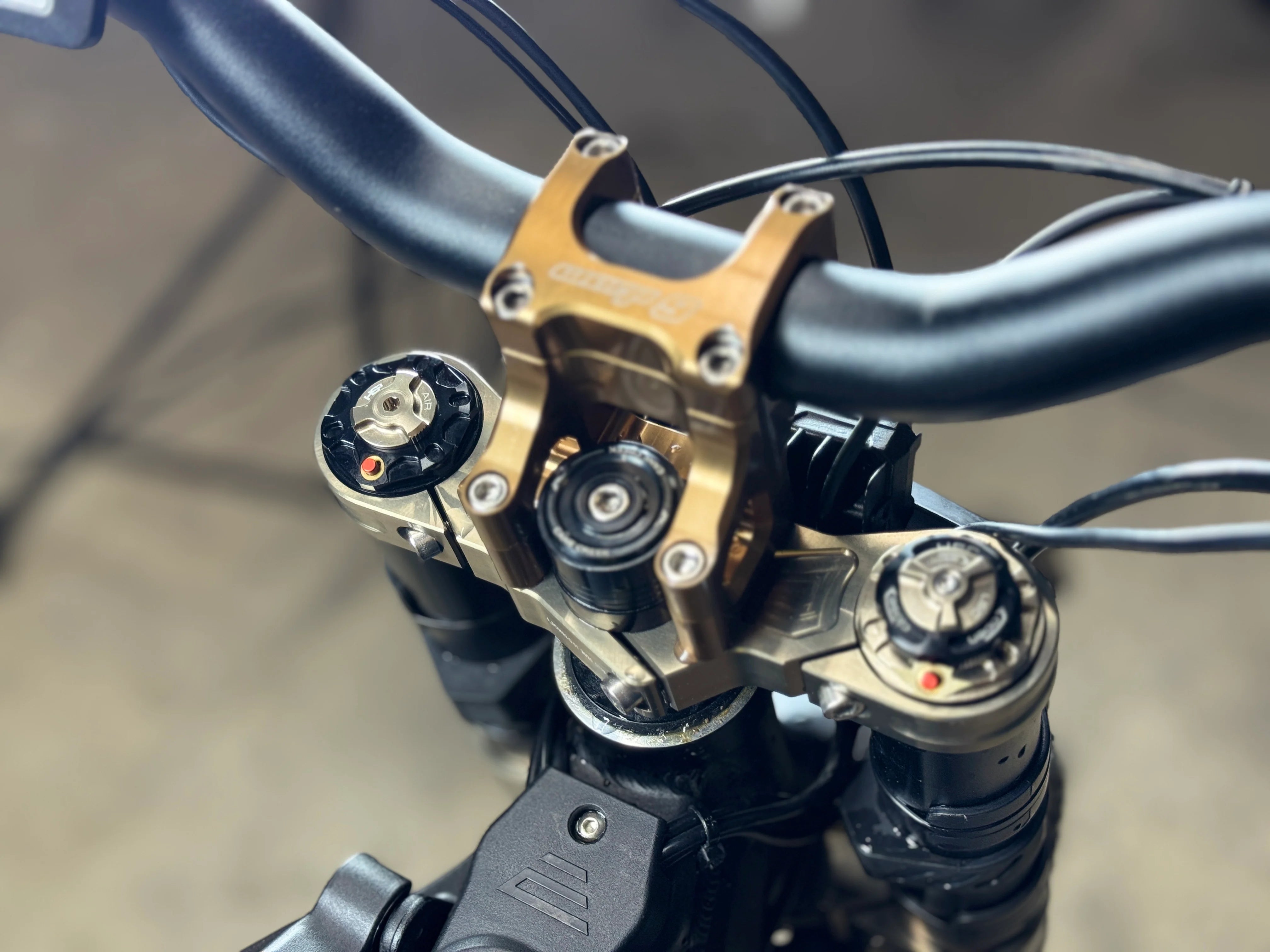

Ferro Mini FEATURES
- Lowered to 180mm and optimized for Eride Mini
- Robust dual crown inverted MX design (USD)
- 36mm hard-chromed steel stanchions (heat-treated 42CrMo4) with Superfinish surface treatment
- HS3 3- twin positive air system ¬+ 1 large negative self-balancing air chamber, allows for an optimum level of support through all the travel
- High flow 3-way cartridge damper system with independent high & low speed compression plus rebound damping adjustment.
- Superfinish inner tube coating
- External pressure air release system on both legs
- Twin hexagonal floating axle, boost compatible 20mm
- Air spring and cartridge radial guide system with bespoke aeronautical seals (minimize friction on side loads)
- Large piston design for best damping control and separate IFP/coil energized compression valve
- No cavitation and low hysteresis
- Self-hydraulic cartridge bleeding
- Dedicated Mobile Sliding DU guiding system with super-long static overlap (for maximum guidance and best torsional rigidity). (CGB Continuously Guided Bushing system, increase stiffness)
- 44 mm offset
- 200 mm post mount brake
- Weight 4000gr
- Pressure release one-way valves on both legs
- Compatible with stock fender design
- Boost Hub Spacing for more flexibility with aftermarket wheel sets.
INCLUDES:
- Vecta Rear Damper and Selected Spring
- Ferro Mini EMX With Flat Crown
- Hub Adaptor
Recommended Spring Rates
| Rider Weight | Plush | Firm |
|---|---|---|
| Up to 140 | 400 | 450 |
| 140 to 160 | 450 | 500 |
| 160-180 | 500 | 550 |
| 180-210 | 550 | 600 |
| 210+ | 600 | 650 |
Ferro Recommended Starting Settings
| Plush | Firm | |||
|---|---|---|---|---|
| Rider Weight | Main Chamber (+) | Ramp Chamber (++) | Main Chamber (+) | Ramp Chamber (++) |
| 120 | 70 | 88 | 80 | 110 |
| 140 | 80 | 100 | 90 | 125 |
| 160 | 90 | 113 | 105 | 150 |
| 180 | 100 | 125 | 120 | 170 |
| 200 | 110 | 138 | 130 | 180 |
| 220 | 120 | 150 | 145 | 200 |
