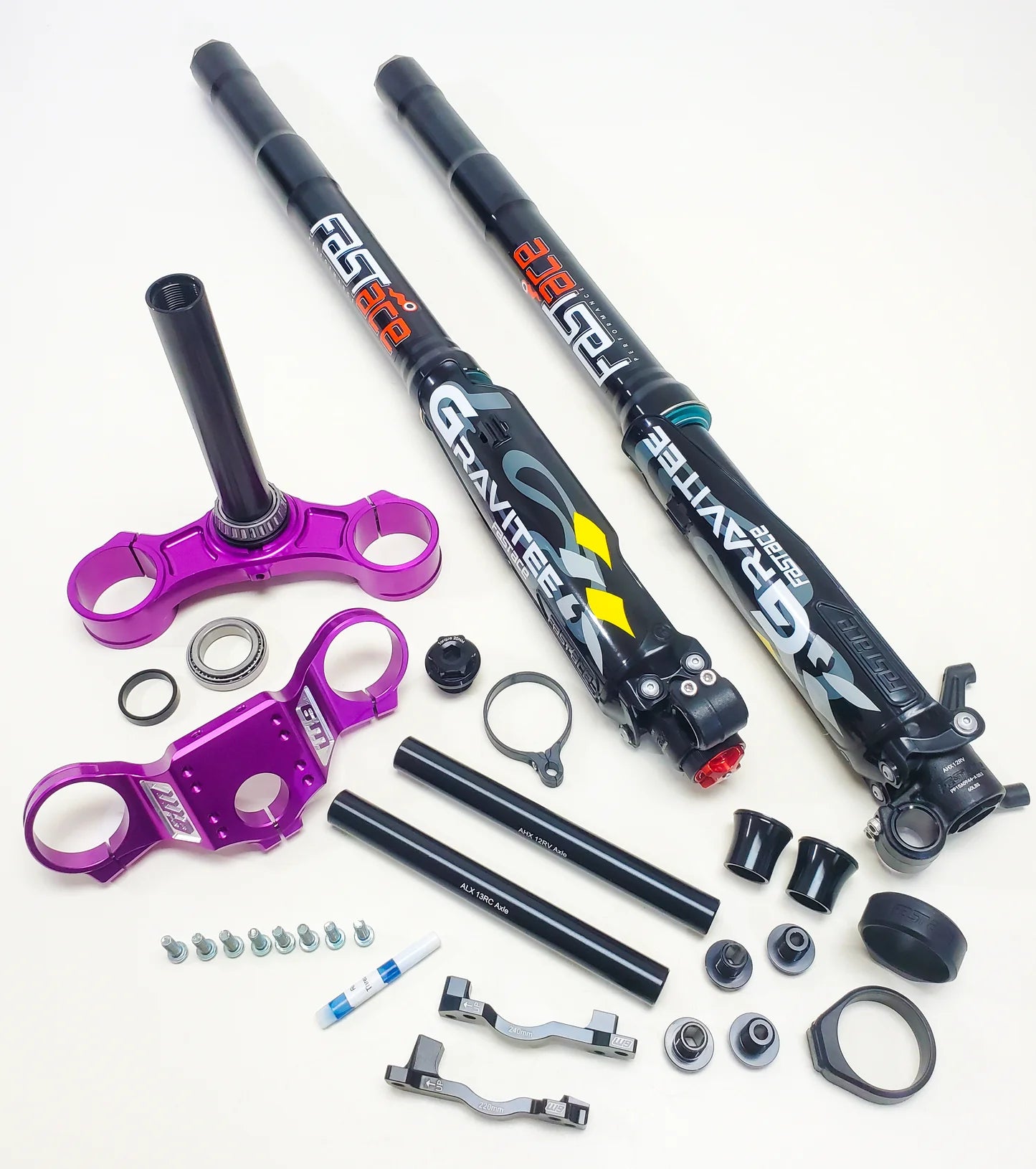

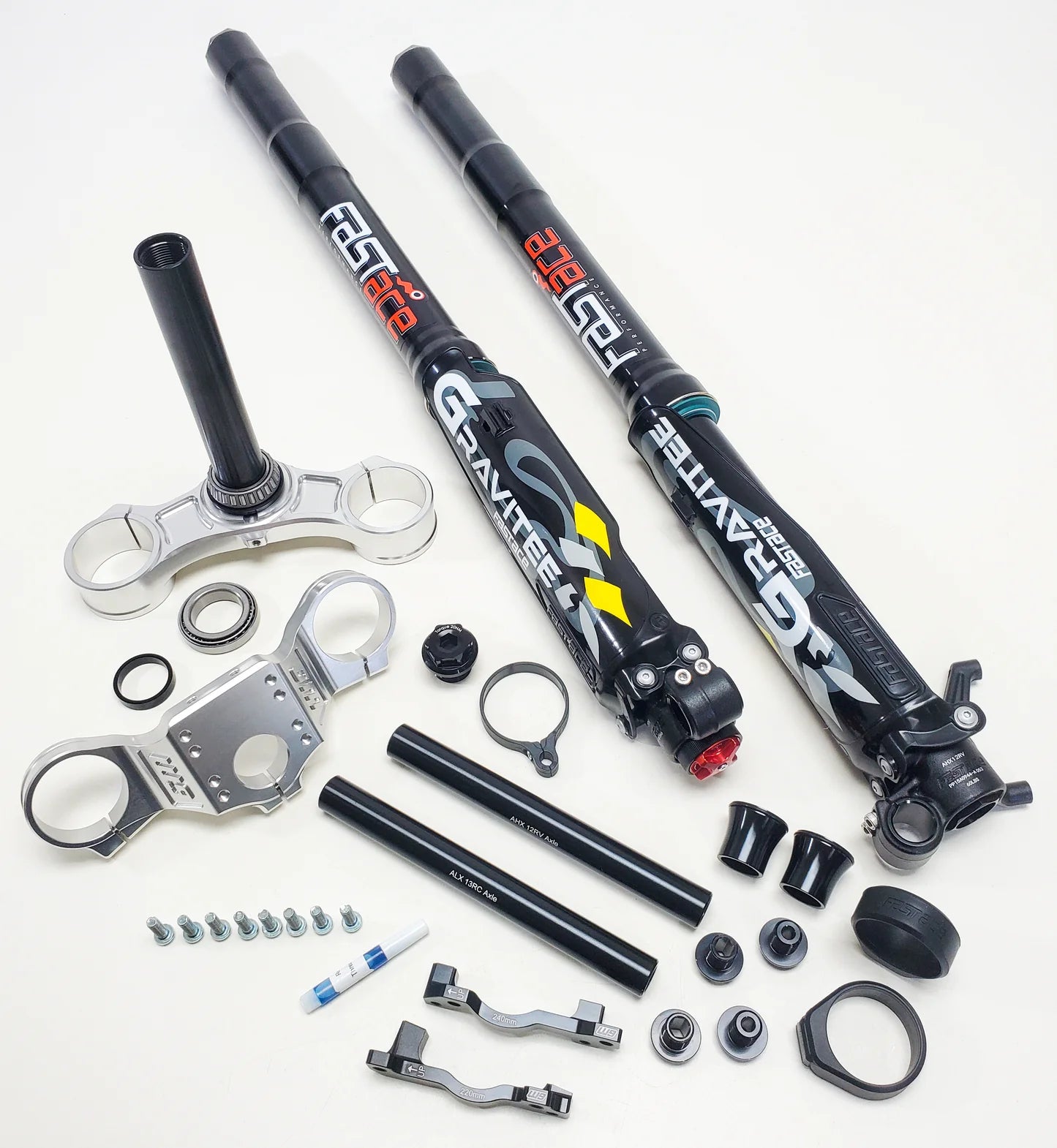

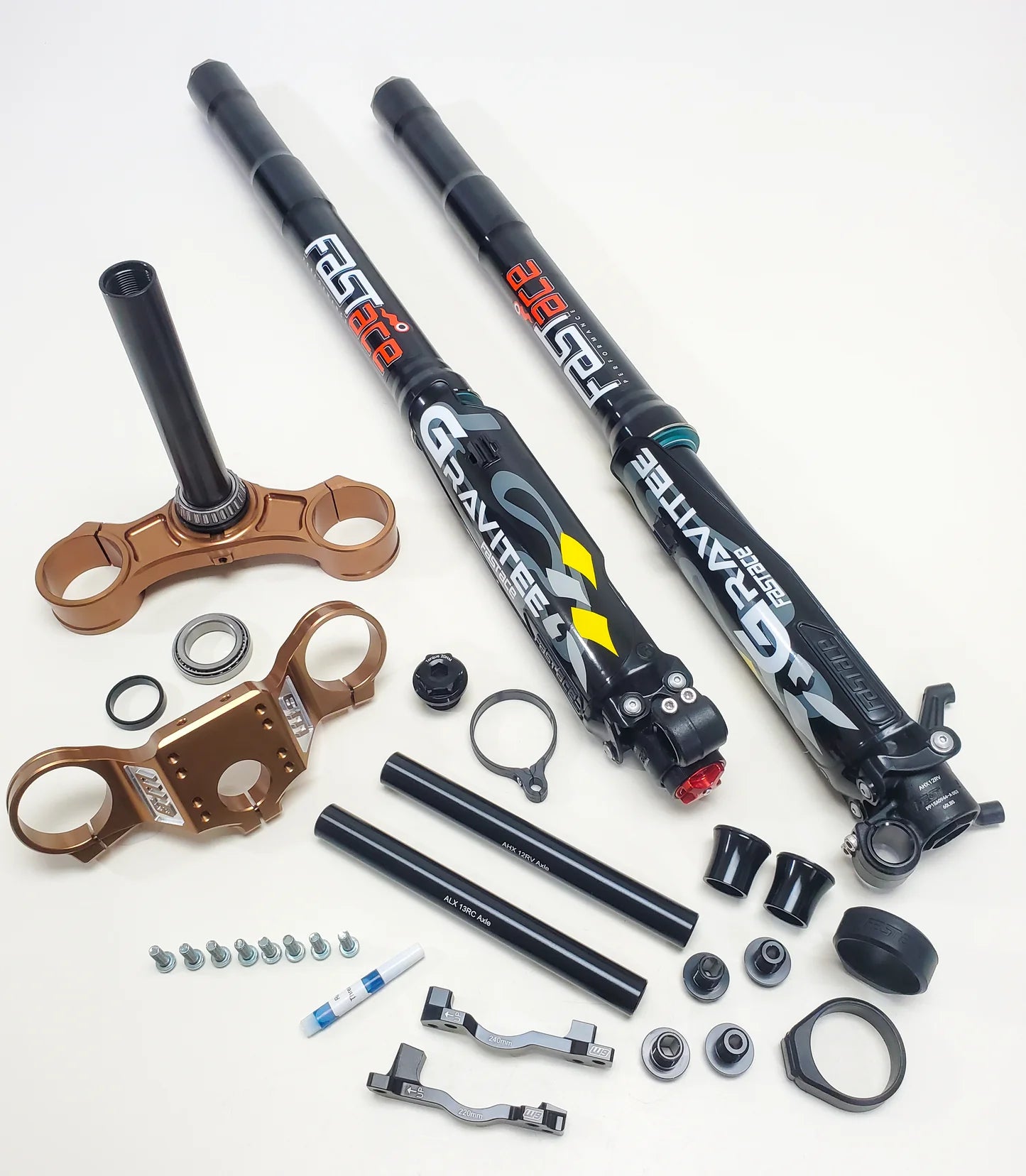

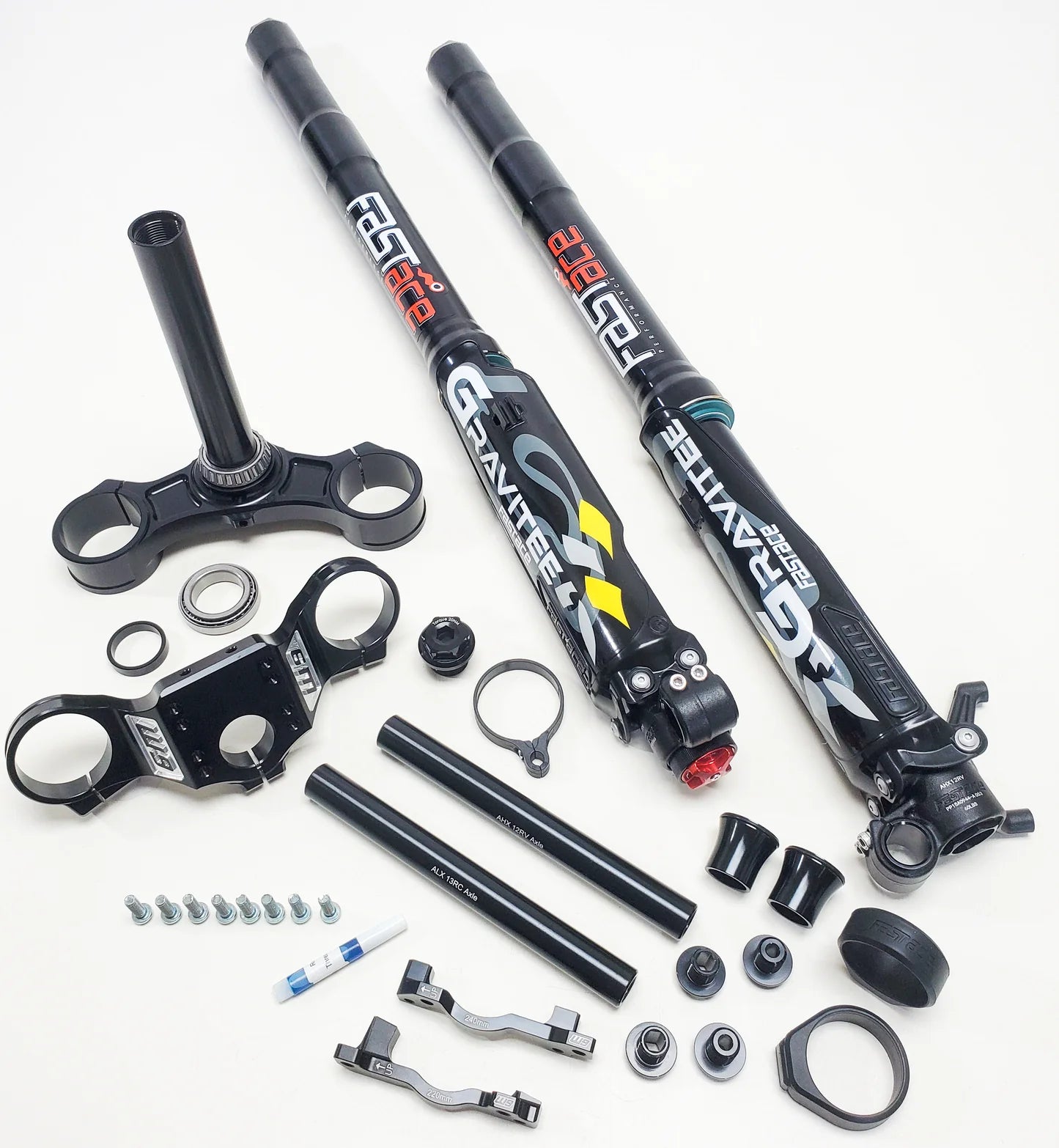

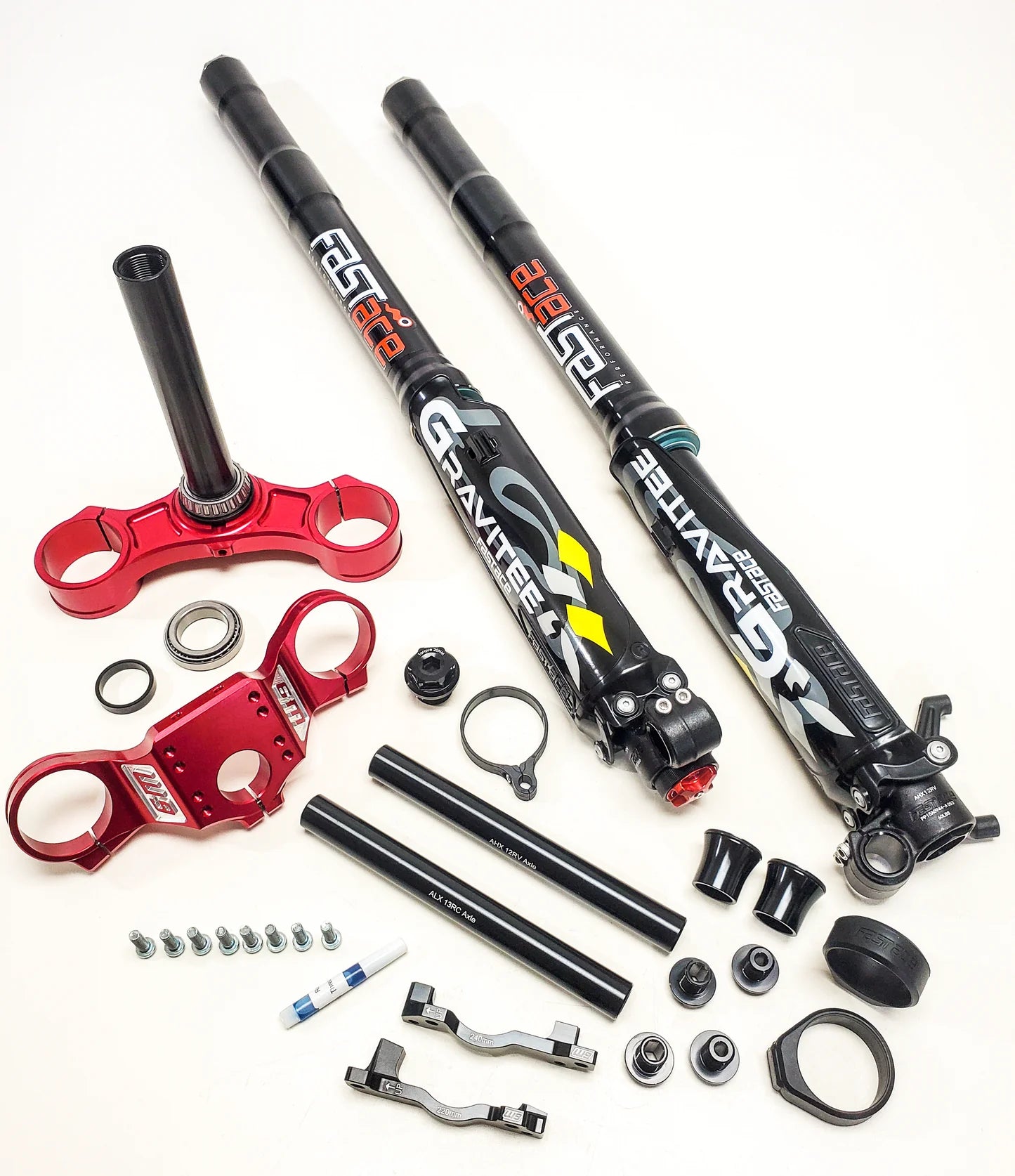

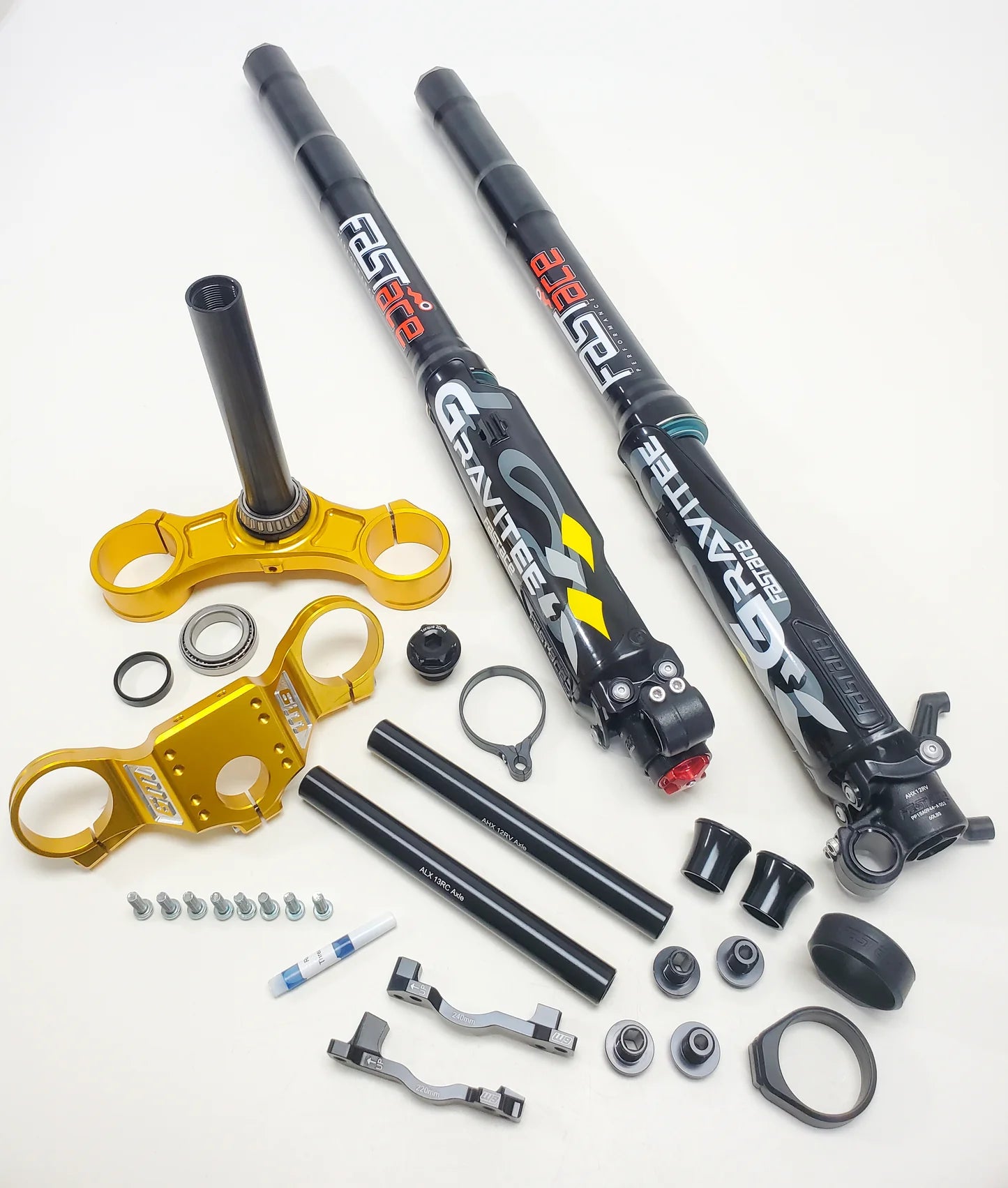

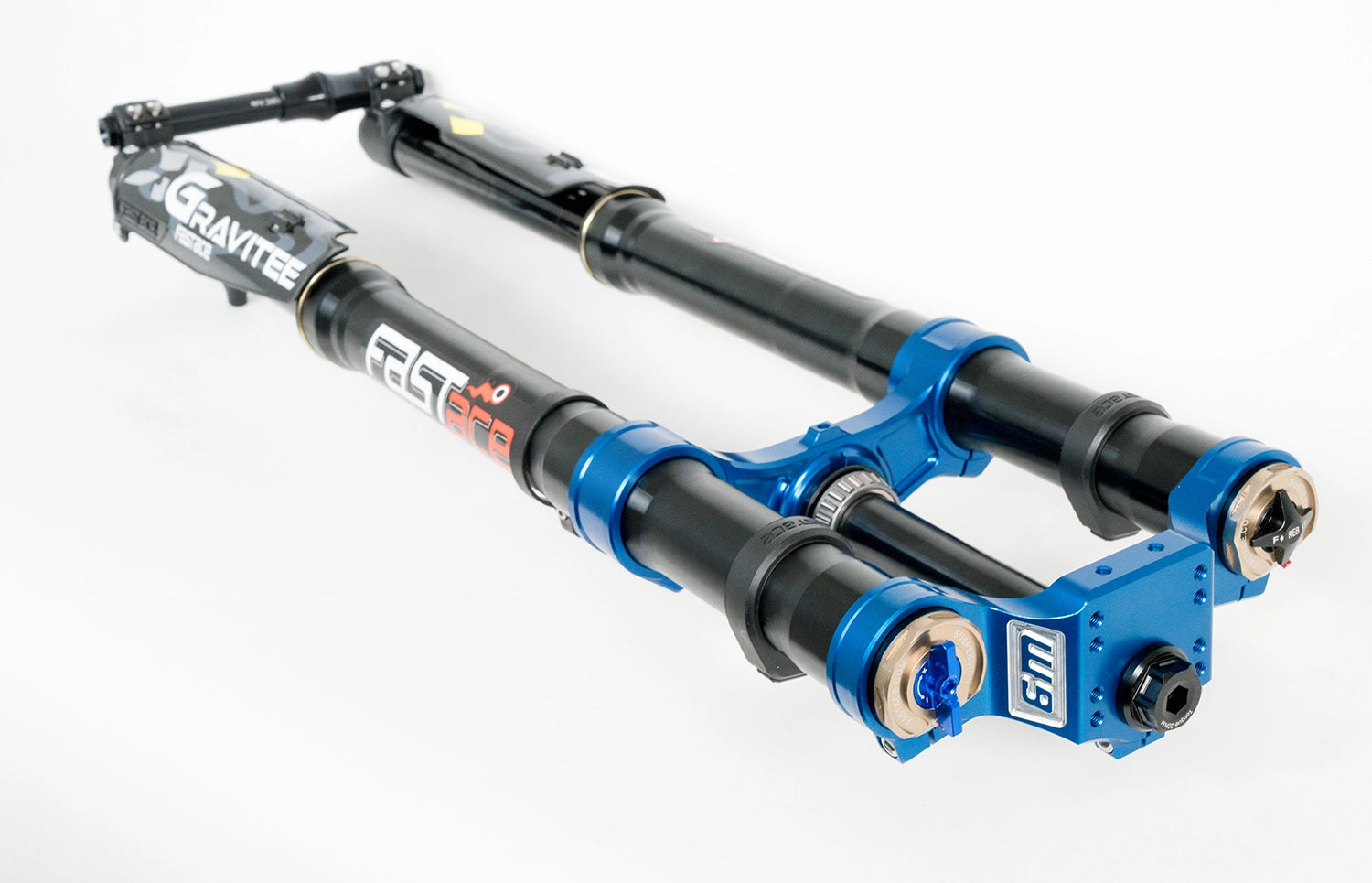

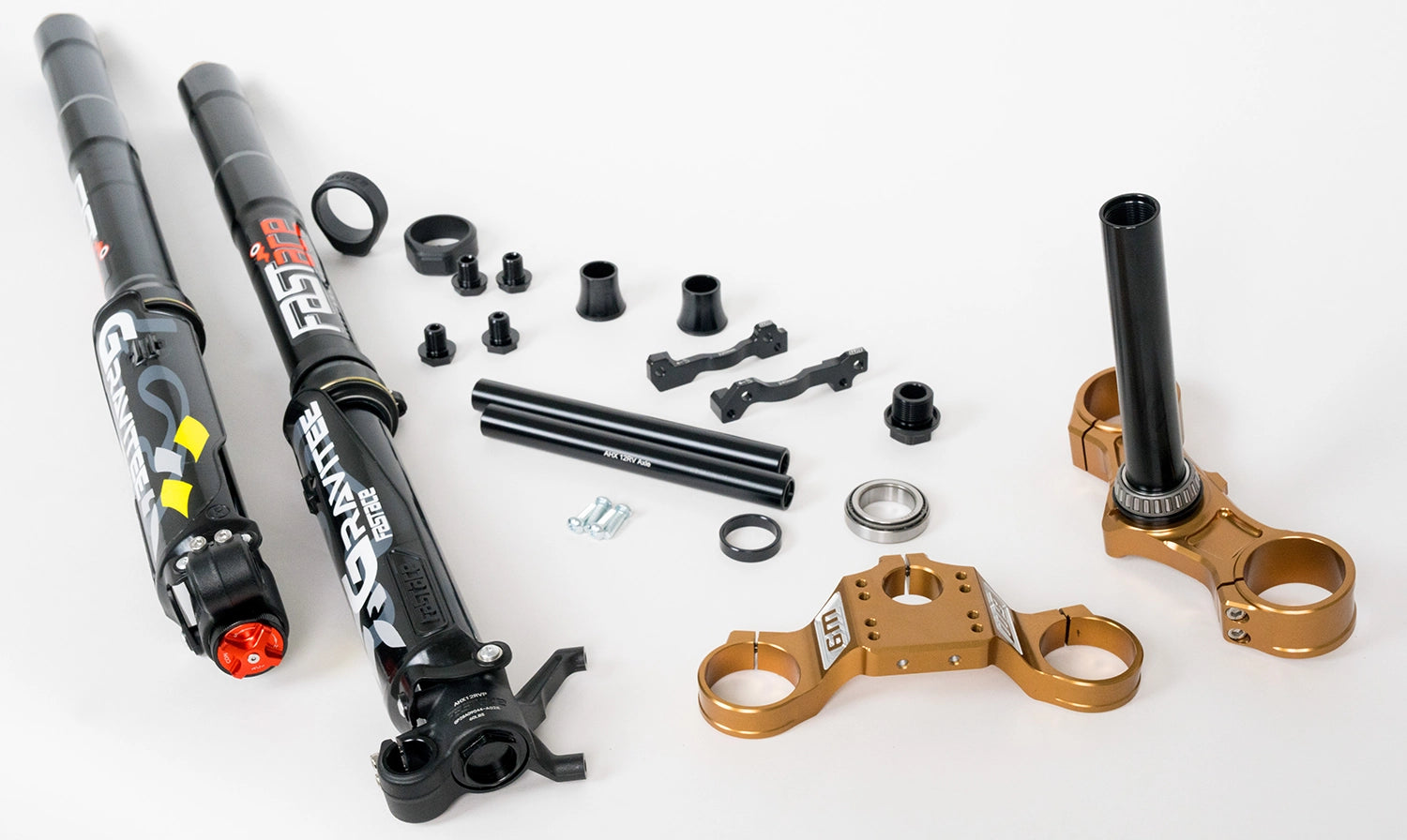

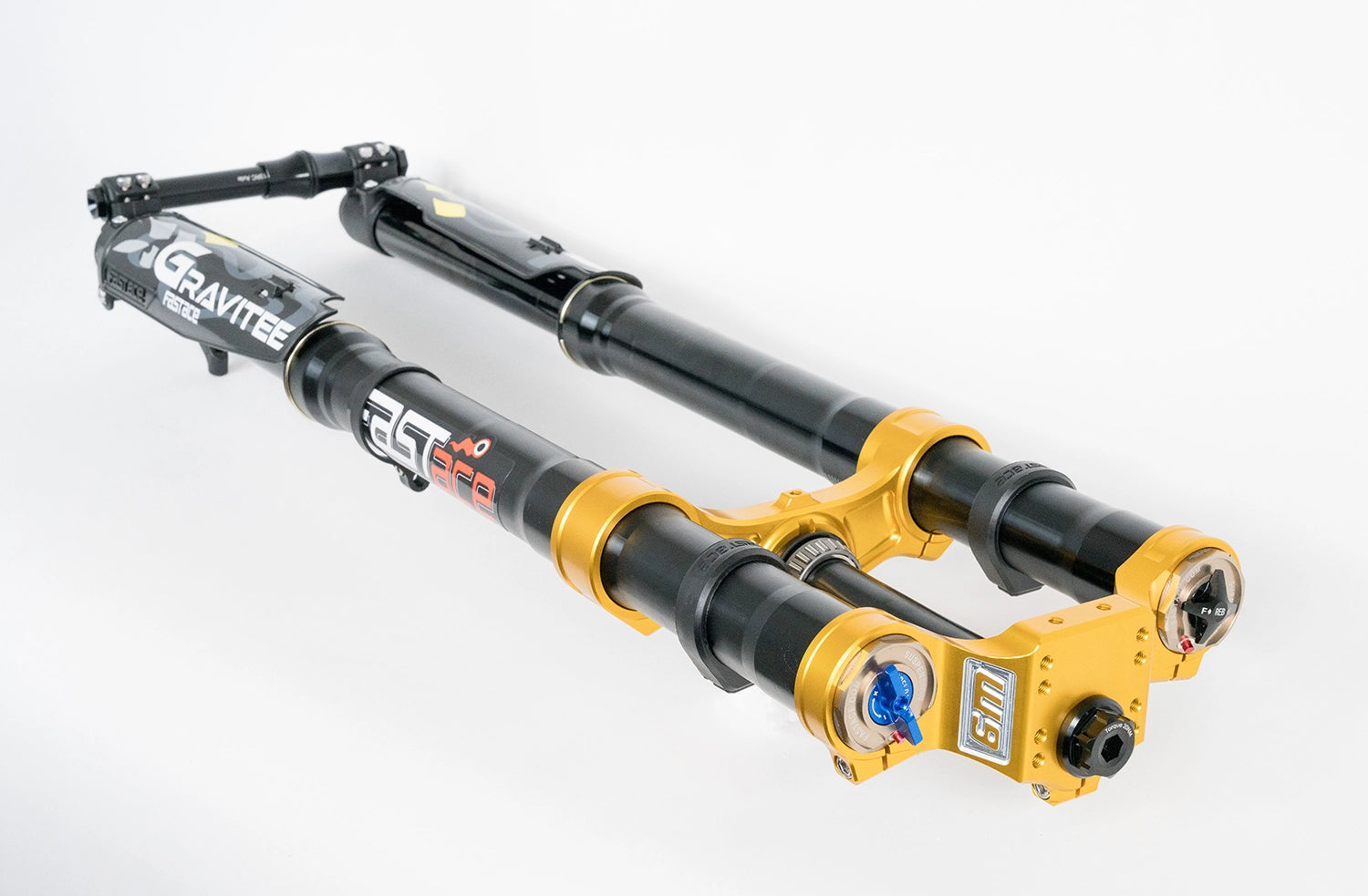

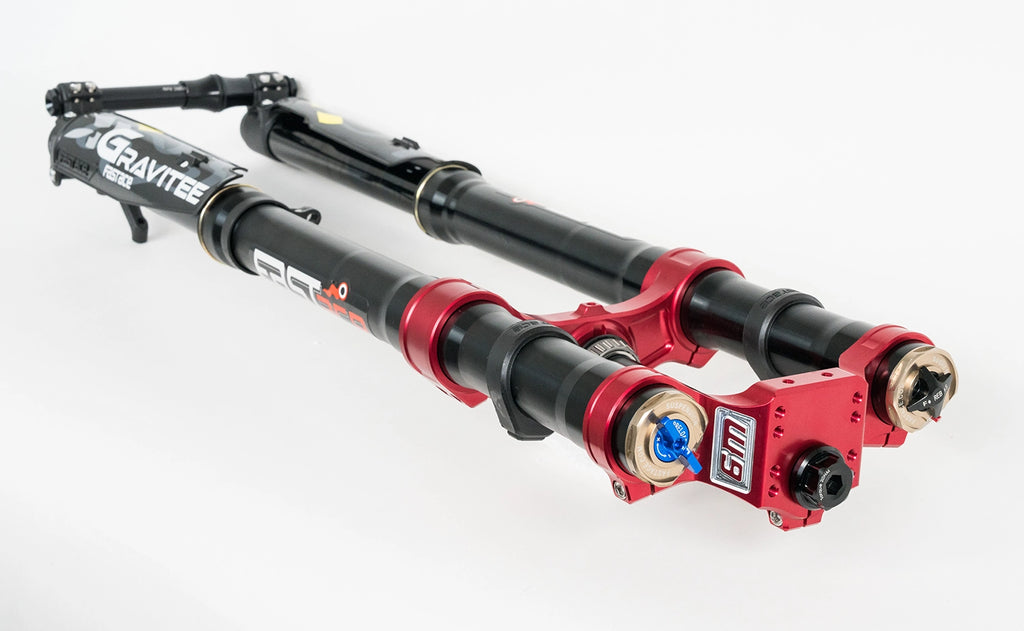

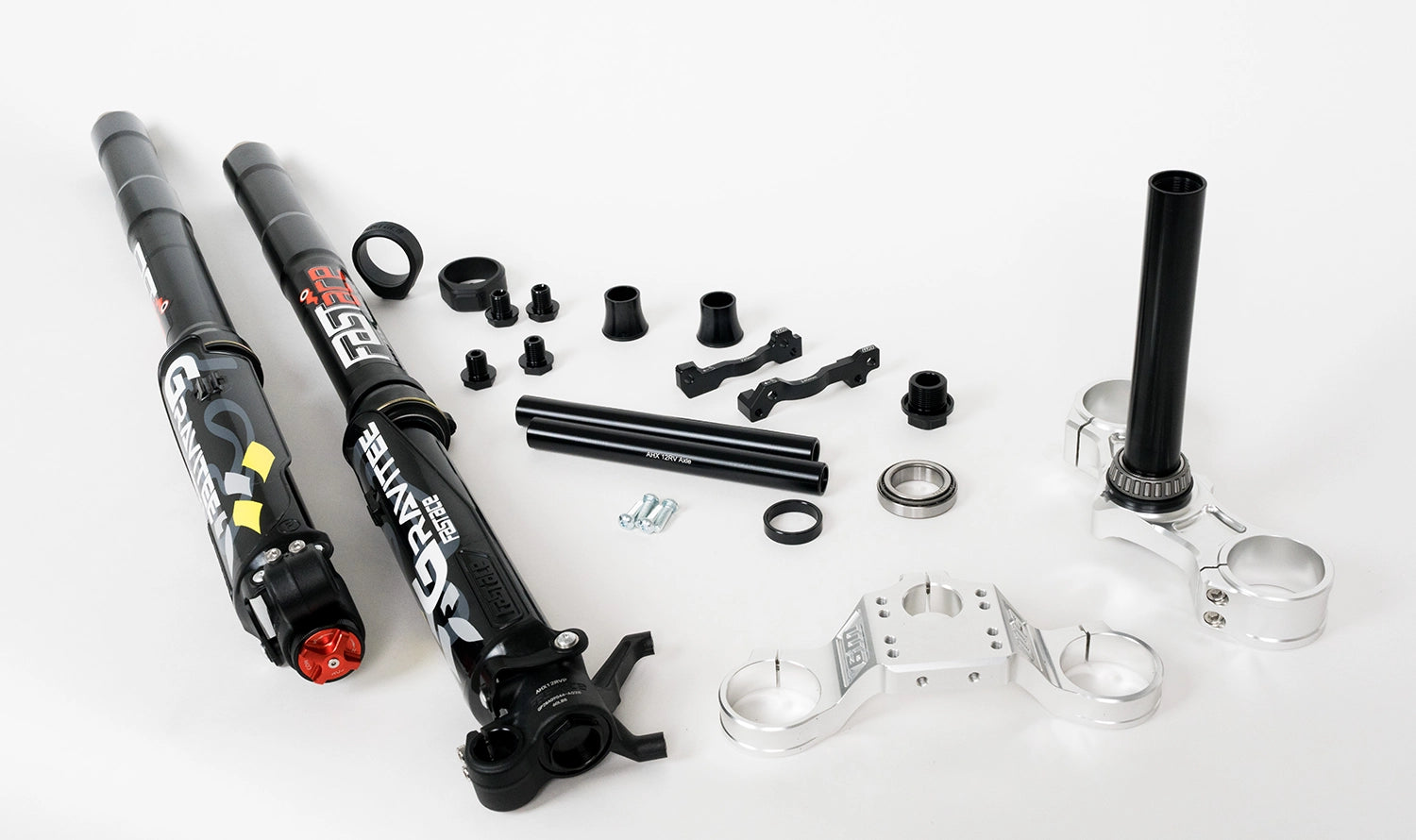

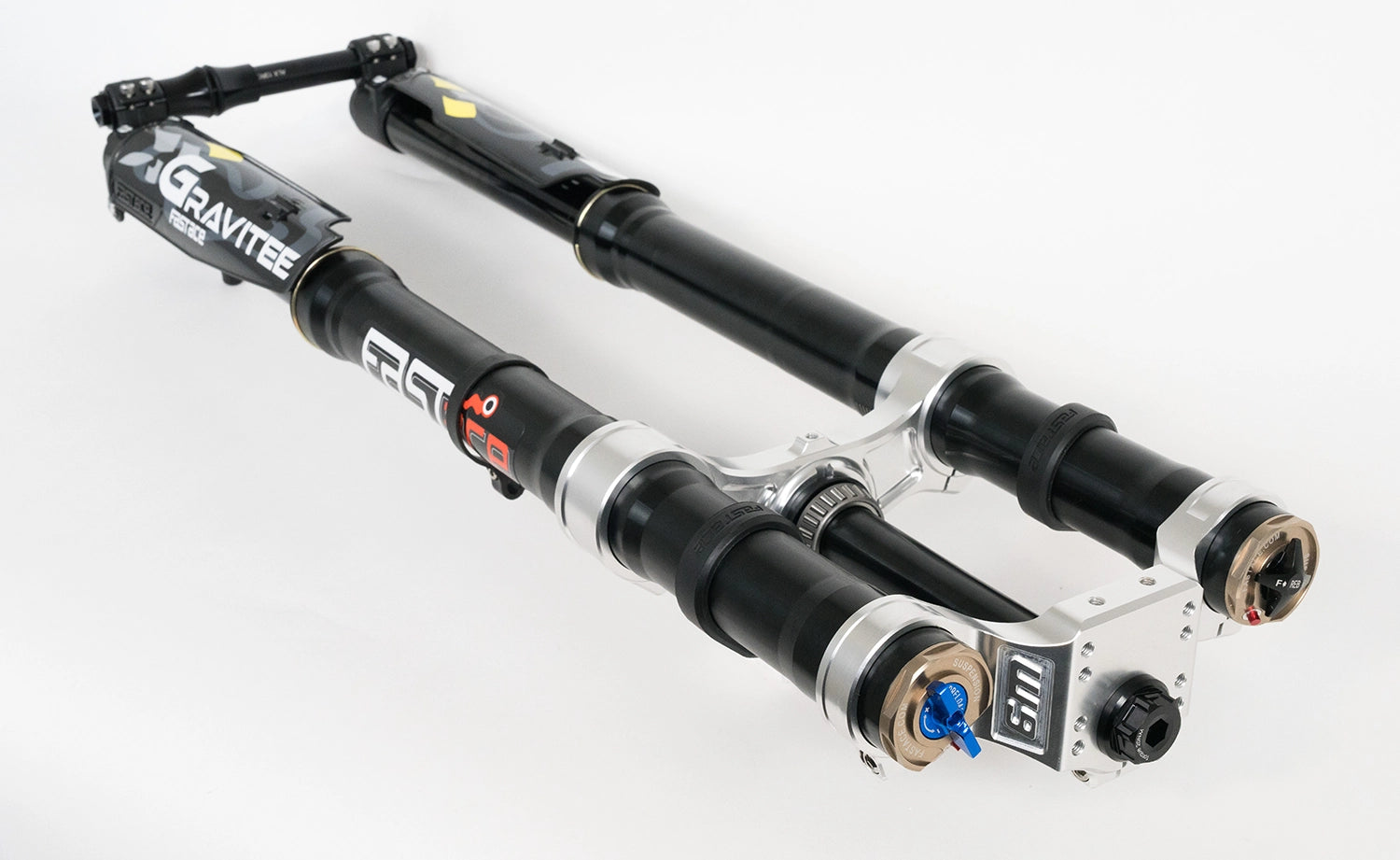

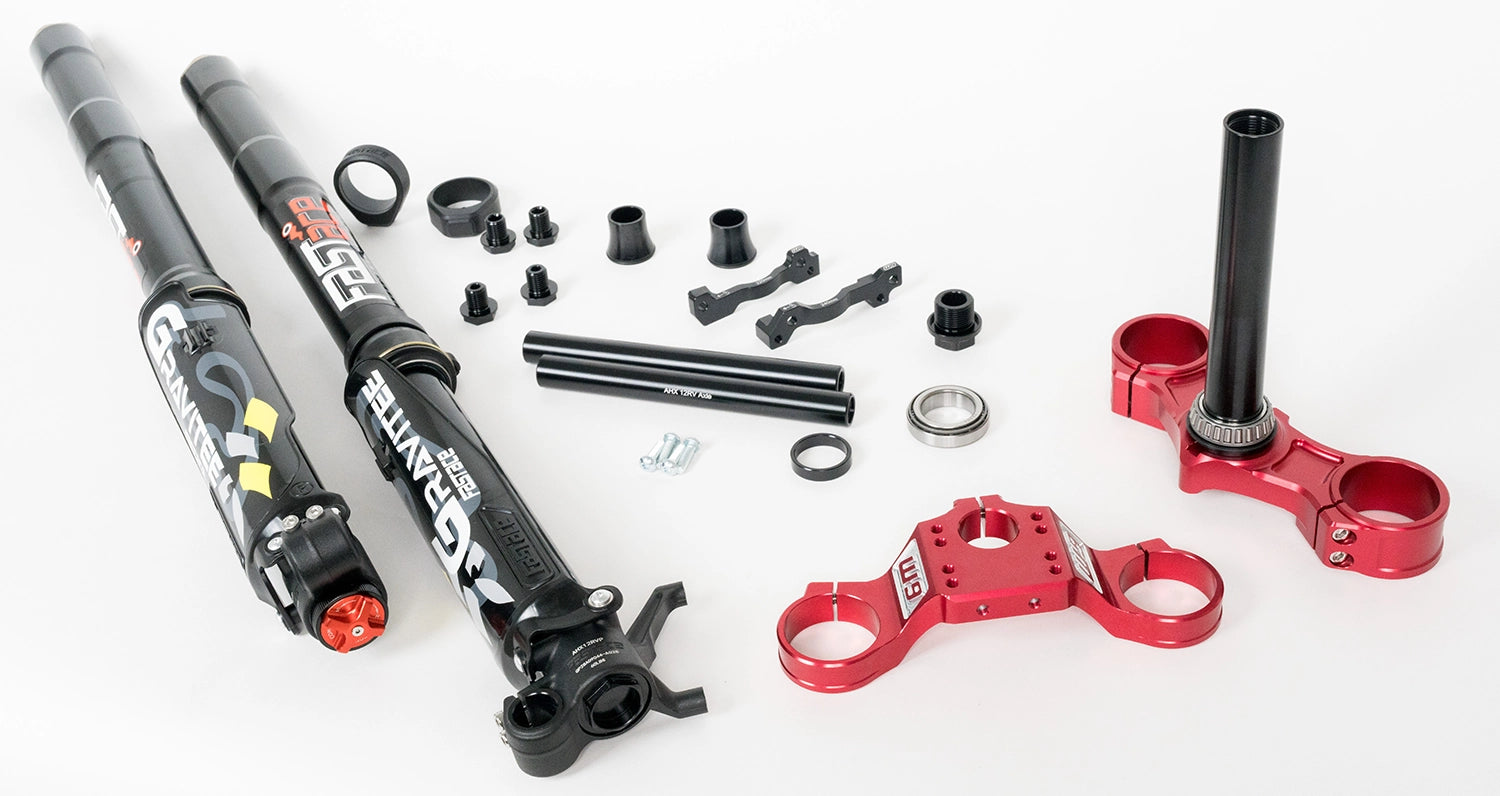

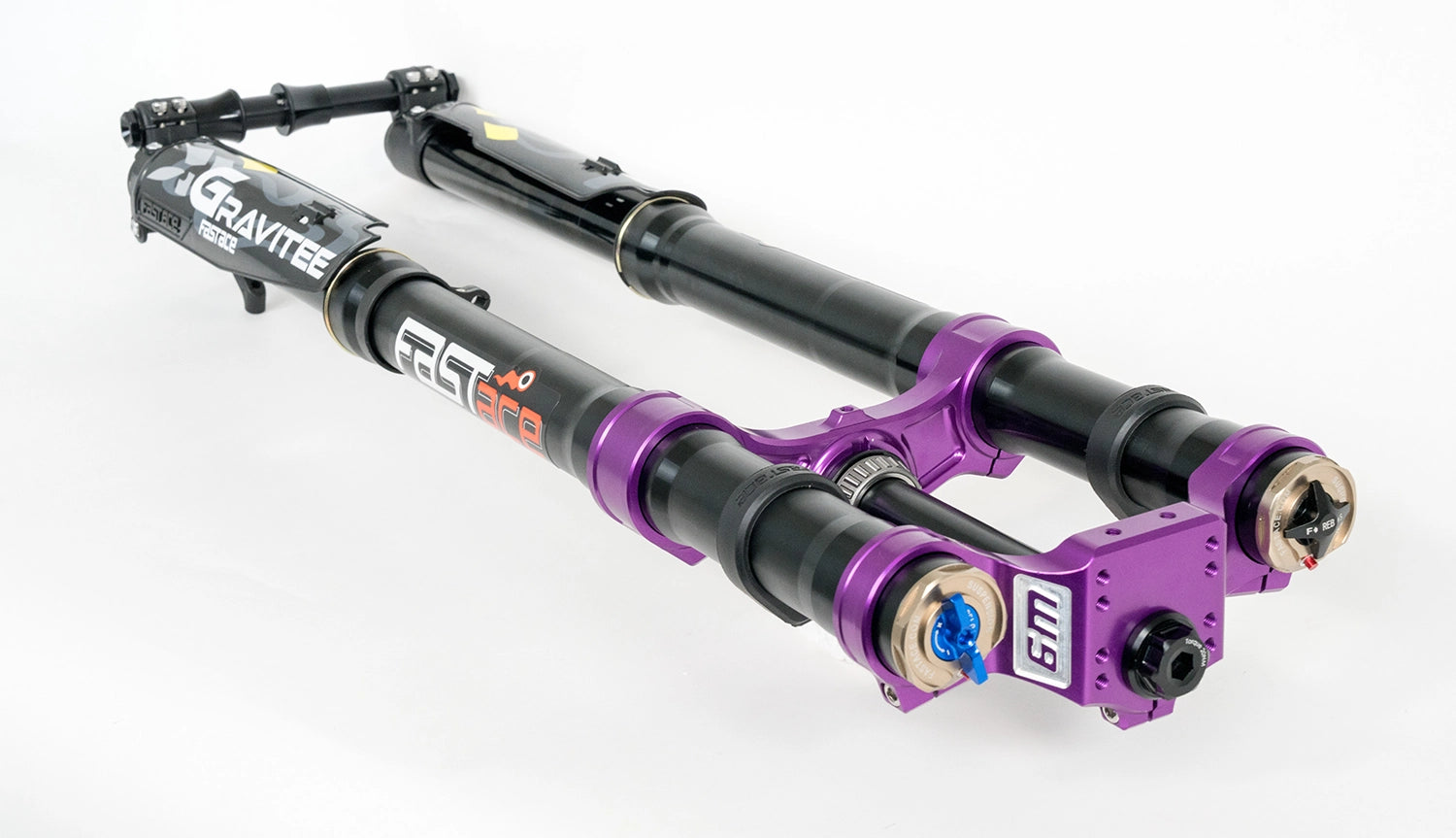

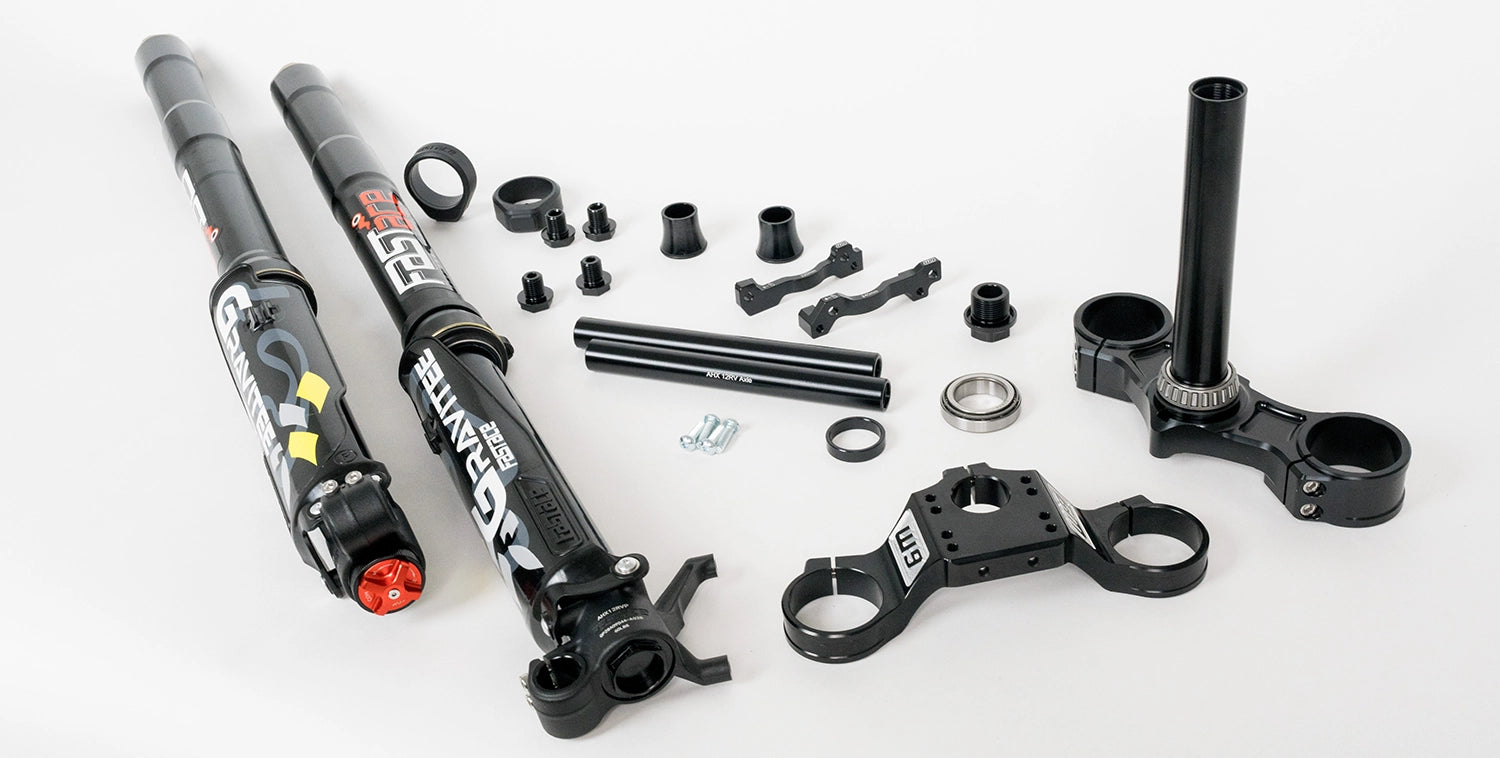

Warp9 FastAce Gravitee AHX12RV + Warp 9 Triple Clamps Suspension Bundle

Warp 9 teamed up with FastAce to take the Gravitee AHX12RV

fork to the next level.



We took an already good fork and made it great by springing the fork with a 60lbs spring and custom valving. Combined with 5wt Motul Synthetic oil, this combination is set up for a targeted rider weight of 175 to 220 lbs and for an aggressive rider.





Details:

• SKF Seals and wipers offer the best and the least stiction possible.
• Custom laser etching to keep track of your favorite ride height.
• 37mm lower stations are some of the largest in the industry and designed for serious punishment
• 18 step for high and low speed compression damping
• Brake posts are designed for 203mm rotor sizes, larger diameter rotors will need caliper adapters.

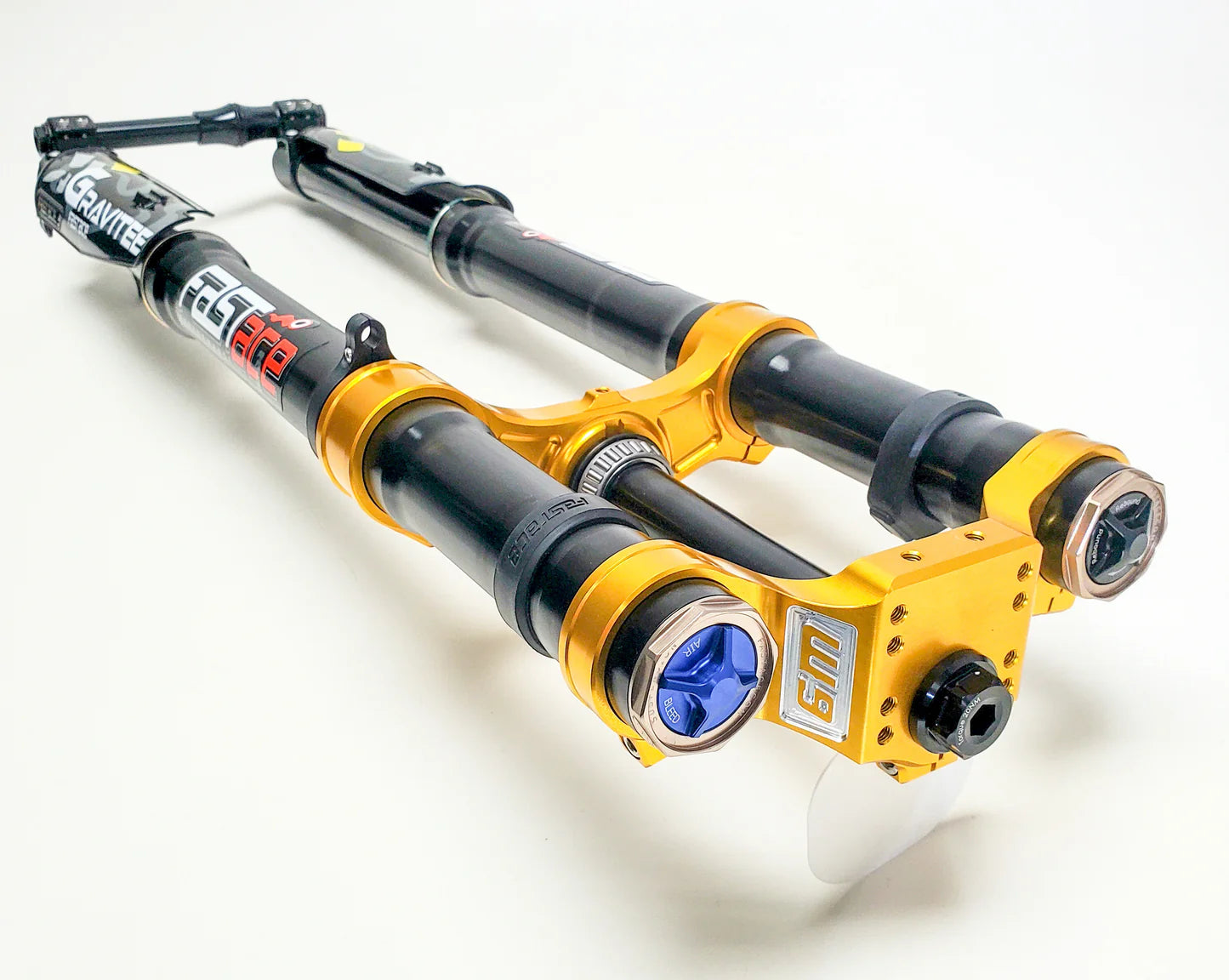

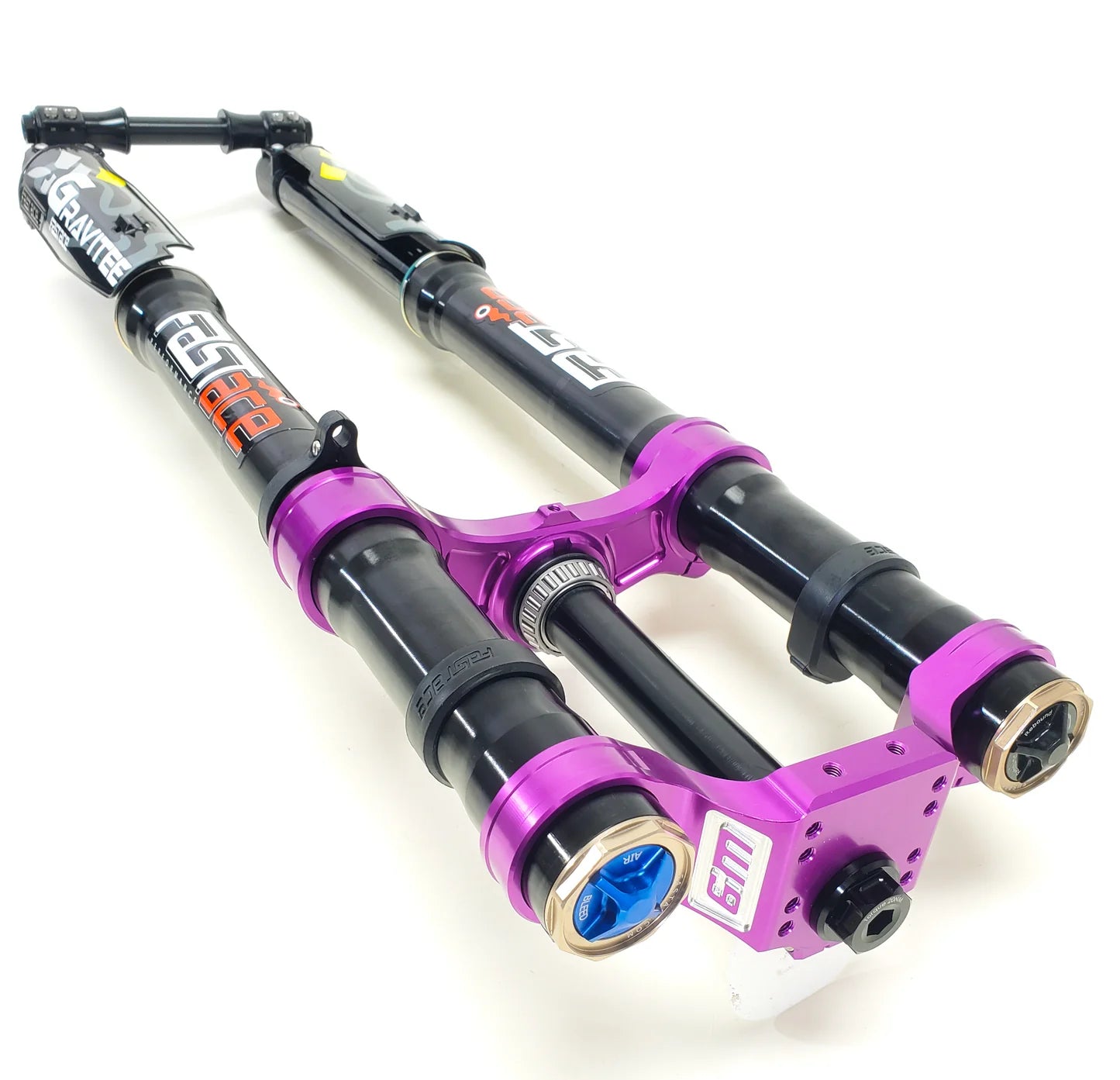

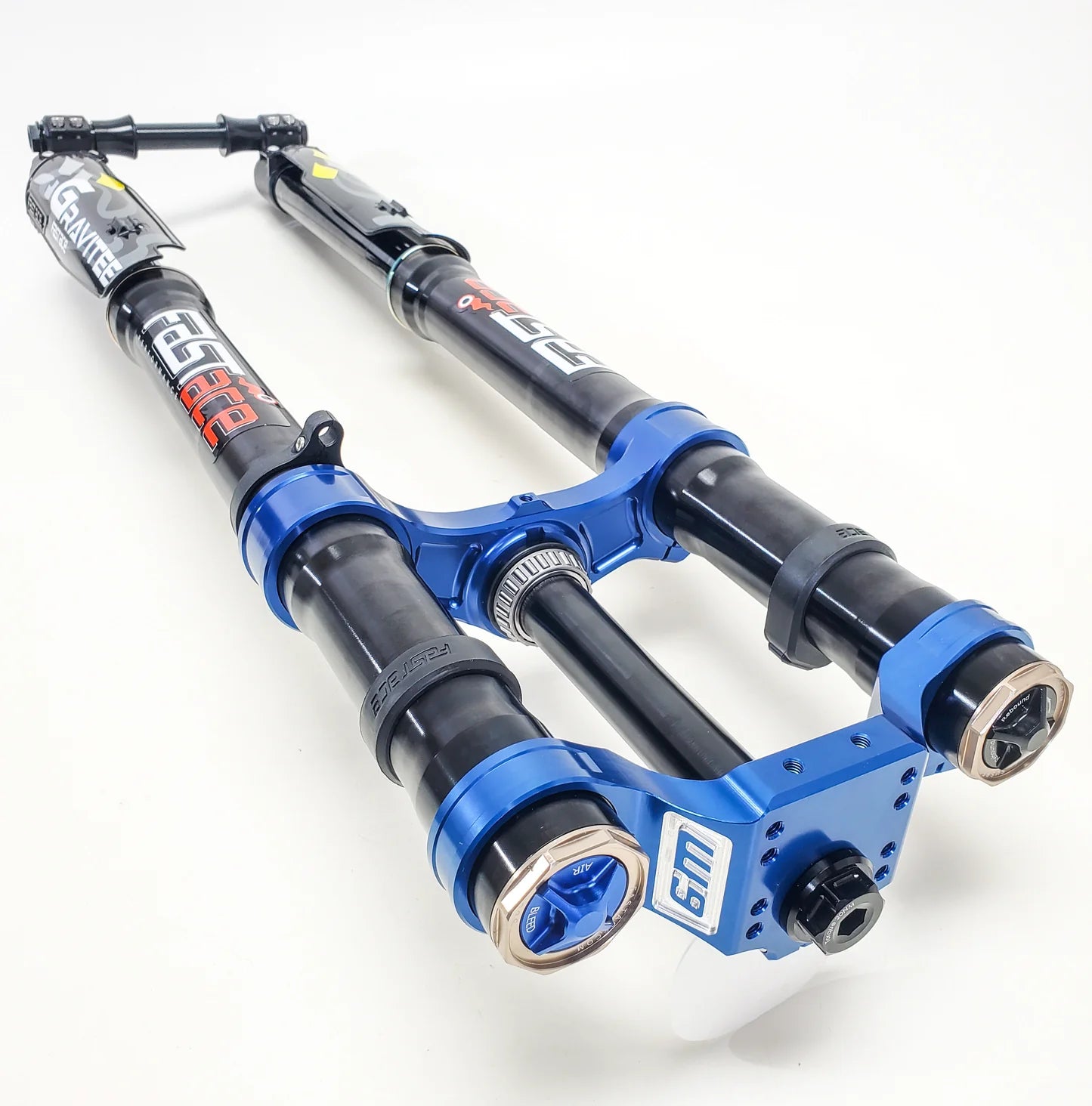

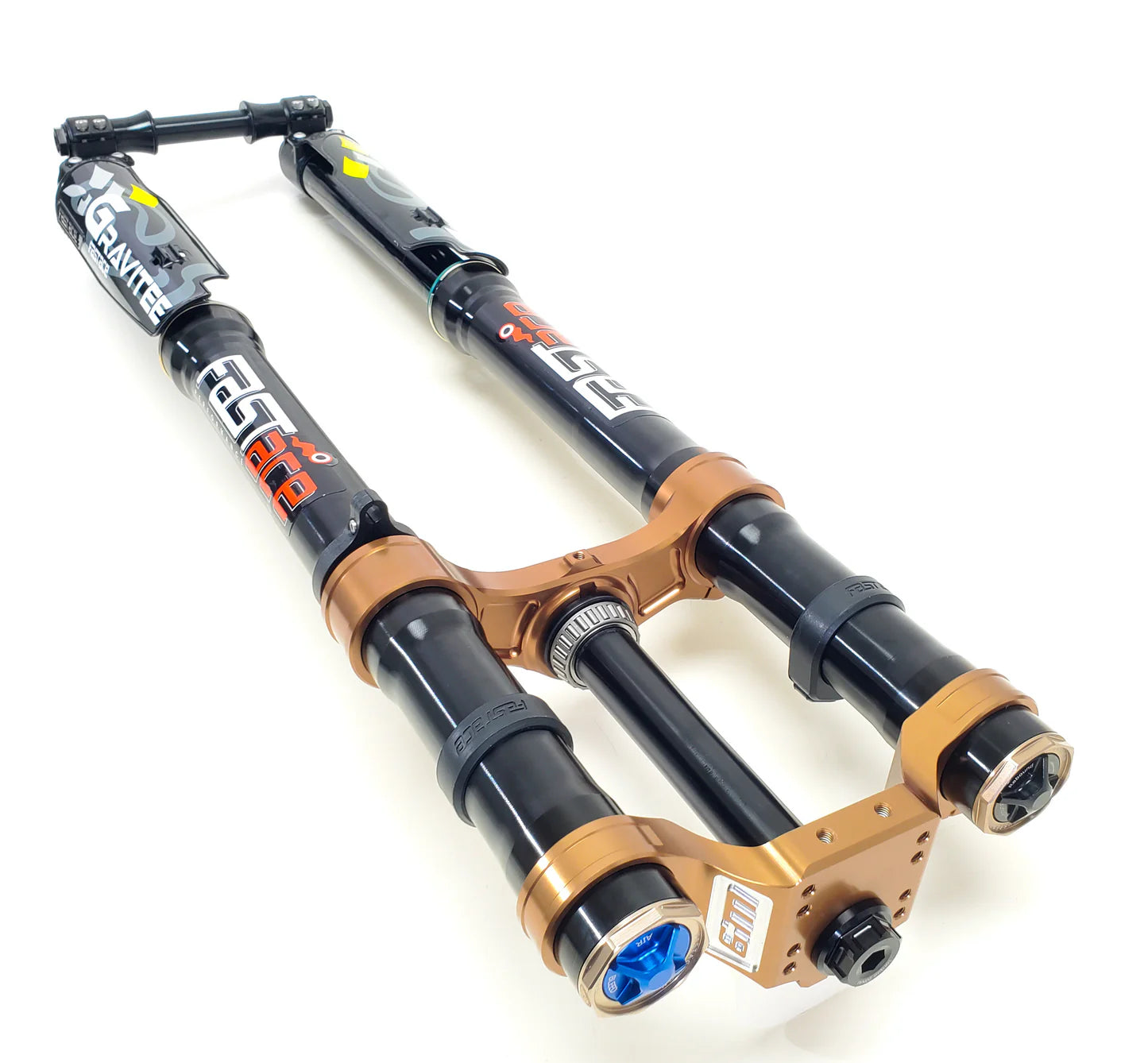

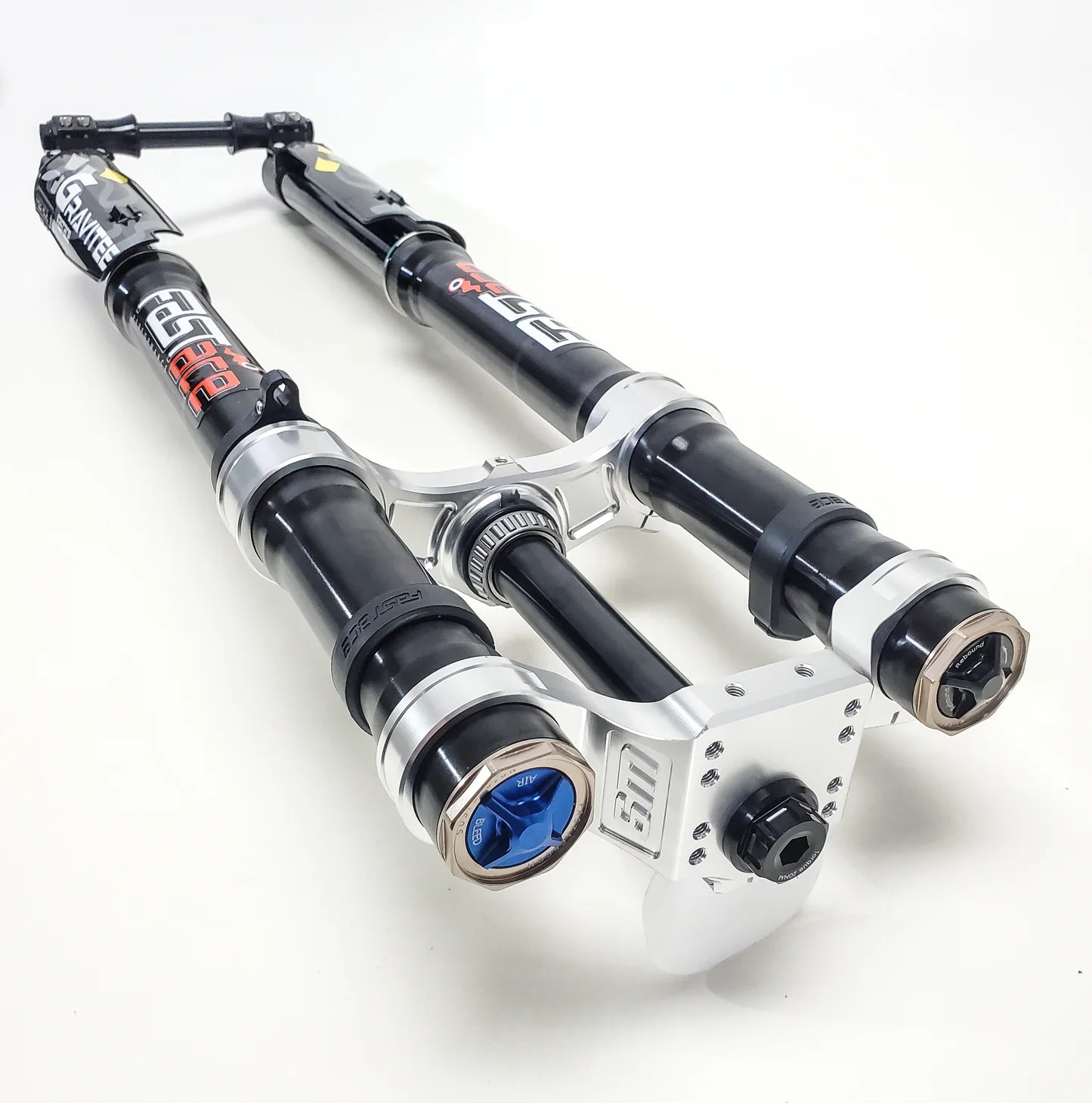

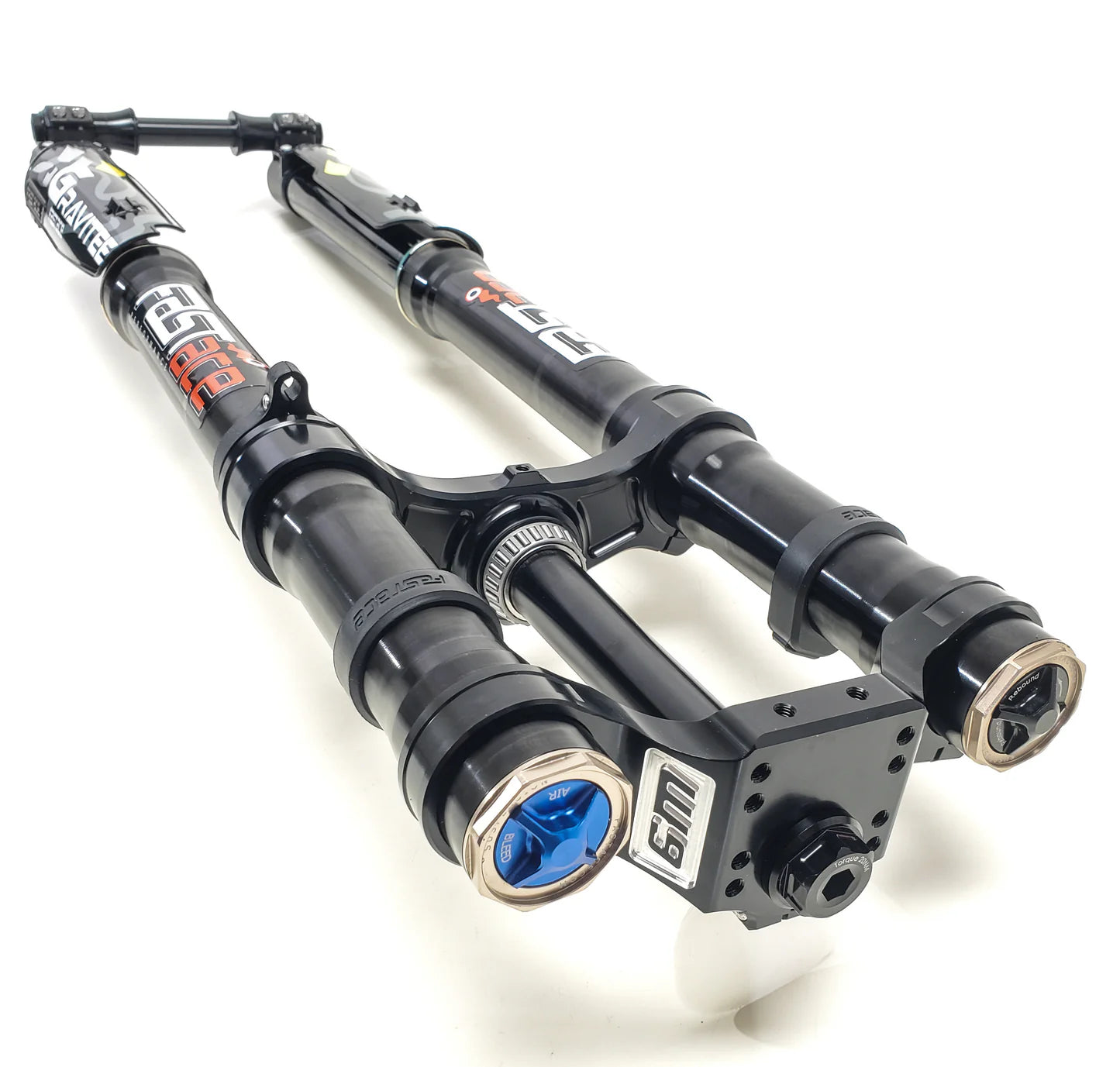

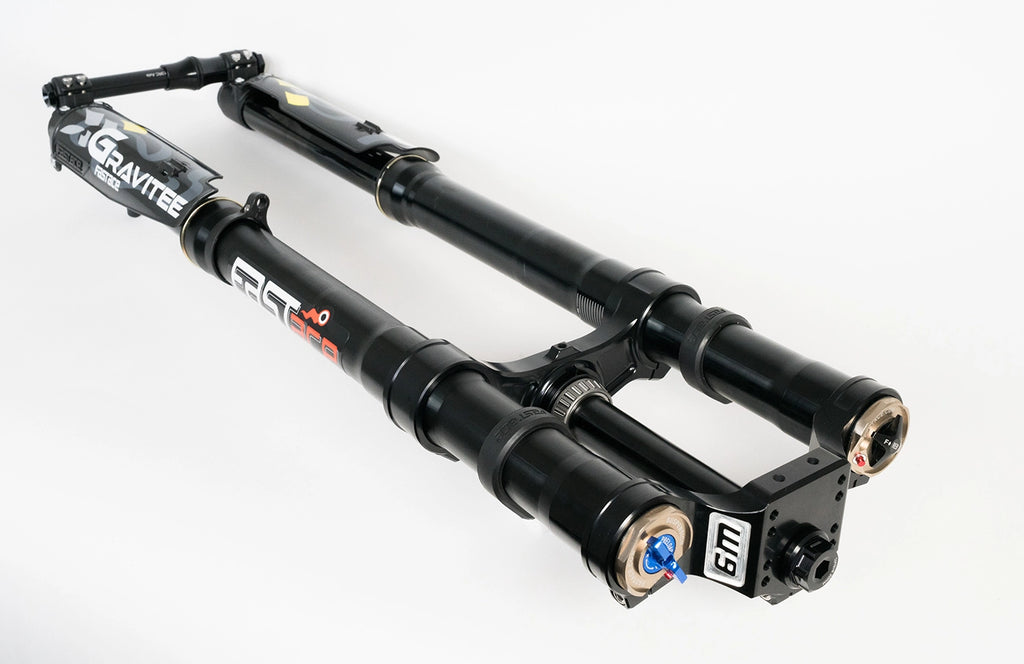

Elevate Your FastAce Fork Setup with Warp 9's Drop Crown Triple Clamps

Maximize your Fastace forks with Warp 9's Fastace drop crown triple clamps. Designed to improve tire clearance, steering geometry, offer more adjustability and increased strength over the stock clamps.

Key Features:

• Built for Strength: Crafted from 7075-T6 billet aluminum, these clamps are renowned for their exceptional strength-to-weight ratio. This ensures unrivaled durability and rigidity, capable of handling the toughest rides.
• Increased Tire Clearance: With a 20mm wider design, the Fastace Triple Clamps accommodate 90 width tires and provide ample clearance for upper tubes during compression. This wider stance is also compatible with Supermoto wheels and other wider tire setups, adding versatility to your bike.
• Drop Crown Design: The innovative drop crown design allows you to lower the fork tubes beyond the stock position, correcting steering geometry and restoring your bike’s head angles to stock specifications. This design removes the need for a steer lock system, integrating smoothly into your bike’s setup.
• Adjustable Bar Mounts: Featuring multiple bar mount hole locations, these clamps offer up to 10mm of forward or backward adjustment, allowing you to customize the positioning of your handlebars for the perfect riding position.
• Threaded Top Nut: The steering tube incorporates a motorcycle-style threaded top nut, this design ensures your headset bearings do not come loose. This robust design eliminates the need for a steer lock system.

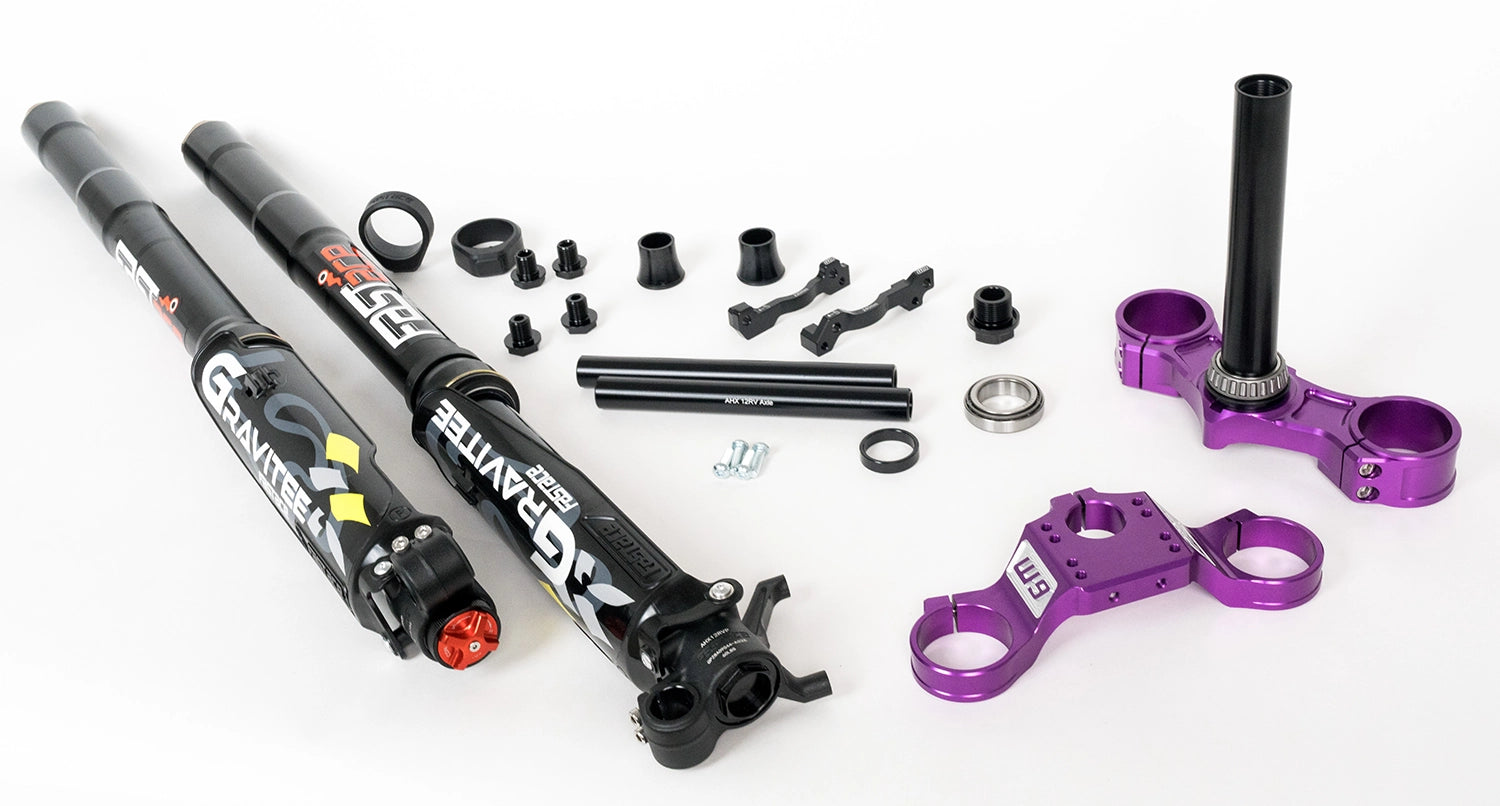

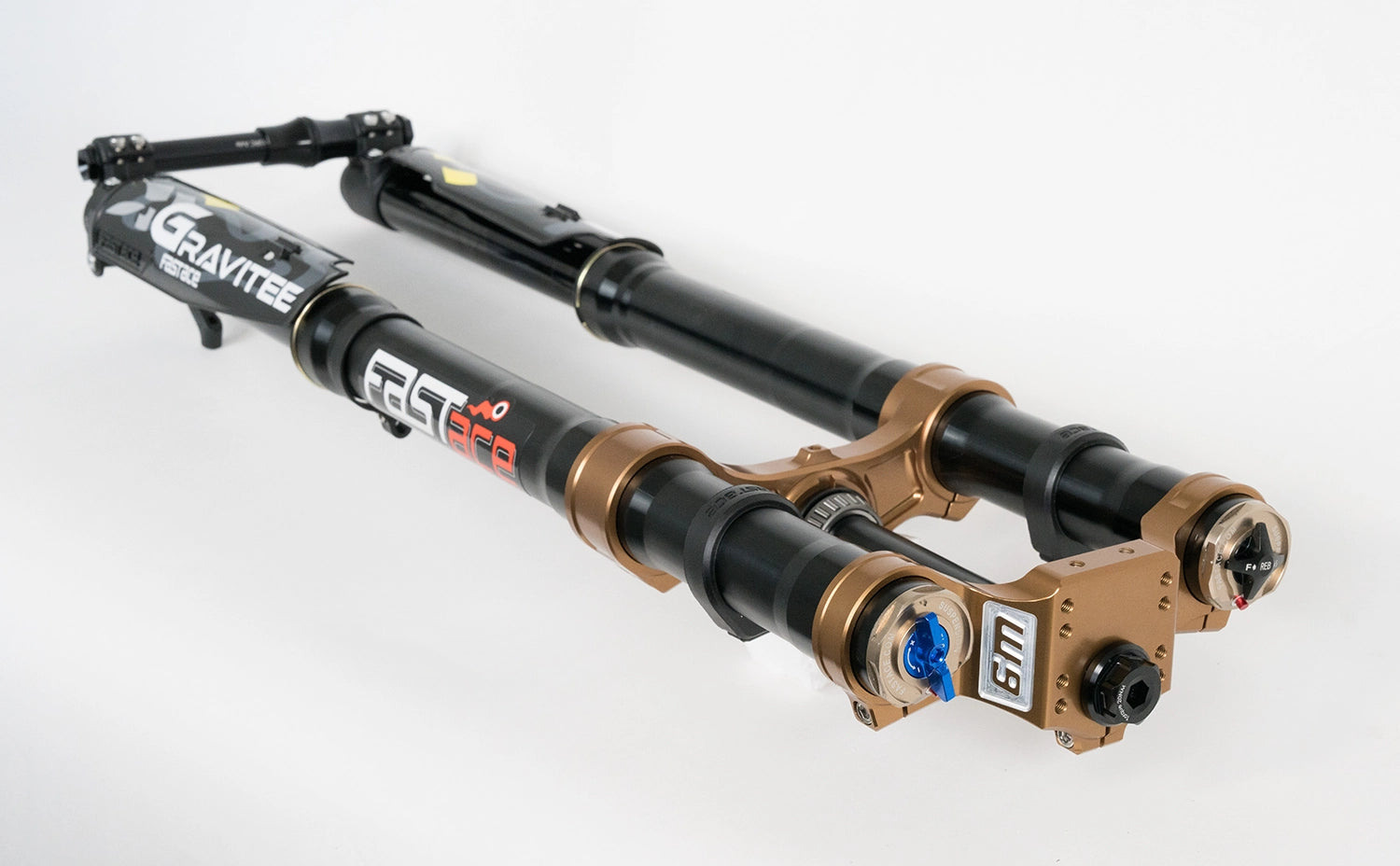

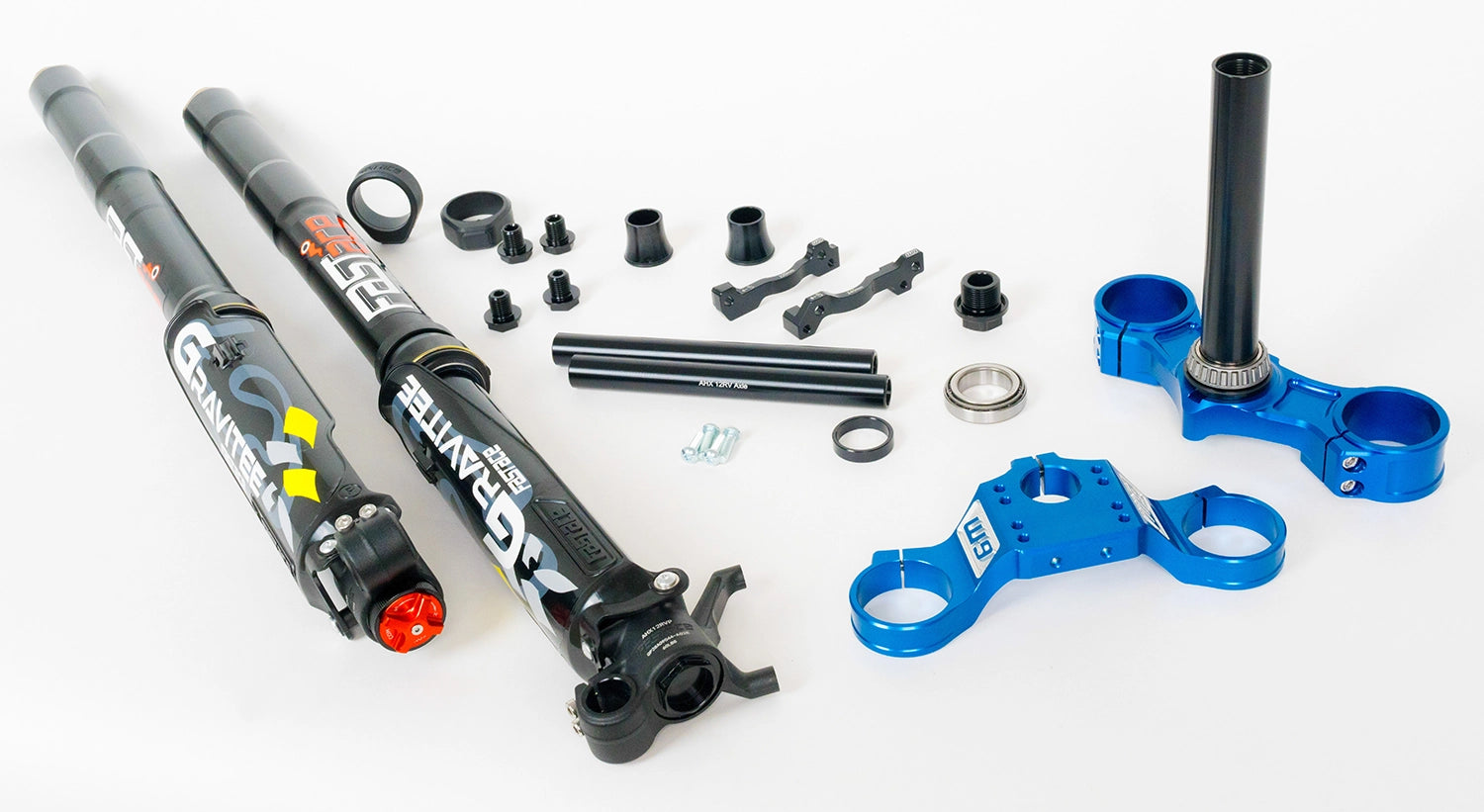

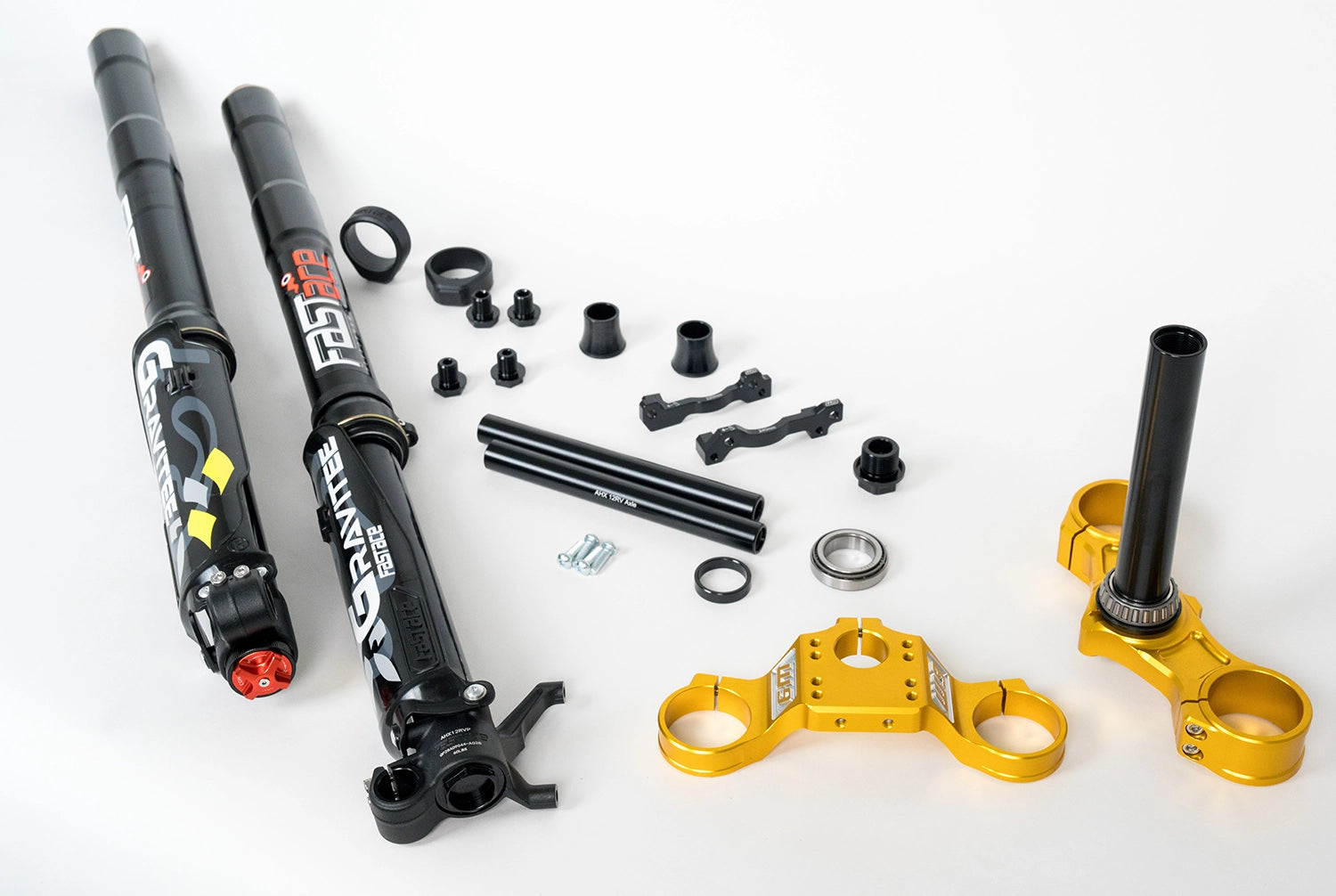

• Multiple Colors: Available in a range of vibrant colors including Black, Red, Blue, Magnesium, Gold, and Purple.
• Brake Brackets Included: Comes with offset brake caliper brackets compatible with 220mm and 240mm rotor sizes.
• Optional Brake Brackets: A 250mm Bracket will be an optional spring of 2025
• A Talaria MX5 Bracket will be an optional spring of 2025
• A Eride Pro 3.0 and SR will be available Spring of 2025
• V2 Updates: V2 add decorative machined reliefs on the clamp faces also reducing weight, and Headlight mounting holes are added to the front of the clamps giving you more options for headlight mounting.
• Compatibility: Specifically designed for the Talaria Sting MX3 / MX4, Sur-Ron Light Bee, Eride Pro and Falcon 79. Note: Compatible with Fast Ace Fork Models AHX12RV & ALX13RC. Not compatible with  Volar, MX5 or Rippin Moto brake systems.
• Will not fit OEM Talaria factory forks.
• Fits FastAce forks of 39mm stanchions, 48mm lower clamp area and 46mm upper clamp area (AHX12RV and ALX13RC)
