Description

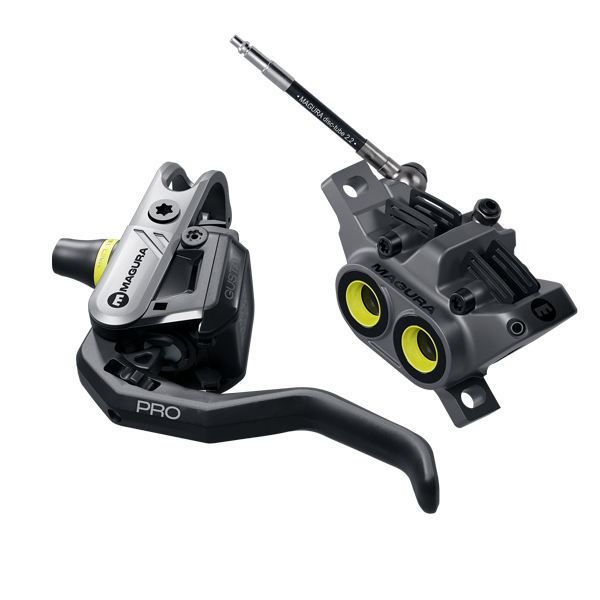

GUSTAV IS BACK!
Sold Individually with 2.5mm Brake Rotor Included
And we're going one better with this one. For the finest precision on the longest descents, later braking points, and less workshop time. Because sometimes size does matter, we have taken all parts to a new level. Perfect for E-MTBs and gravity tanks.
Massive 2.5 mm brake discs and 19 mm brake pistons provide a new braking sensation and keep you out of the workshop twice as long. If you do need to get down to work, EASY LINK makes all work child's play.
| Field of application | E-MTB, Gravity, SUV, Allroad |
| Rotor Thickness | 2.5mm |
| Color | Black, Grey |
| Weight | 348 g |
| Number of pistons | 4 |

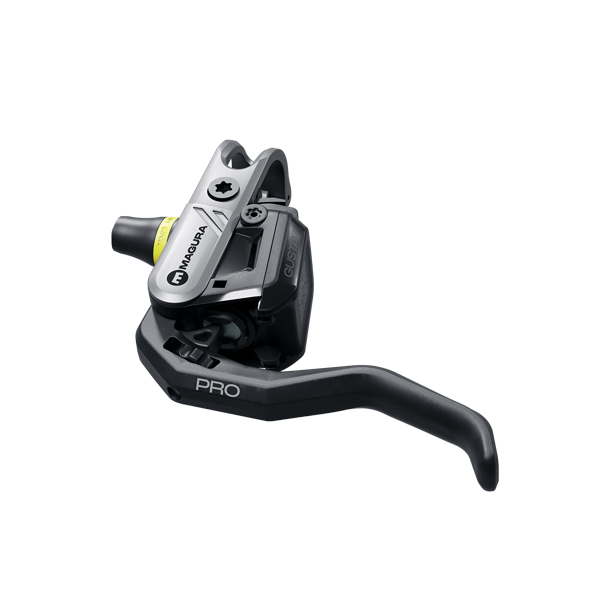

| Material brake master | Carbotecture |
| Lever | PRO brake lever, aluminium |

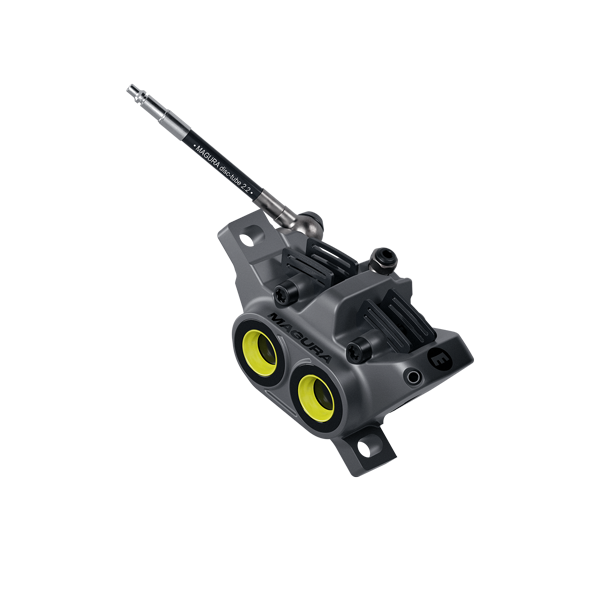

| Caliper | forged in one piece, aluminium |
| Brake pad | 13.S |
| Brake master cable connection | EASY LINK |
| Brake caliper cable connection | Rotating banjo |
| Reach Adjust | tool-free |
| Clamp clip | Integrated shiftmix option |
| Warranty | 5 Year leak-proof guarantee |
Plug'n play for your brake hose
The quick and flexible way to connect and disconnect a hose. And as often as you like. From this model year, EASY LINK will be integrated into the GUSTAV PRO and also available as a retrofit valve for MAGURA MT disc brakes.
MAGURA EASY LINK & EASY TUBE TECHNOLOGIES
WE´RE ALL ABOUT SLOWING THINGS DOWN. EXCEPT INSTALLATION!
We like to decelerate. But with two new technologies, MAGURA now presents two particularly fast alternatives to the classic clamping ring connection of brake lines and components. For particularly easy installation and maintenance.
Plug'n play for your brake hose
The quick and flexible way to connect and disconnect a hose. And as often as you like. From this model year, EASY LINK will be integrated into the GUSTAV PRO and also available as a retrofit valve for MAGURA MT disc brakes.

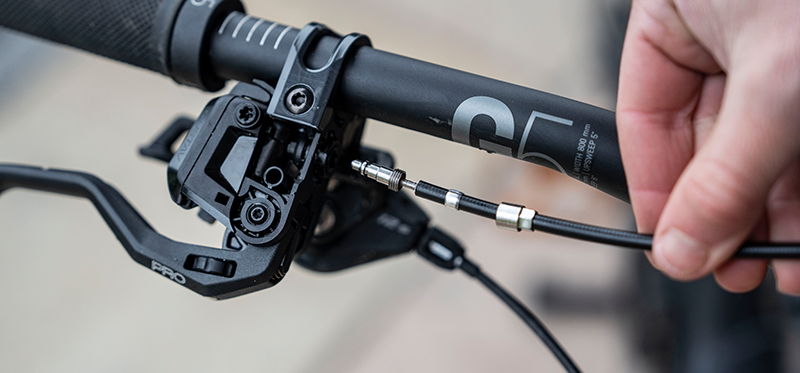

Quick initial installation
After installation, you can simply click the brake hose with EASY LINK into the brake master. Bleeding and other work steps are no longer necessary! Thanks to EASY LINK, we can deliver the brake calliper and brake master of the GUSTAV PRO separately and pre-filled. This makes it easier for you to replace them in the event of a defect or crash.
Easy maintenance

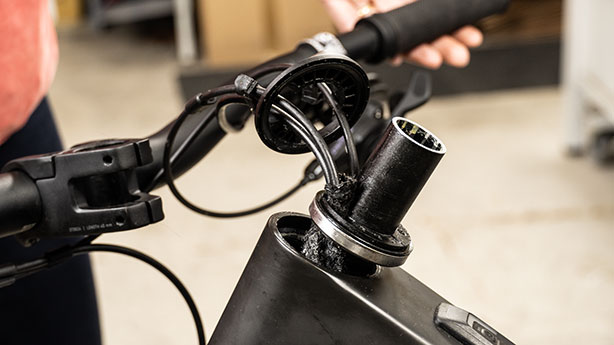

Have you ever tried to change the headset on a bike with headset cable routing? There are probably few jobs on a bike that can be so annoying. Open the brake, cut off the olive connection, unthread, reconnect the brake, bleed the brake. A horror if you don't yet have an EASY LINK!
With our new technology, you can now disconnect your brake components at any time and as often as you like. Simply pull the EASY LINK clip and you can pull out the hose.
EASY TUBE TECHNOLOGY (ETT)
Technology for creating hose connections
MAGURA presents the new EASY TUBE Technology (ETT) to make EASY LINK and other hose connections particularly easy to produce yourself.
All you need is a hose by the meter and the corresponding connection sets. This is not only more flexible, but also cheaper and less wasteful, especially for specialist dealers. From now on, retailers can assemble their requirements from a roll of yard goods to the exact centimeter and use them flexibly.
At a glance:

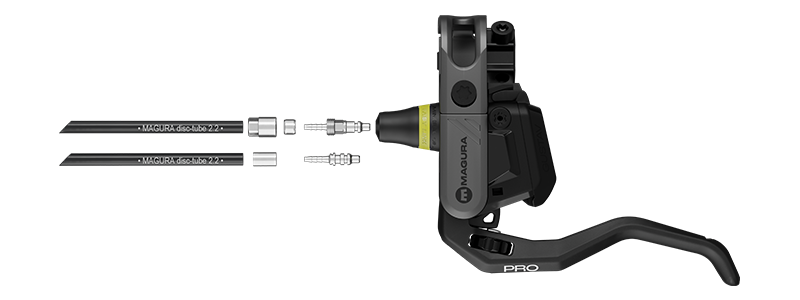

ETT cable connections for brake masters
MAGURA offers two options for making EASY LINK connections yourself. Screwed ETT connectors can be made without special tools. MAGURA also offers a mechanical crimping tool and an electronic version for making crimped EASY LINK connectors.

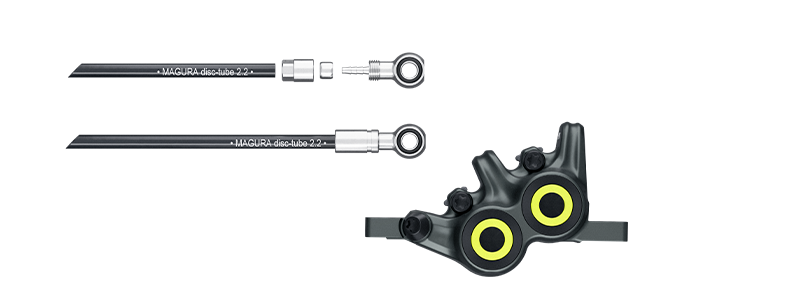

ETT brake caliper hose connectors
Screwed connectors can also be used to connect ETT brake calipers. Whether rotatable banjo or straight M6.

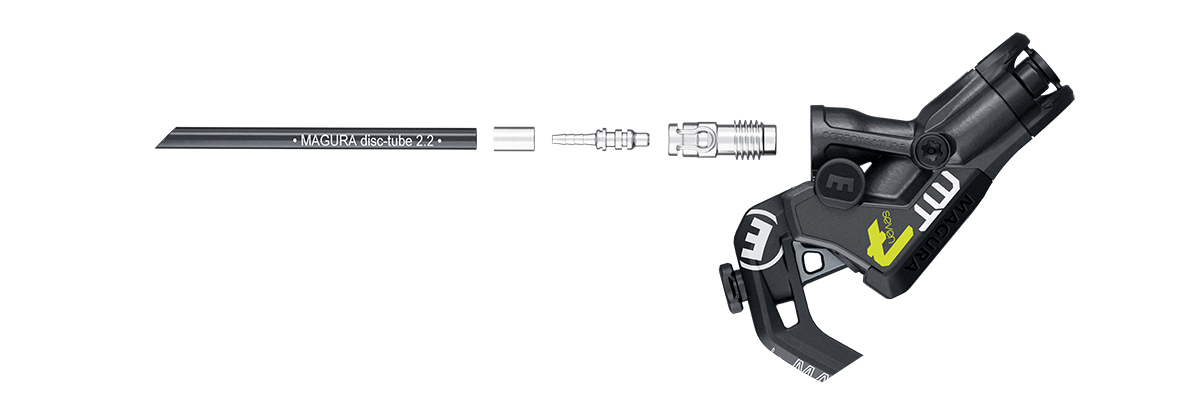

EASY LINK adapter
The GUSTAV PRO already has an integrated EASY LINK. All other MAGURA disc brakes can be adapted using EASY LINK valves (e.g., MT2 to MT8, MT C, CMe).
