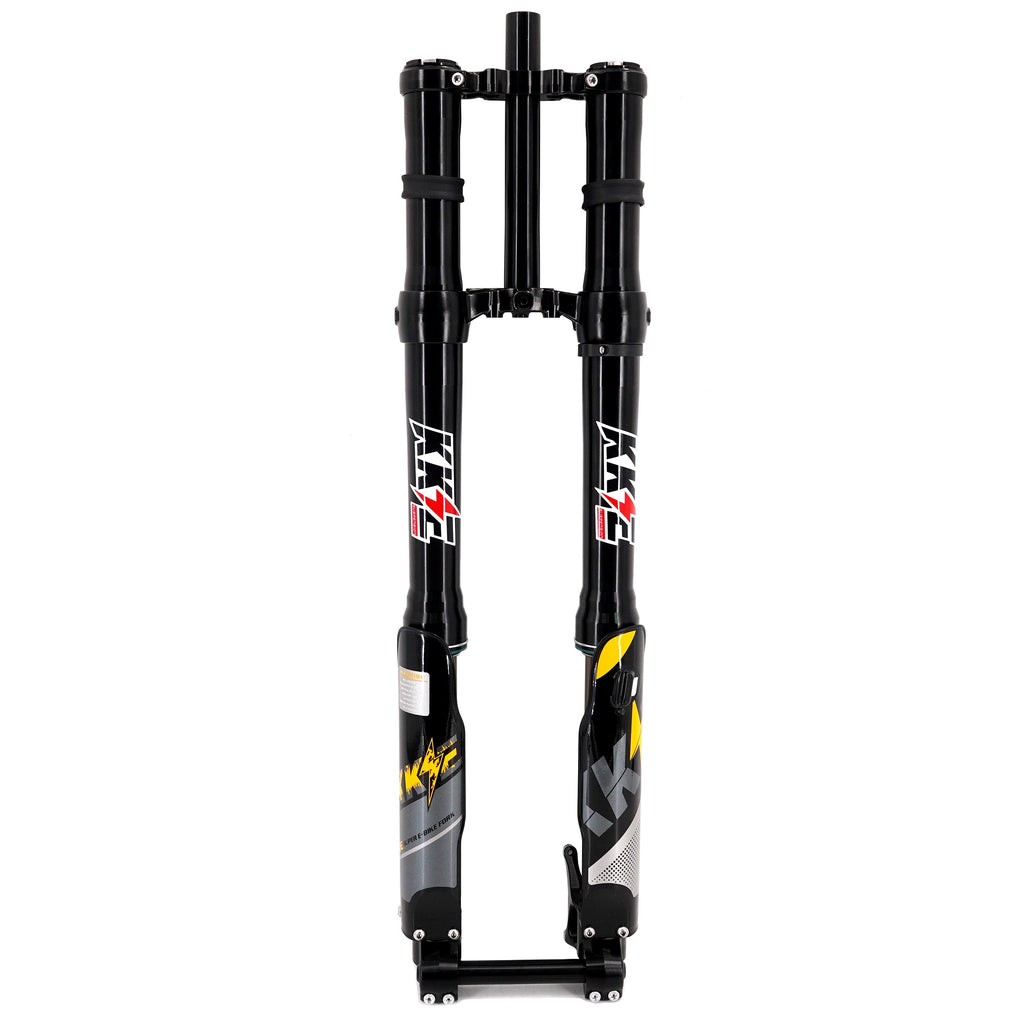

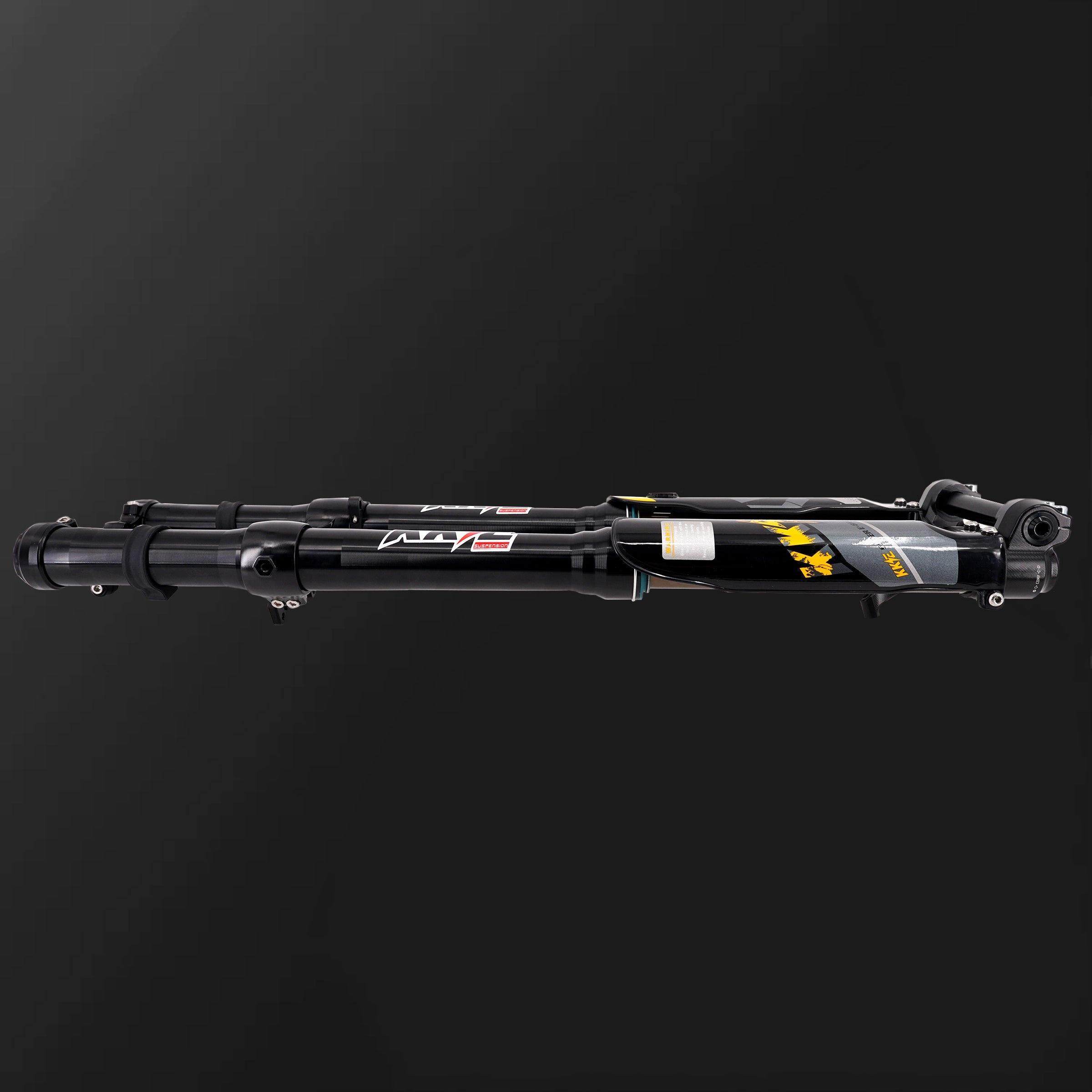

KKE Performance 37mm Front Fork For Surron, E Ride Pro SS, and Talaria Sting MX3 / R MX4
Our take on this fork: it’s massively built-up/stronger vs the OEM Surron fork, taller than most forks at 210mm of travel, and has SKF seals out of the box. This is a tremendous fork for the money.
With springs in both legs, this fork benefits from KKE's Ultra Bee Performance fork design (which is fantastic).
If you are NOT using a stem lock please be aware that a star nut is not included please be sure to either add one to your cart or purchase a w9 stem lock to your order.
Specifications:
- Weight: 5.3kg (include triple clamp set)
- Travel: 210mm
- Stanchion: 37mm Aluminum
- Adjustments: Compression, Rebound, Preload
- Axle: 20mm• Axle to Crown: 750mm @ 210mm of travel
- Coil Spring - 23Ibs in both fork legs (46lbs total)
Features:
- Lightweight designed fork leg with CNC-machined finishing, less unsprung mass, better handing

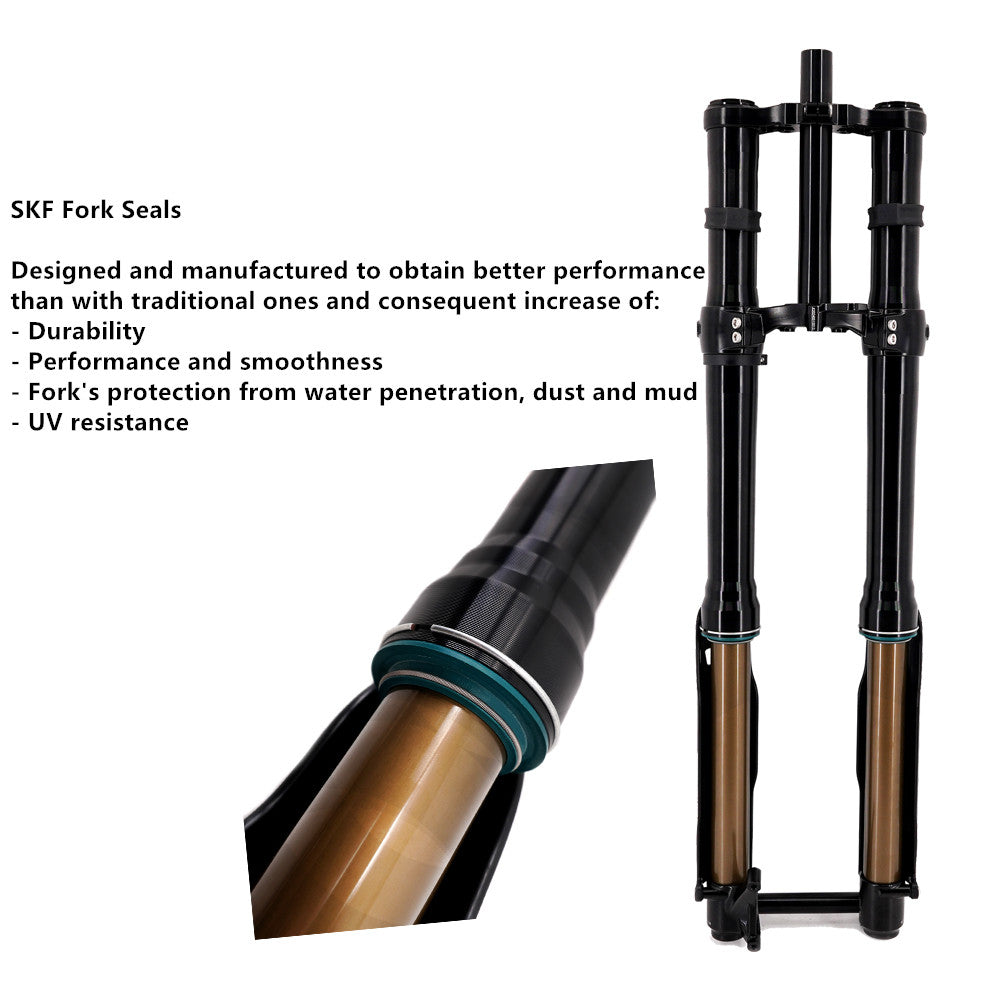

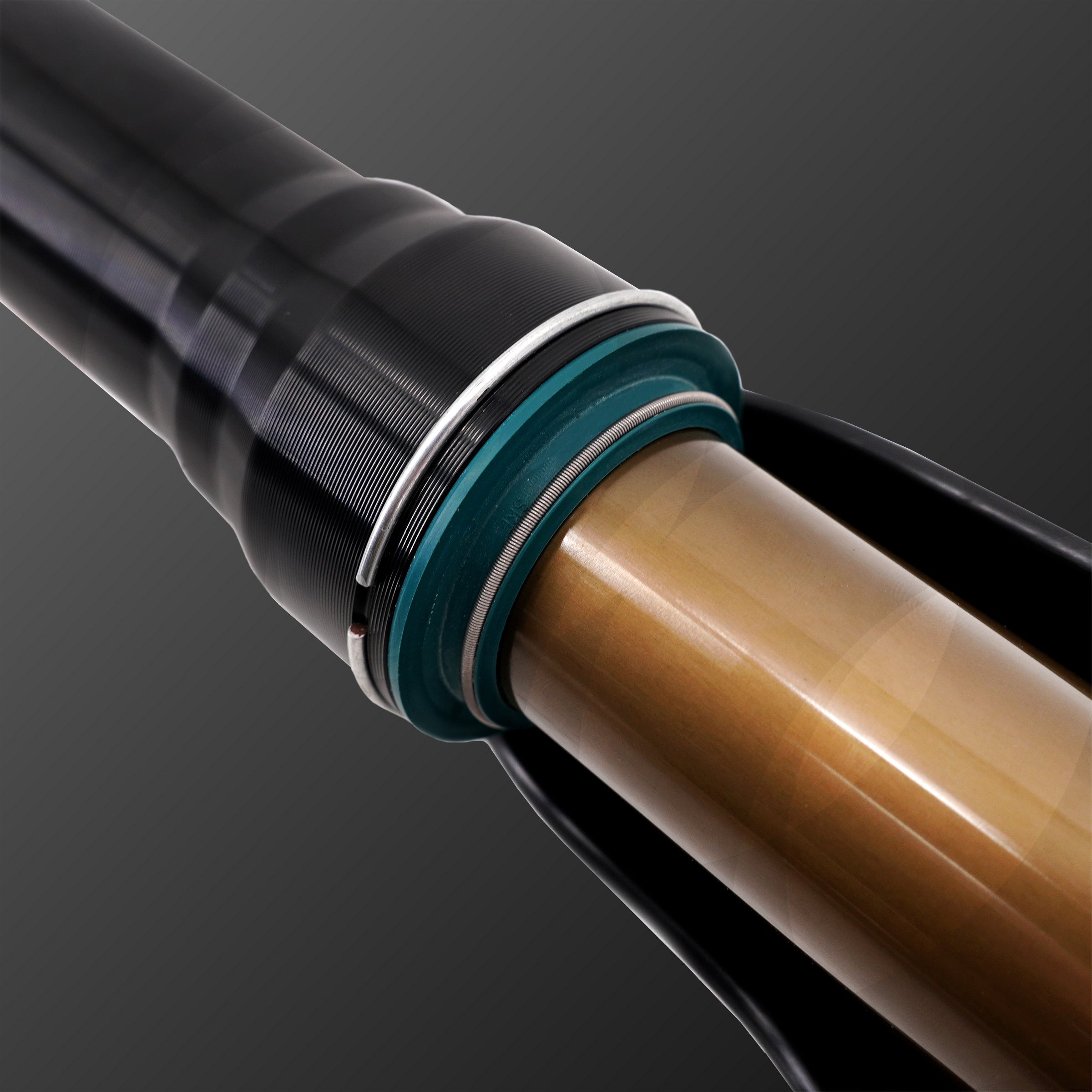

- SKF oil seals and dust seals for less friction smooth feel
- Alloy fork tube with DU-bushing guiding design, better stiffness and torsional rigidity
- 7000 alloy inner tube with hard-anodizing treatment surface
- Race-proven damping system with mid-valve stack and hydro stop function offering more progressive damping at the medium travel and more support at the end
- Every clicker of the compression/rebound / adjustment will find its way in different scenario
- CNC triple clamp ,less weight ,more stiffness ,better looking
Fits 175pounds~220 pounds Riders Weight
Fitment:
- Talaria Sting MX3 / MX4 / R
- E-Ride Pro-SS 2024
- Surron Light Bee
Specifications:

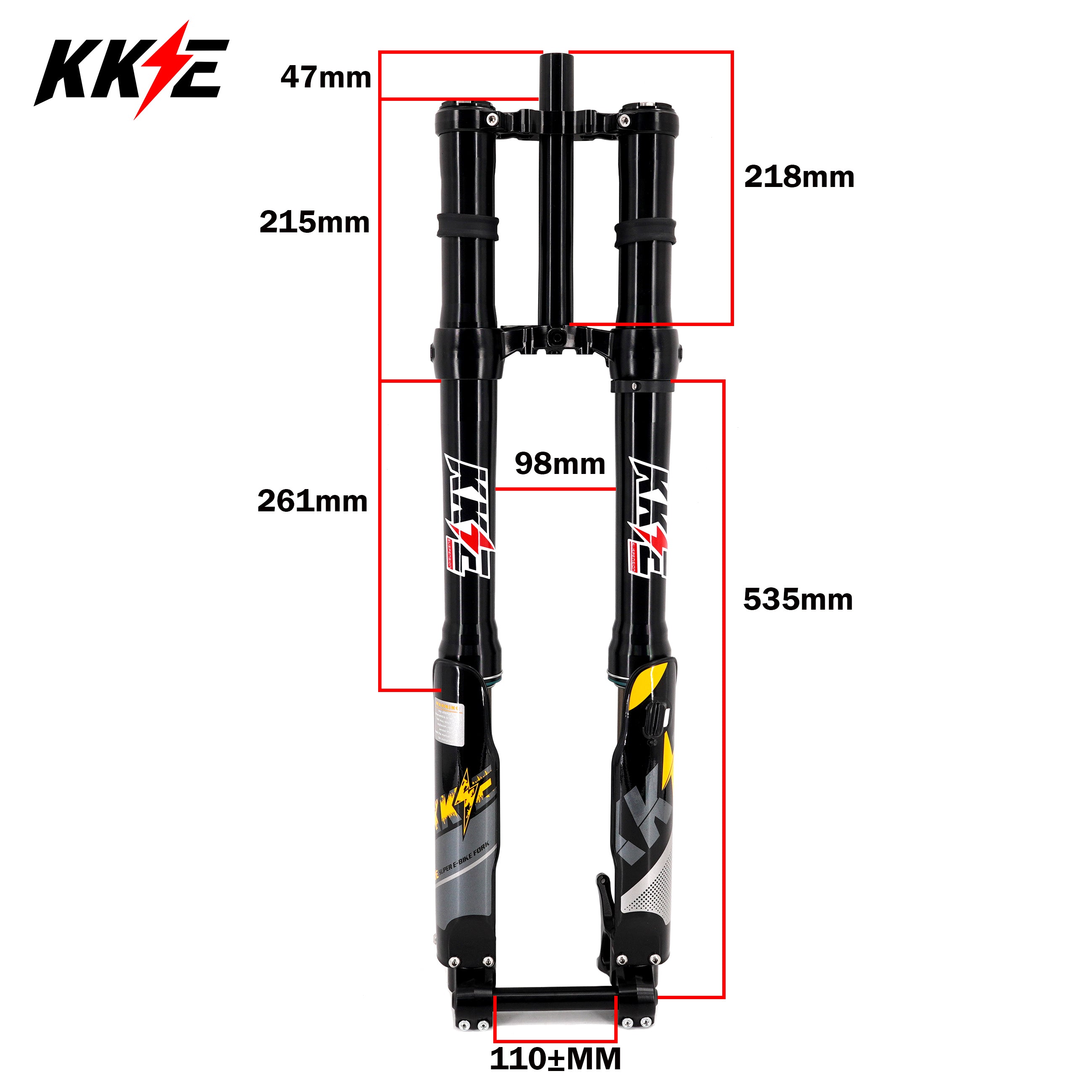

- Length （Axle to Crown): 750mm
- Travel: 210mm
- Fork Offset: 32mm
- For Rider Weight: 23lbs Spring Fit 175pounds~220pounds riders weight

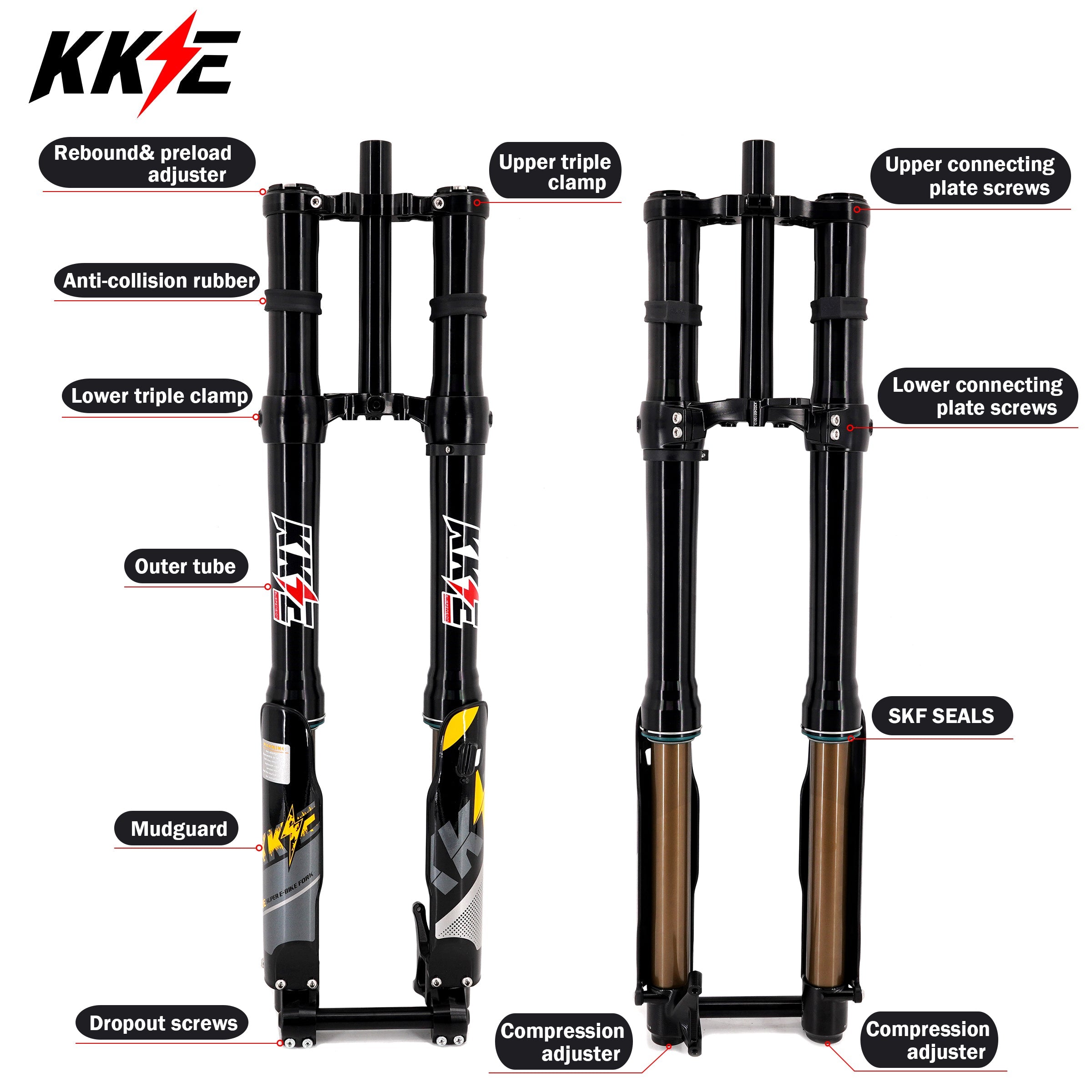

- Architecture: Upside down fork
- Stanchions: 37mm, 7000 aluminum hard anodized coating
- Outer tubes: 6069 aluminum, anodized black

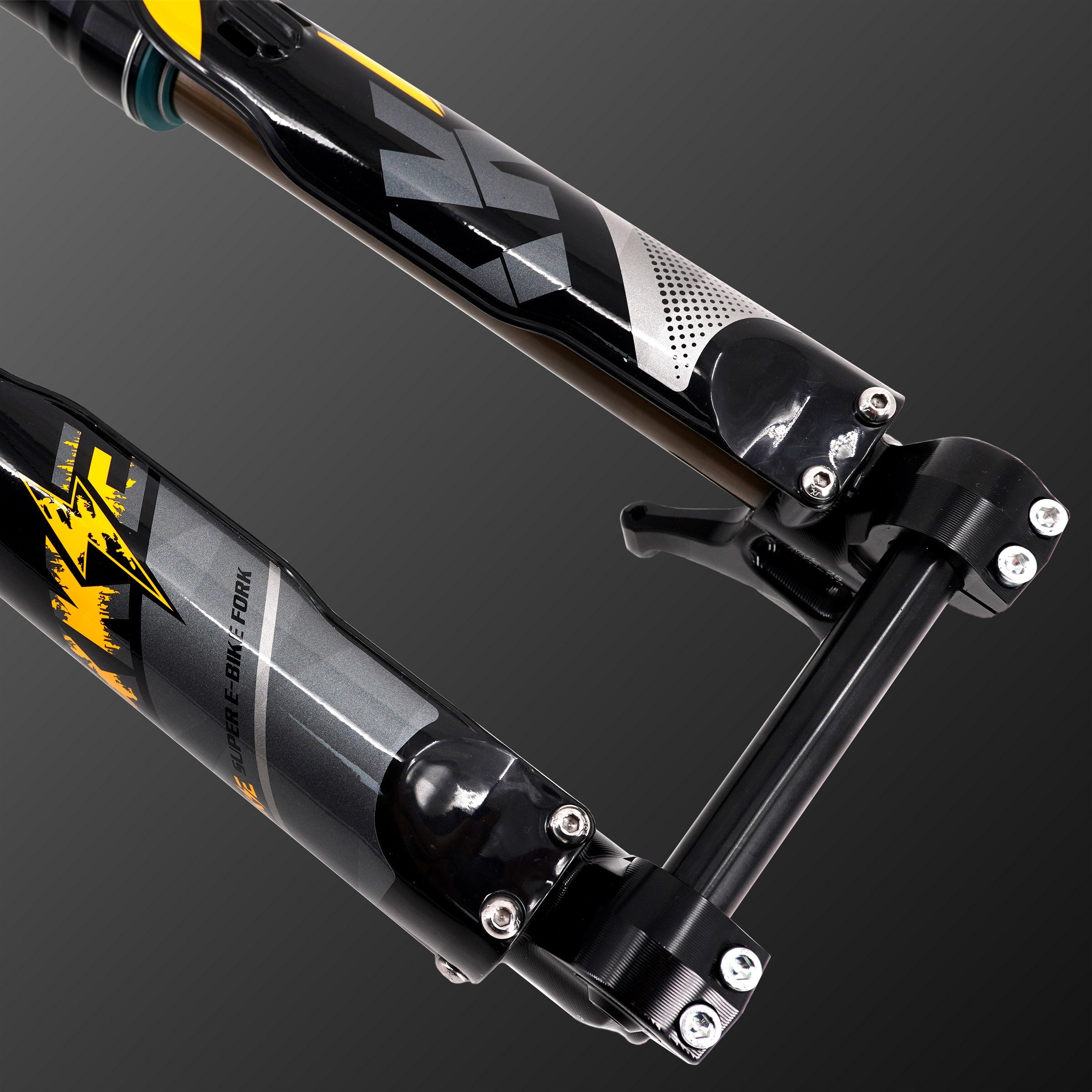

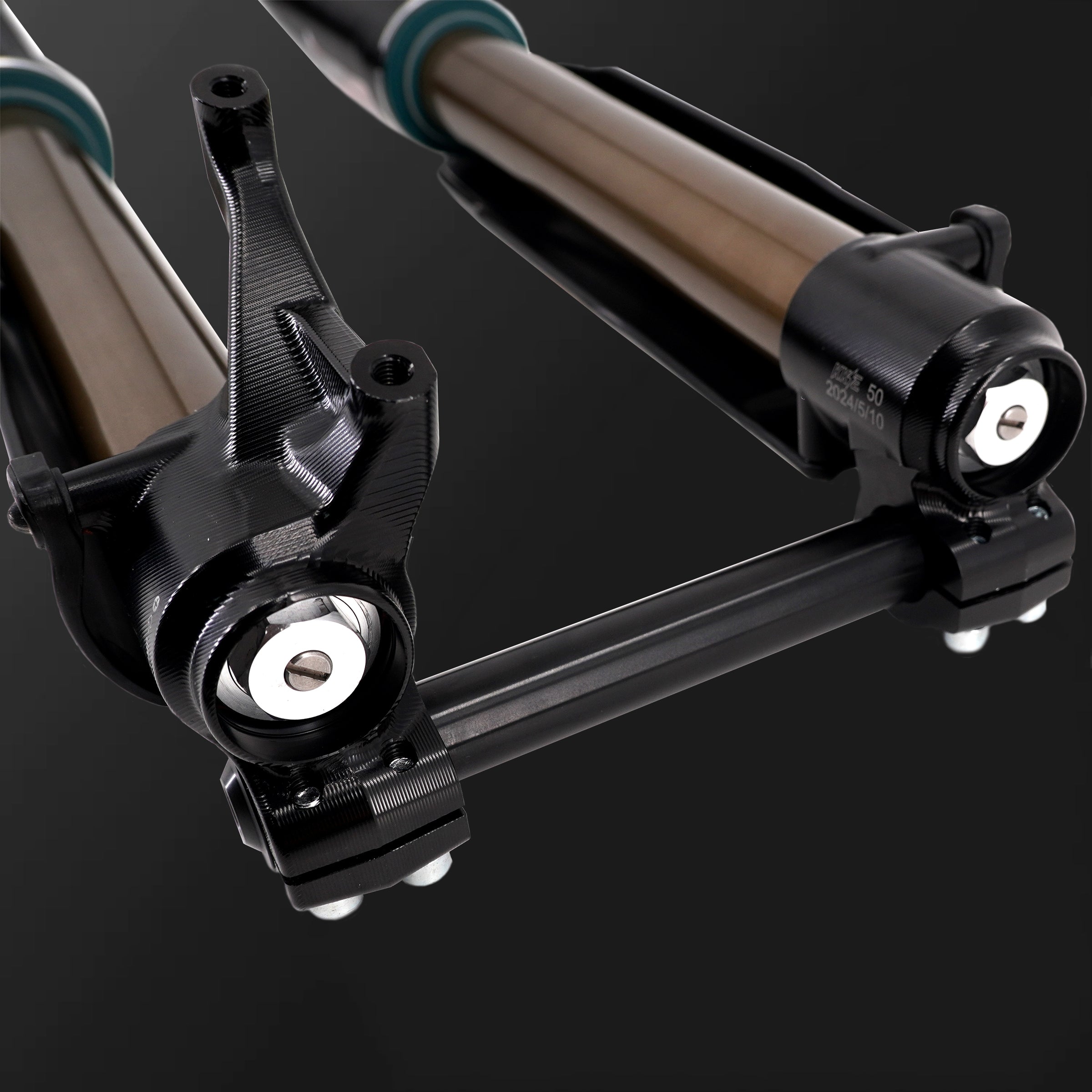

- Dropouts: 6061 aluminum, anodized black

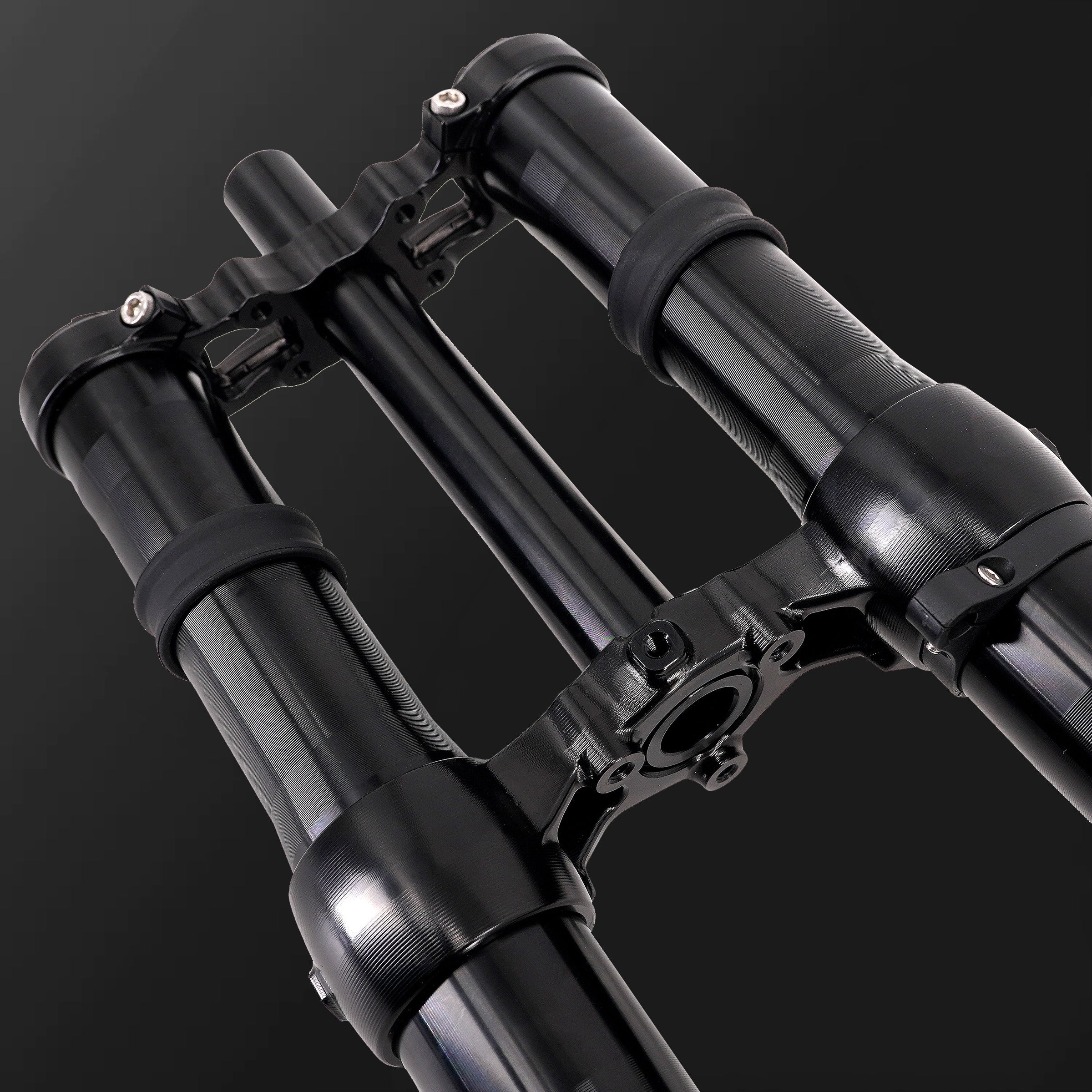

- Triple clamps: 6061-T6 aluminum, CNC-machined finishing
- Steer tube: 28.6mm,6061-T6 aluminum
- Damping: Symmetrical, adjustable open cartridge
-
Damper bodies: 7050-T6 aluminum, anodized coating
- Weight: 5.3kg(include triple clamp set)

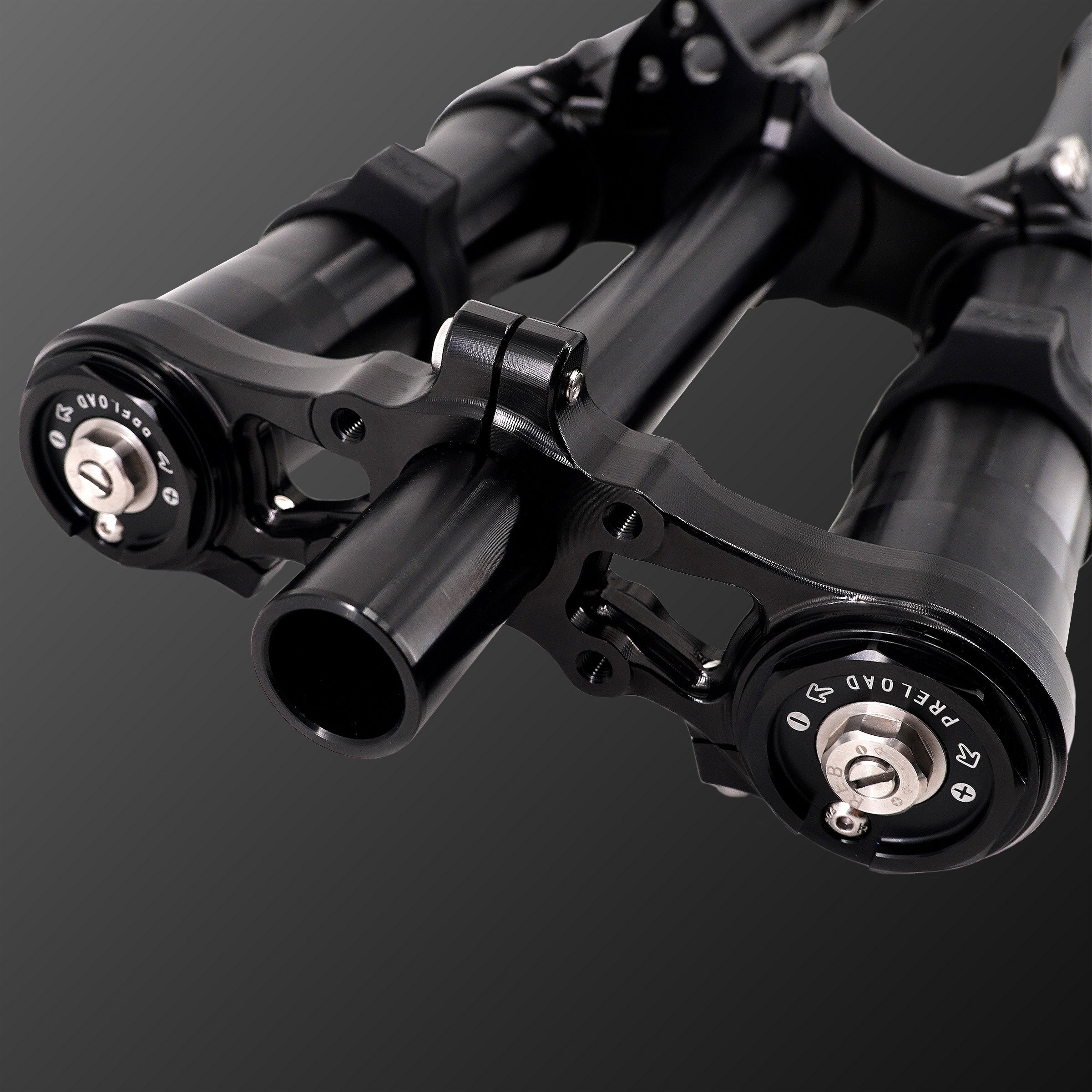

- Adjustments: Compression, Rebound,Preload
- Axle: 20mm• Axle to Crown: 750mm @ 210mm of travel
- Seals: SKF
- Guards: PP
- Spring: Coil
Features:
1. Lightweight designed fork leg with CNC-machined finishing, less unsprung mass, better handing
2. SKF oil seals and dust seals ,less friction ,more smooth
3. Alloy fork tube with DU-bushing guiding design ,better stiffness and torsional rigidity
4. 7000 alloy inner tube with hard-anodizing treatment surface
5. Race-proven damping system with mid-valve stack and hydro stop function offering more progressive damping at the medium travel and more support at the end
6. Every clicker of the compression/rebound / adjustment will find its way in different scenario
7. CNC triple clamp ,less weight ,more stiffness ,better looking
Recommendation for Riders:
- KKE Front Fork assembly with 23Ibs Spring Fit 175pounds~220 pounds Riders Weight
- Note: If you have any other request or over weight, please feel free to contact us for more details
Fitment:
- Fit Talaria Sting MX3 / MX4 / R
- Fit E-Ride Pro-SS 2024
- Fit Surron Light Bee
Package Included:
- Assembled Front Fork 1set
- Note: We matched left mudguard & right mudguard, Not installed!
Color:
-
Black
Placement on Vehicle:
- Front Fork
Maintenance:
Your fork requires periodic maintenance, cleaning, and inspection. Torque values of bolts and fasteners must be checked periodically, more often if riding in extreme conditions. To maintain top performance, it is recommended that the fork be periodically disassembled, cleaned, dried and re-lubricated.
SUGGESTED SERVICE INTERVALS FOR DORADO
(Extreme riding and harsh conditions may require more frequent service)
