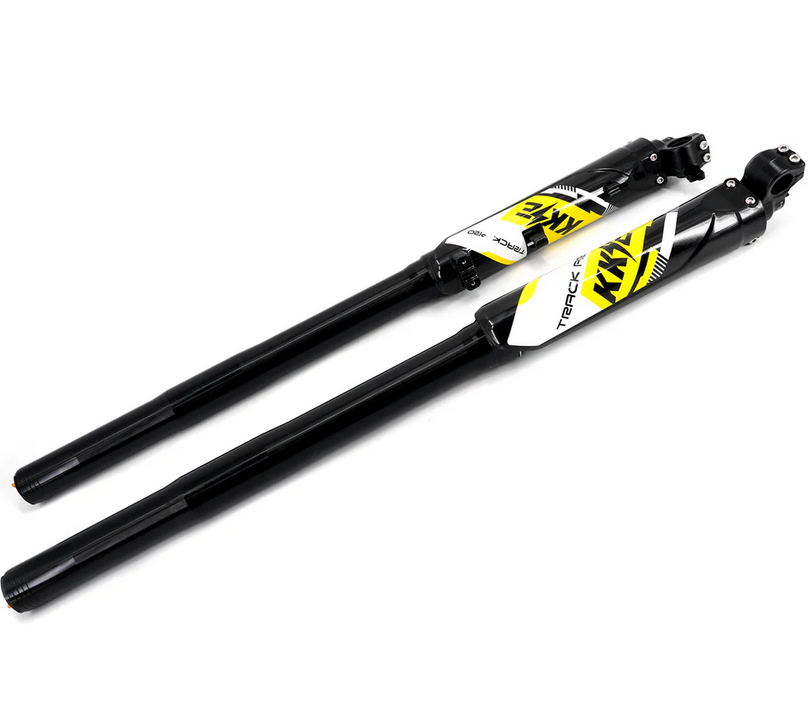

KKE Performance 37mm Closed Cartridge Front Fork
for Surron Ultra Bee!
Specification:
- Length: 850mm
- Weight: 6.3kg (excluding triple clamp)
- Travel: 235mm
- Stanchion Diameter: 37mm aluminum alloy
- Axle Size: 20*24mm
- Triple Clamp Clamping Size: 46x50mm
- Spring: 22lbs per side
- Adjustment Range: 18+/-2 gears
- Floating spring: 60lbs on each side
- For Rider Weight: 44lbs Spring (22Ibs on each side) Fit 167-187lb rider weight
- Outer Tubes: 7050-T6 aluminum, anodized black, DLC coating
- Dropouts: 6061-T6 aluminum, anodized black
- Damping: Symmetrical, closed cartridge
- Seals: SKF

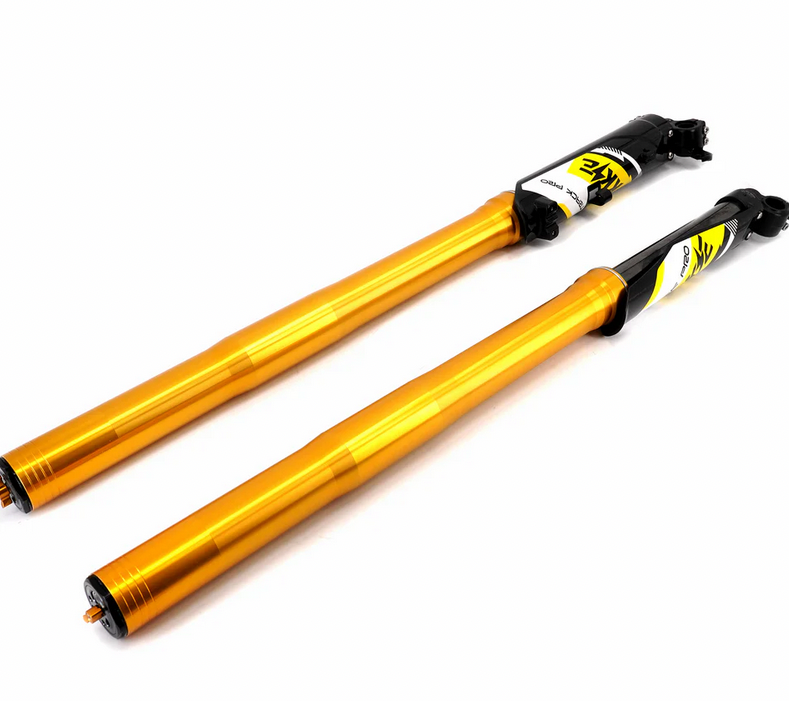

Note for the Gold Forks: The surface treatment process of the black part of the fork tube is DLC coating.
There is a layer on the surface, which will leave marks after contact with hands. But after wiping it with shock-absorbing oil-absorbing paper, it will be very bright and clean.
Feature: KKE 37mm Upgraded Front Fork delivers:
Long Travel
- With an extended 235mm suspension stroke, the front fork can absorb more impact energy when encountering bumps, potholes, or jumps. This effectively disperses shocks, enhances riding comfort, and minimizes the risk of bottoming out.
Premium Materials
-
Outer Tubes: Crafted from seamless 7050-T6 aluminum with an anodized coating, offering exceptional strength, impact resistance, and corrosion protection.
-
Dropouts: Forged from 6061-T6 aluminum with anodized coating, ensuring lightweight durability and long-term reliability.
High-Performance Design
-

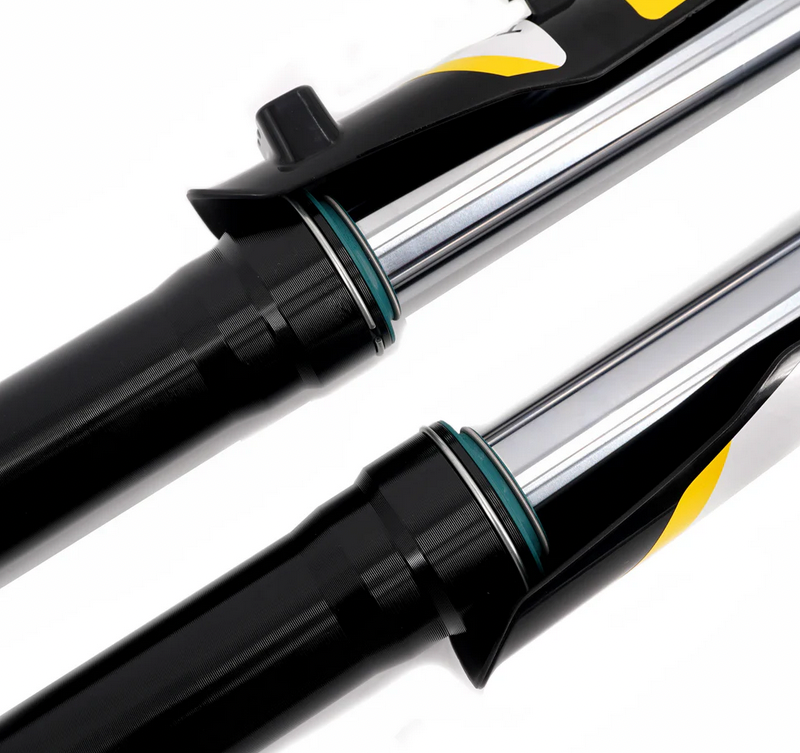

Closed Cartridge & SKF Oil Seals: The closed-cartridge design and SKF oil seals provide superior sealing to block contaminants. Paired with an internal floating piston damping system, this ensures unmatched stability and consistent performance.
-
Symmetrical Construction: Balanced damping and springs on both sides enhance handling precision and stability across all riding conditions.
External Adjustments

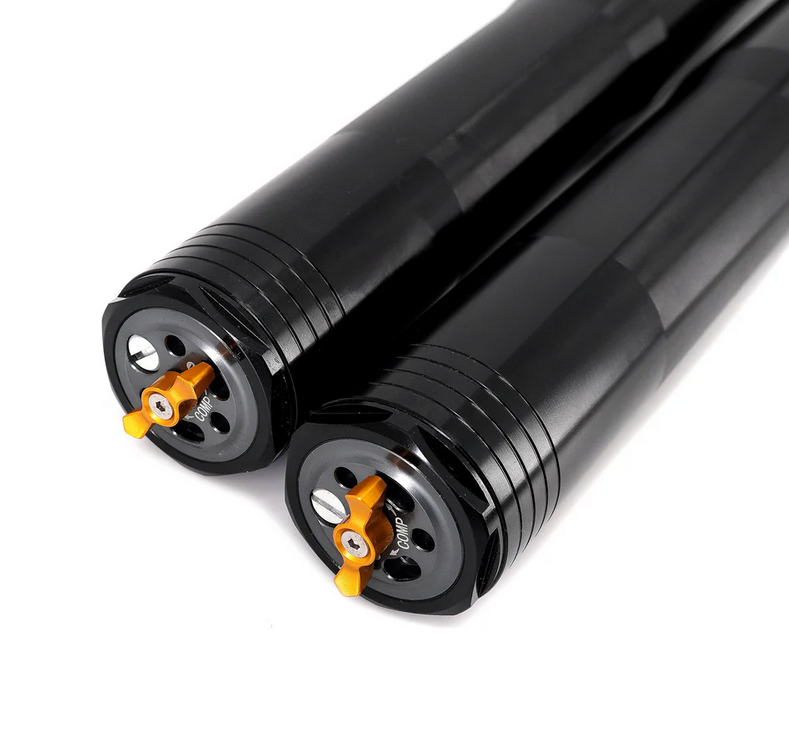

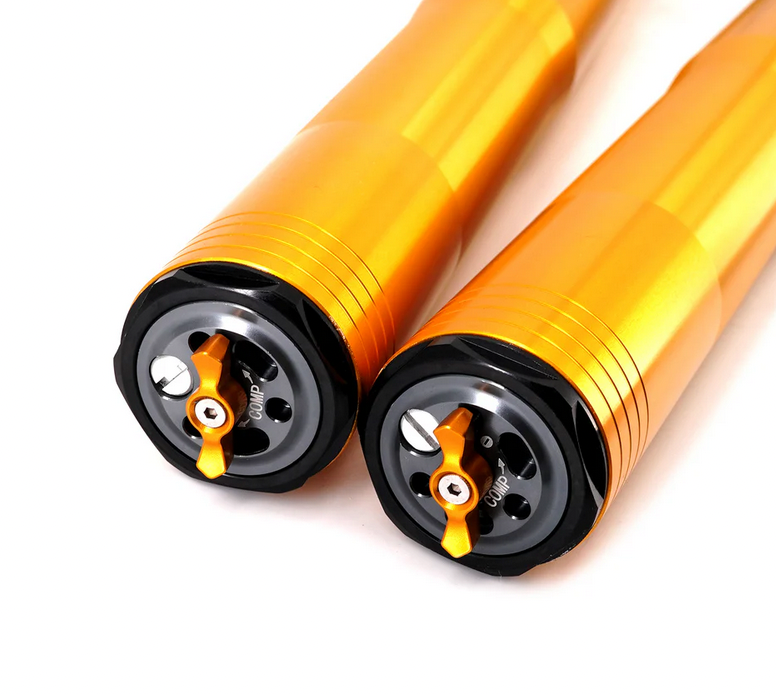

Compression and rebound are adjusted by easy-to-operate manual knobs. Adjustments allow riders to fine-tune the fork’s behavior to match their riding style and terrain, optimizing both comfort and control.
This refined front fork system combines cutting-edge engineering with rugged durability, making it the ultimate choice for riders who demand peak performance.
Major upgrades over the stock OEM Ultra Bee forks:
1.Advanced Upgrade: Dual-Chamber Structure, the innovative dual-chamber design delivers:
-
Precision damping control for smoother responsiveness.
- Enhanced resistance to extreme impacts and heat buildup.
- Superior contamination resistance, ideal for competitive racing and harsh environments.

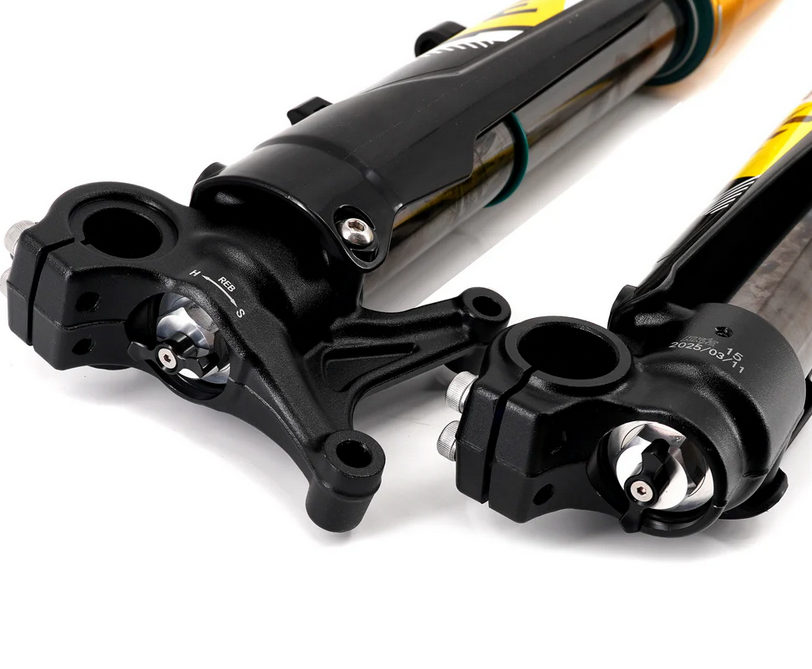

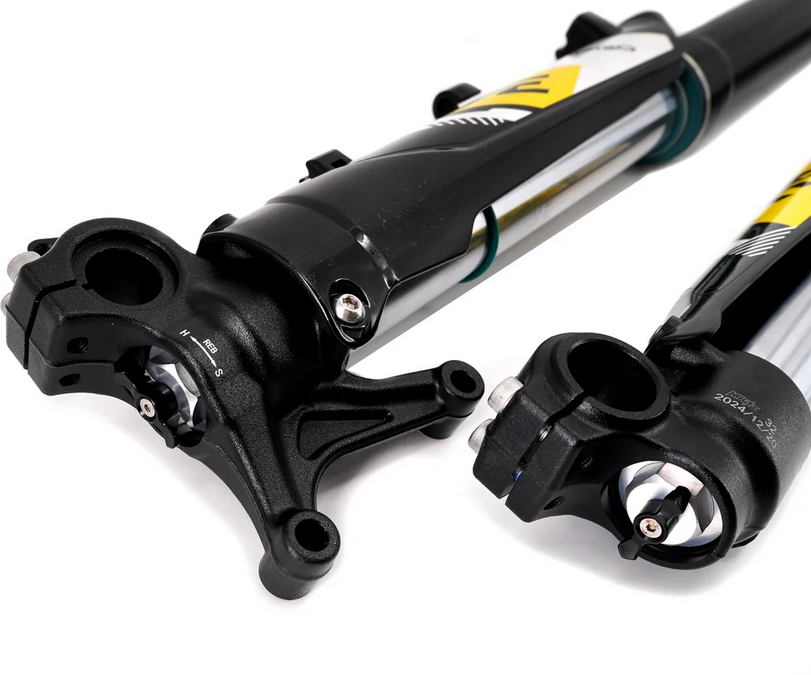

2.Compression on the top, rebound on the bottom
Recommendation for Riders:
-
KKE Front Fork assembly with 44lbs Spring (22Ibs on each side) Fit 165lb-190lb Riders Weight
- Note: If you have any other request or over weight, please feel free to contact us for more details.
Recommended Usage Scenarios:
-
Complex Road Conditions (0-6 rebound & 0-6 compression)
-
Professional Tracks (6-12 rebound & 6-15 compression)
-
Special Terrain (12- 18 rebound & 15-18 compression)
Important Notes:
- Only use original KKE replacement parts for repairs and replacements.
- Unauthorized modifications or use of non-original components may cause damage or safety hazards.
- Installation and adjustments should be performed by a professional technician.
Fitment:
-
Fit Surron Ultra Bee
- Fork tubes only! You will reuse your existing OEM triple clamps
