Description
MT5, 2-FINGER ALUMINIUM LEVER BLADE
Brake your bike. Not your skills.
The MT5 offers excellent braking performance at an unbeatable price. Put an end to imprecise braking and experience the ultimate braking power of the award-winning MT5. Whether in bike parks, in enduro use, on your home trail, or in the city and all-road sector, the MT5 offers optimum modulation and stability in all situations.
Commute safely to work or enjoy challenging trail tours. Get the most out of yourself with the perfect combination of value for money and reliable performance.

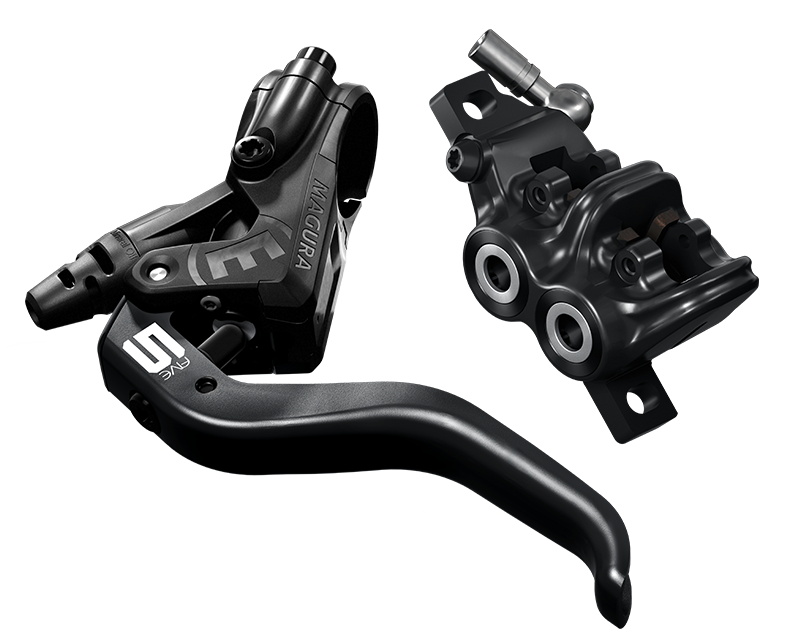

MT5, 2-Finger Aluminium Lightweight Lever Blade
ETA - late May. Check out our MT5 with the HC1 lever blade. Offer them full gravity power at an entry-level price—perfect for price-sensitive gravity pilots! All the genes of the MT7 are in our MT5 model for downhill and enduro use. Whether in bike parks, enduro trails, or home trails, the MT5 is up to all challenges—and a powerful partner for e-bikes.

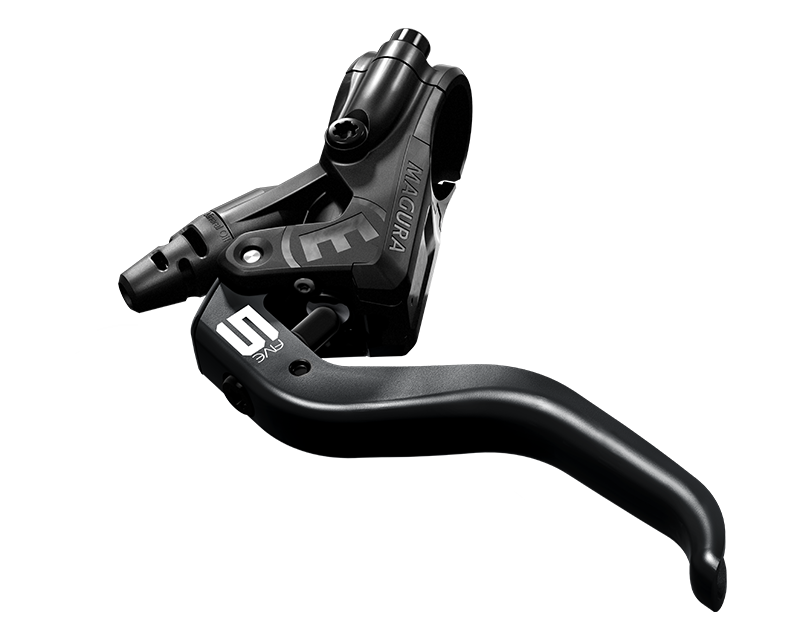

Radial Design: The radial design of the brake master ensures low friction, reducing transmission losses. It also enables conversion of small/large transmission ratios, improving modulation and control.

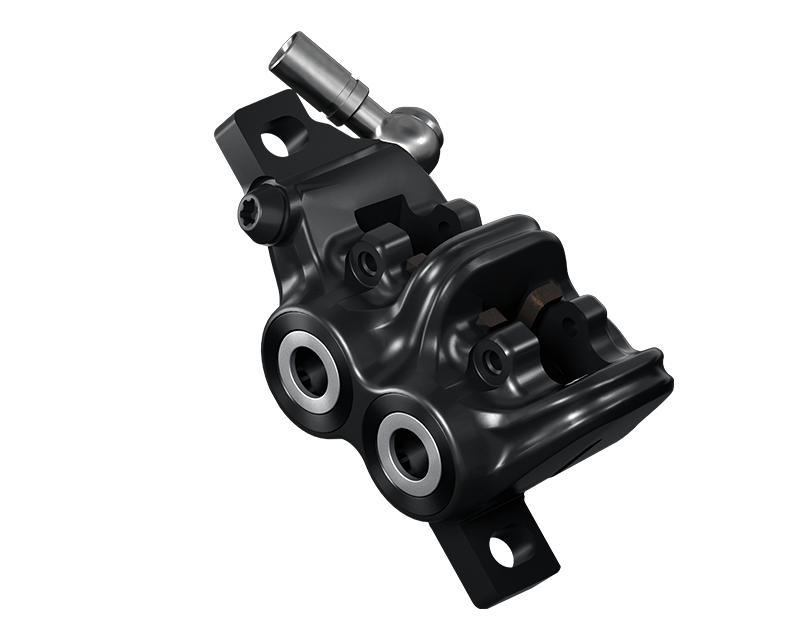

Affordable: Braking performance doesn’t have to be expensive. With the MT5, you save money while getting the performance you need. The 4-piston monobloc caliper forged in one piece has high rigidity, delivering outstanding braking force and modulation.
Particularly Reliable: Compared to the MT7, the MT5’s increased piston retraction makes it especially dependable in continuous use. Mounting is fast and the system is friction-free.
Specifications:
| Application | Gravity, Downhill, Enduro, Trail, eMTB, eMobility, Trekking, Tour, Cargo Bike, E-Cargo Bike |
| Color | Master Black / Caliper Black, Accent Silver |
| Master Cylinder Material | Carbotecture® radial |
| Caliper | Monobloc triple arch, 4 pistons |
| Lever Blade | 2-finger aluminium HC1, adjustable reach (T25 tool) |
| Brake Pads | Performance pads |
| Tubing Length | 2,200 mm |
| Flip Flop Easy Bleed | Yes |
| Weight | 255 g |
| Recommended Rotors | Storm HC / CL 160 / 180 / 203 mm; MDR-C 180 / 203 mm; MDR-P 180 / 203 / 220 mm |
5-Year Guarantee
MAGURA offers a five-year leak-proof guarantee for all brake masters and calipers/cylinders, provided they are exclusively equipped with original MAGURA spare parts.
