About this item
① Premium Performance -- The Hawk32 PRO front fork boasts a travel range of 203mm (if needed up to 228mm contact us to customize), specifically engineered for high-performance downhill and off-road biking. It features a stanchion diameter of 37mm and a caliper mount spacing of 74mm, making it compatible with 203mm disc brakes (with upgrade options available), which is ideal for electric dirt bikes and downhill bikes.
② Advanced Suspension Technology -- Featuring an inverted oil-spring damping system, the Hawk32 PRO has an asymmetrical design with independent left and right legs. It offers multi-stage adjustments for compression damping, rebound damping, and spring preload, allowing precise tuning for various riding styles and terrain conditions.
③ Durable Construction -- Constructed from AL6061-T6 forged aluminum alloy for the bottom brackets and AL7075-T6 aluminum alloy for the fork tubes, the Hawk32 PRO combines robustness with lightweight properties. The 55CRSI spring wire further enhances durability and performance under rigorous conditions.

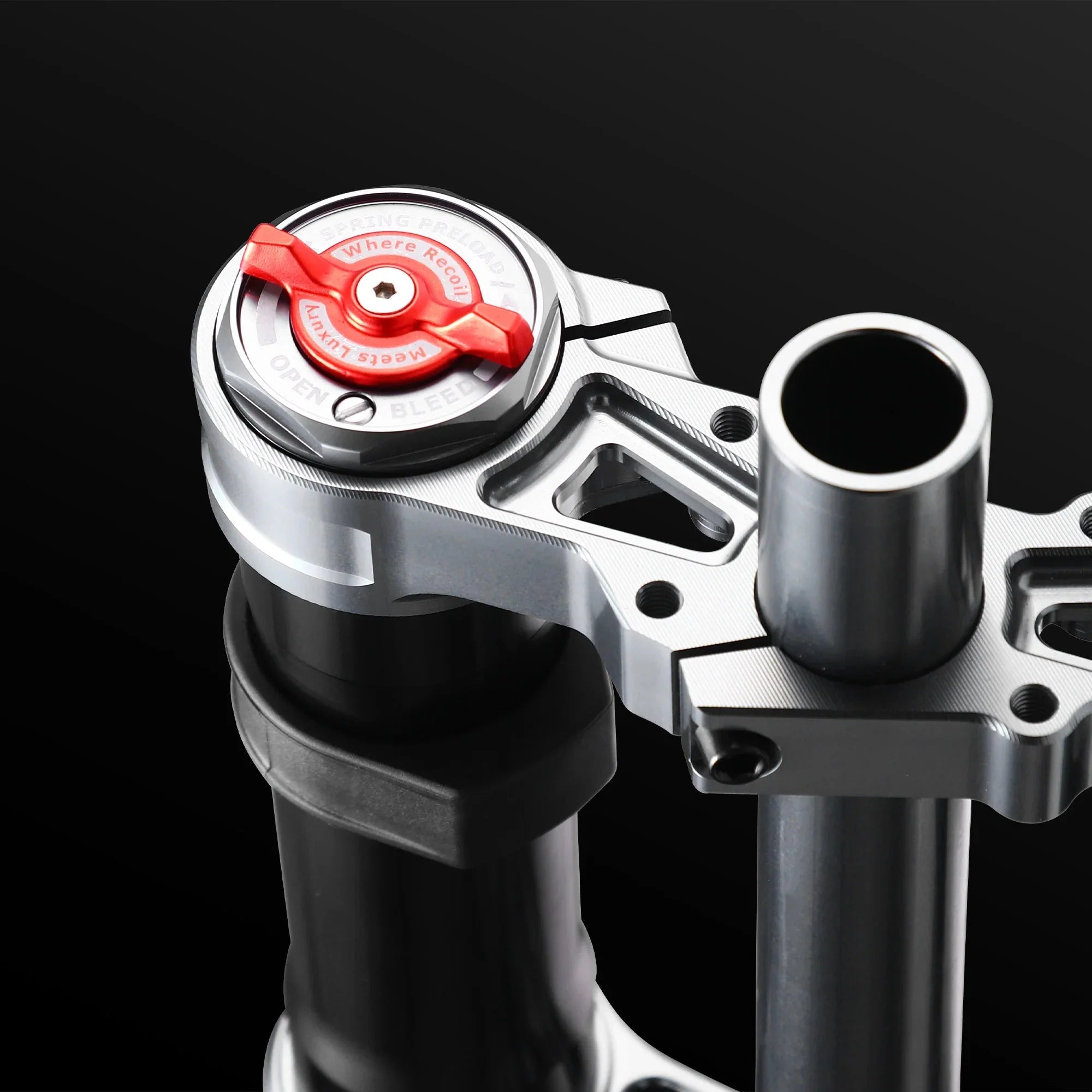

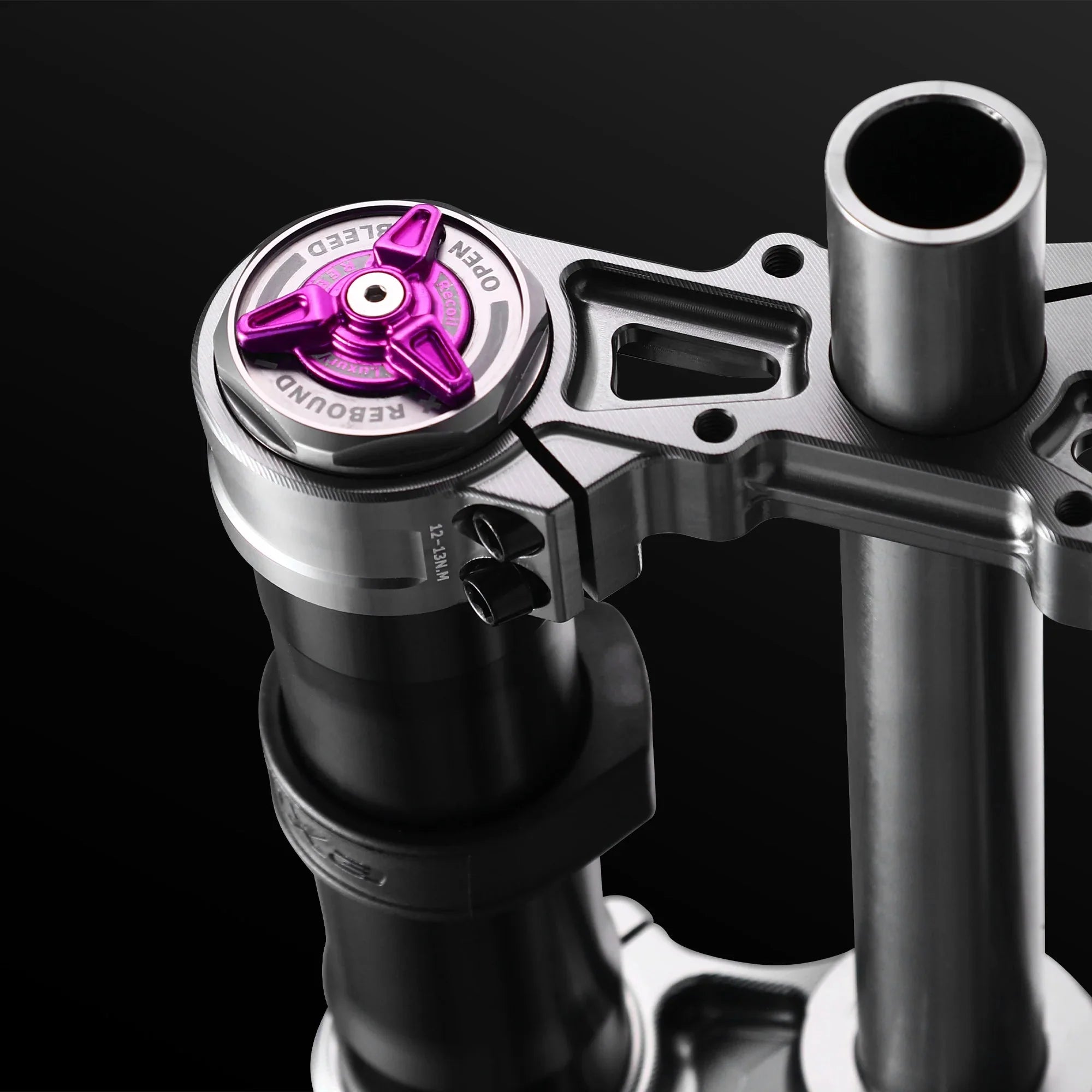

④ Customizable Tuning -- The fork's multi-stage adjustments, rebound, and spring preload, are controlled by easy-to-access manual knobs. This feature ensures quick and precise tuning for optimal performance and comfort in diverse riding environments.
⑤ Enhanced Bottom-Out Support -- A distinctive oil pressure bottom-out design provides strong support at the end of the suspension travel, enhancing stability and minimizing the impact of severe impacts.
⑥ Consistent Damping Performance -- The internal damping system includes dual compression valve plates, ensuring stable and reliable damping. The use of high-quality, low-friction, low-freezing-point shock absorber oil maintains consistent damping performance, even under extreme conditions.
FEATURES:
-
Center Distance: 750-800mm
-
Main Piston Travel: 203-228mm
-
Tube Diameter: ∅37mm
-
Caliper Mount Spacing: 74mm
-
Disc Brake Size: ∅203mm (Upgradeable)
-
Suitable For: Electric Dirt Bikes, Downhill Bikes
-
Damping System: Inverted Oil-Spring
-
Adjustments: Multi-stage Compression, Rebound, Spring Preload
-
Material: AL6061-T6 Forged Aluminum Alloy Bottom Brackets, AL7075-T6 Aluminum Fork Tubes
-
Spring Wire: 55CRSI
-

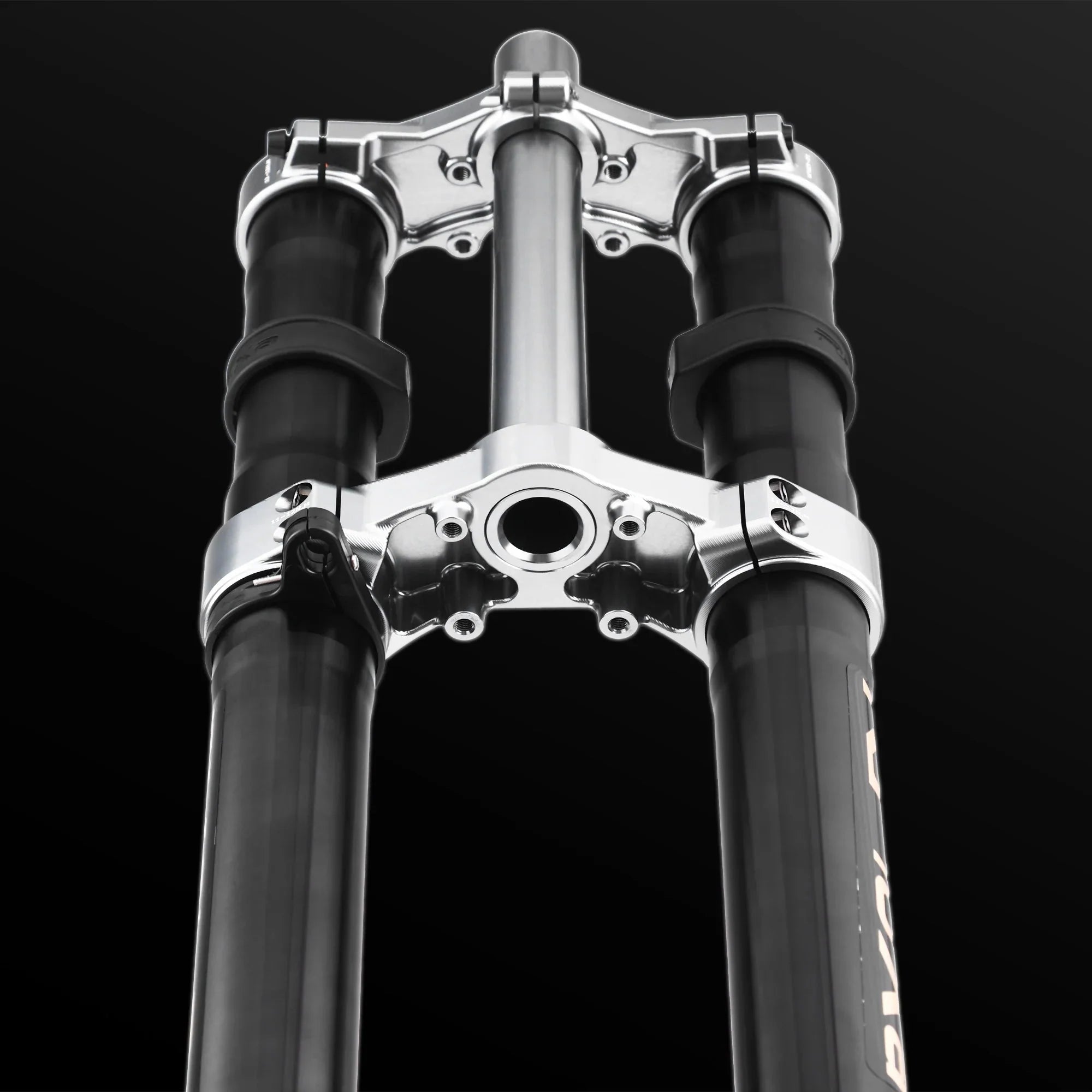

Triple Clamp: CNC Precision Machined
Fitment:
- Talaria MX3 / MX4 / XXX
- SurRon LBX, LBS, L1E
- Segway X-260 / X-160
- E-Ride Pro S / SS 1.0/2.0
- Rawrr Mantis
- 79 Bike Falcon M
- Ventus One
- RFN Apollo
- Rerode R1
