Description
About this item
① Preloaded Bearing Kit Included – This fork comes with a bearing kit installed for quick and easy installation—no extra parts needed.
② Purpose-Built for Talaria MX5 – Engineered specifically around the Talaria Sting MX5 geometry, this fork ensures ideal fitment and performance. It's compatible with both 19" and 21" wheels, making it versatile for a range of setups and terrain.
③ Spring Rate Recommendations
For 203mm Travel Fork (19"/21" wheel compatible):
-
45lbs spring – ≤100kg
-
60lbs spring – 100–130kg (ideal for heavy jumping)
-
45–60lbs progressive spring – 80–130kg
For 228mm Travel Fork (19"/21" wheel compatible):
-
45lbs spring – ≤100kg
-
55lbs spring – 100–130kg (our recommendation for MX5 owners)

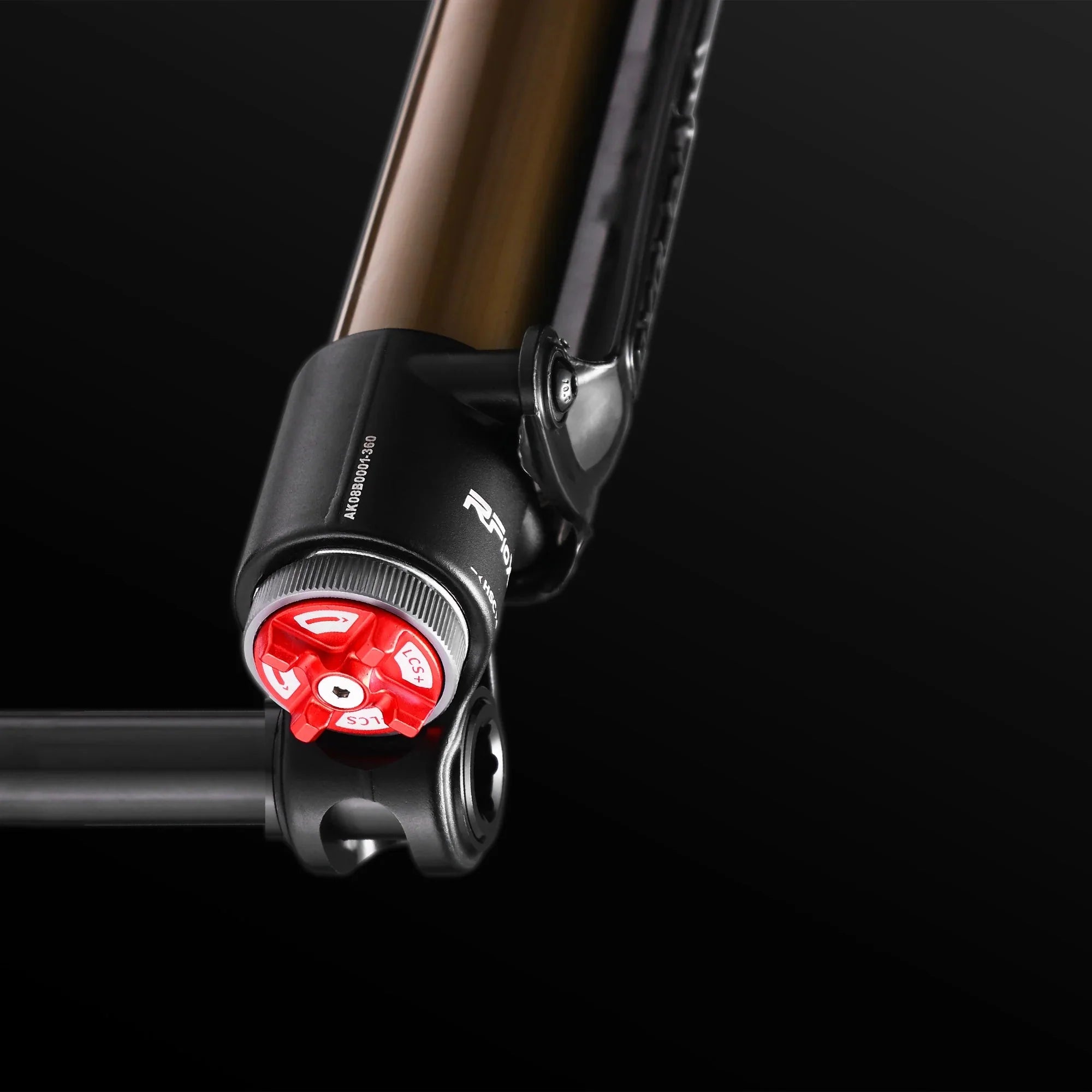

④ Precision Suspension System – Equipped with an inverted oil-spring damping system, this fork provides multi-stage adjustability for high-speed compression, low-speed compression, rebound, and spring preload, allowing you to dial in your ride for any terrain or riding style.
⑤ High-Quality Construction – Built using AL6061-T6 forged aluminum alloy for the bottom brackets and AL7075-T6 aluminum alloy for the fork tubes, this fork delivers the ideal balance of strength and weight. The use of 55CRSI spring wire ensures enhanced durability and long-term performance.
FEATURES:
-
Center Distance: 750–800mm
-
Main Piston Travel: 203–228mm
-
Tube Diameter: ∅37mm
-
Caliper Mount Spacing: 95.5mm
-
Disc Brake Size: ∅220mm (Upgradeable)
-
Damping System: Inverted Oil-Spring
-

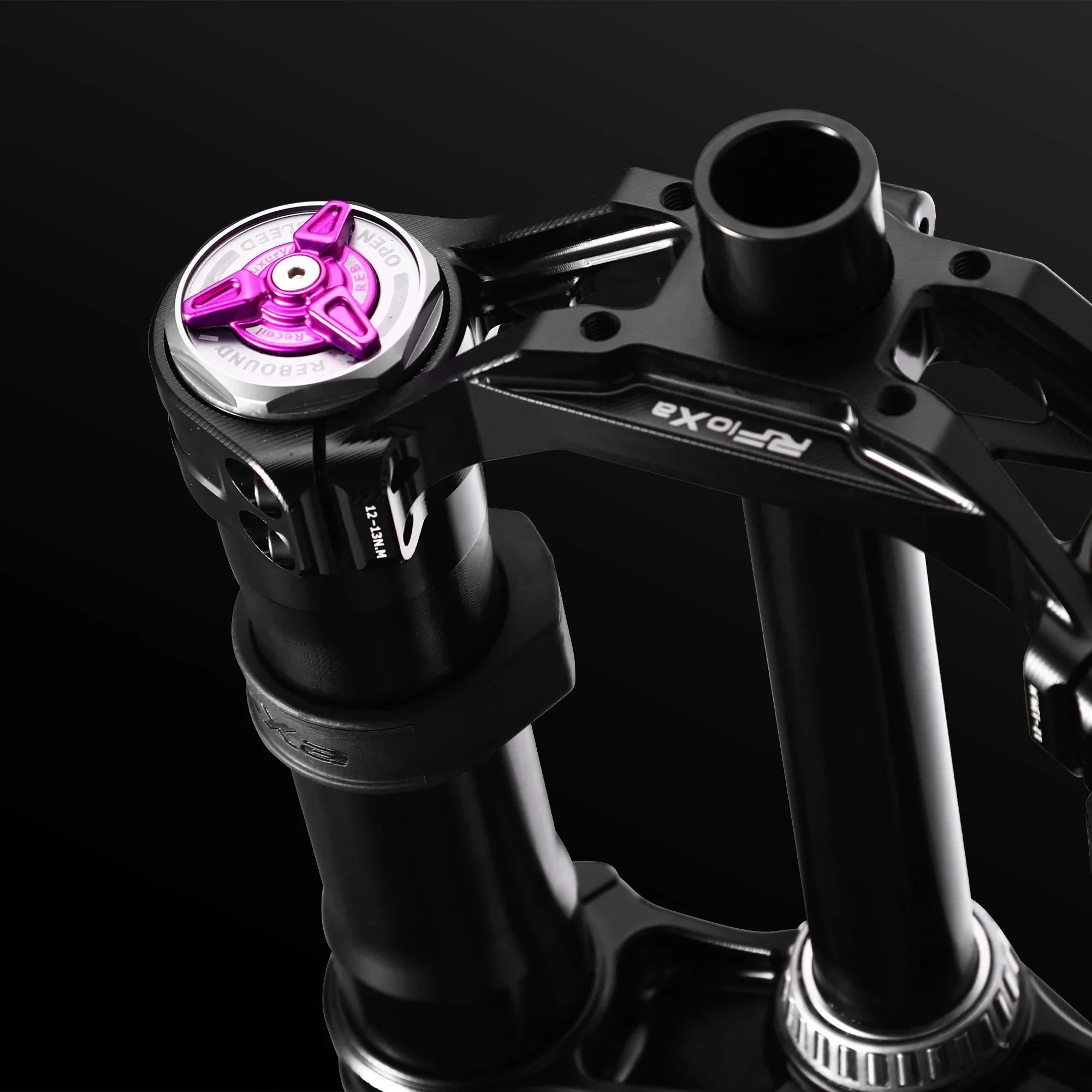

Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
-
Materials: AL6061-T6 Forged Aluminum (Bottom), AL7075-T6 Aluminum (Tubes)
-
Spring Wire: 55CRSI
-

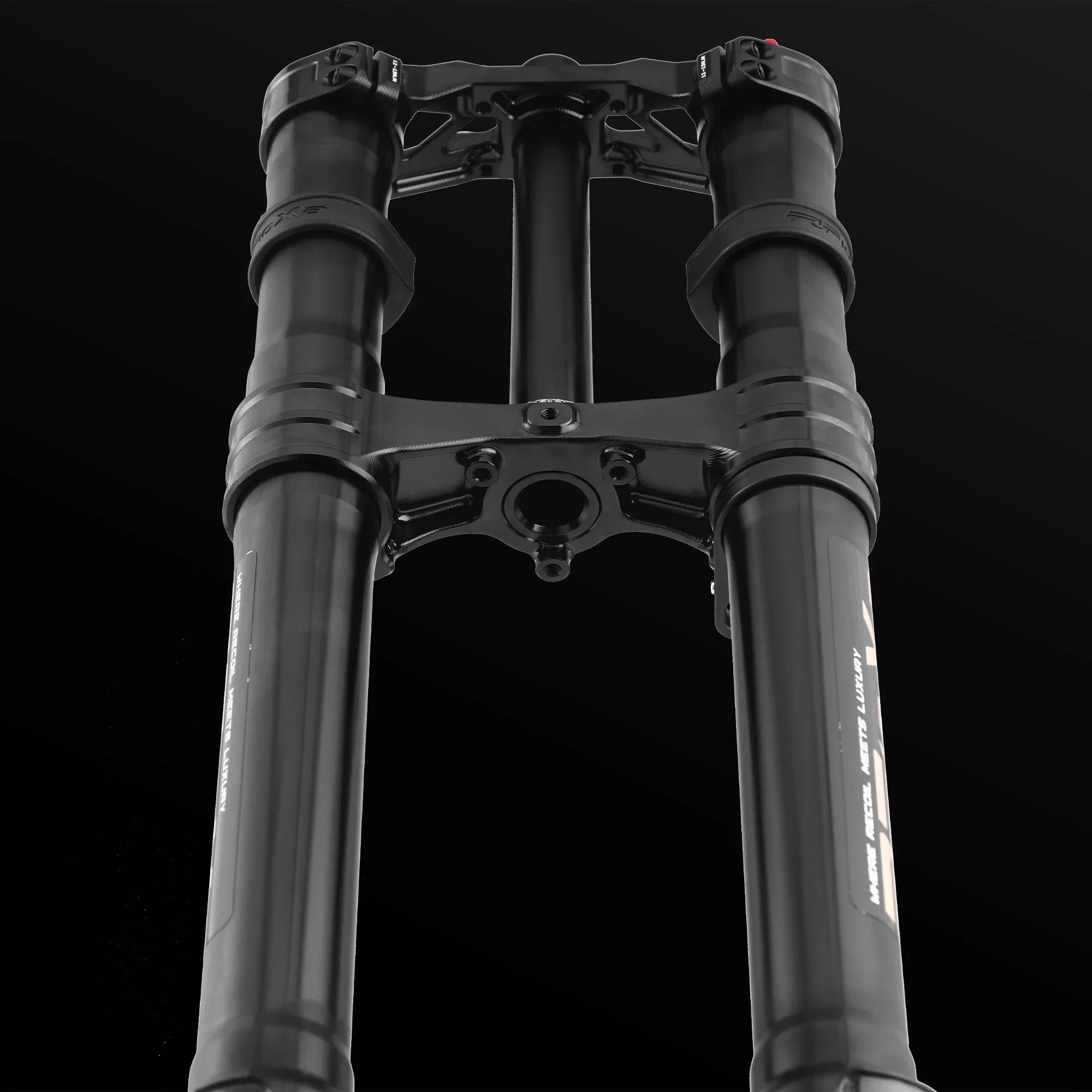

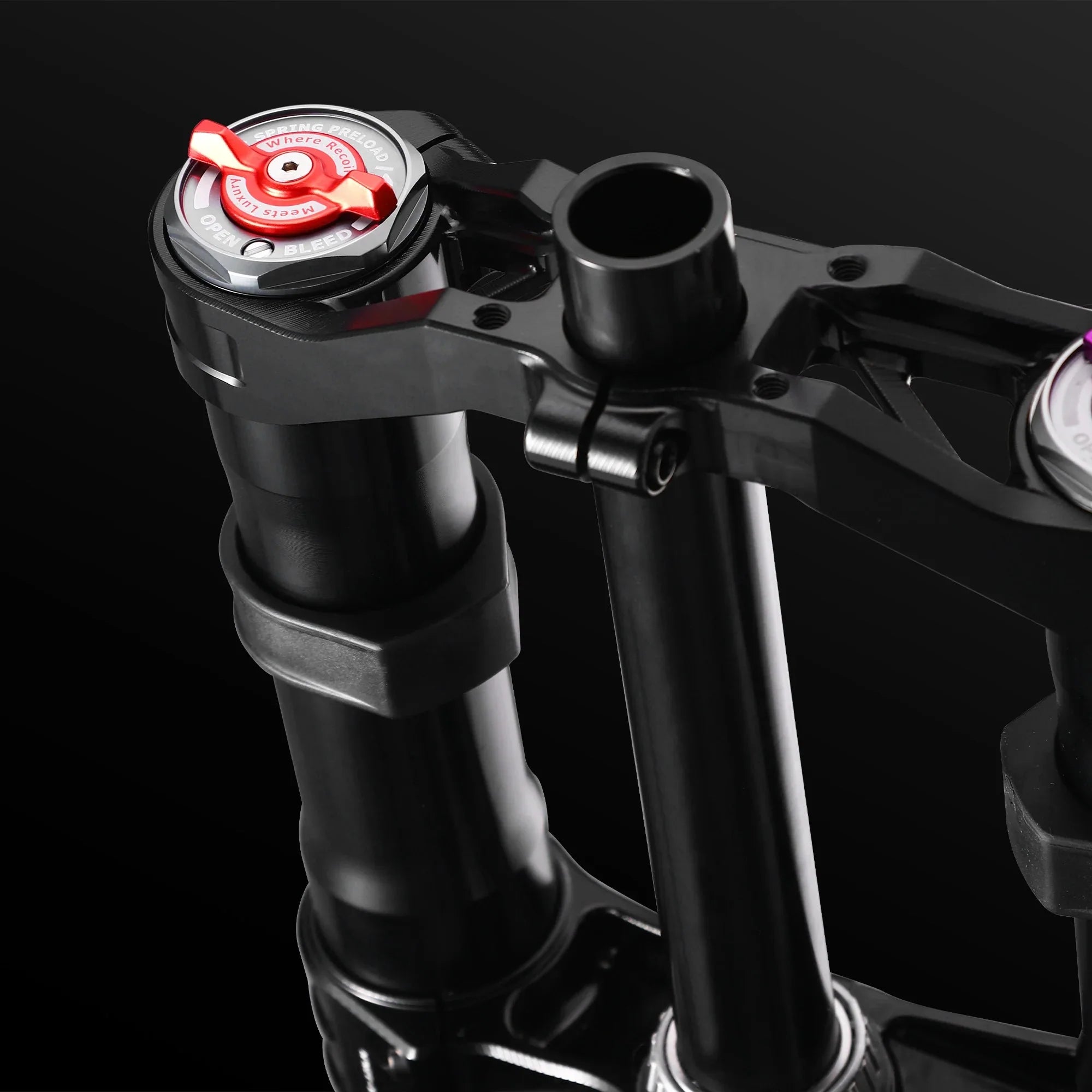

Triple Clamp: CNC Precision Machined
Fitment:
-
Talaria Sting MX5
