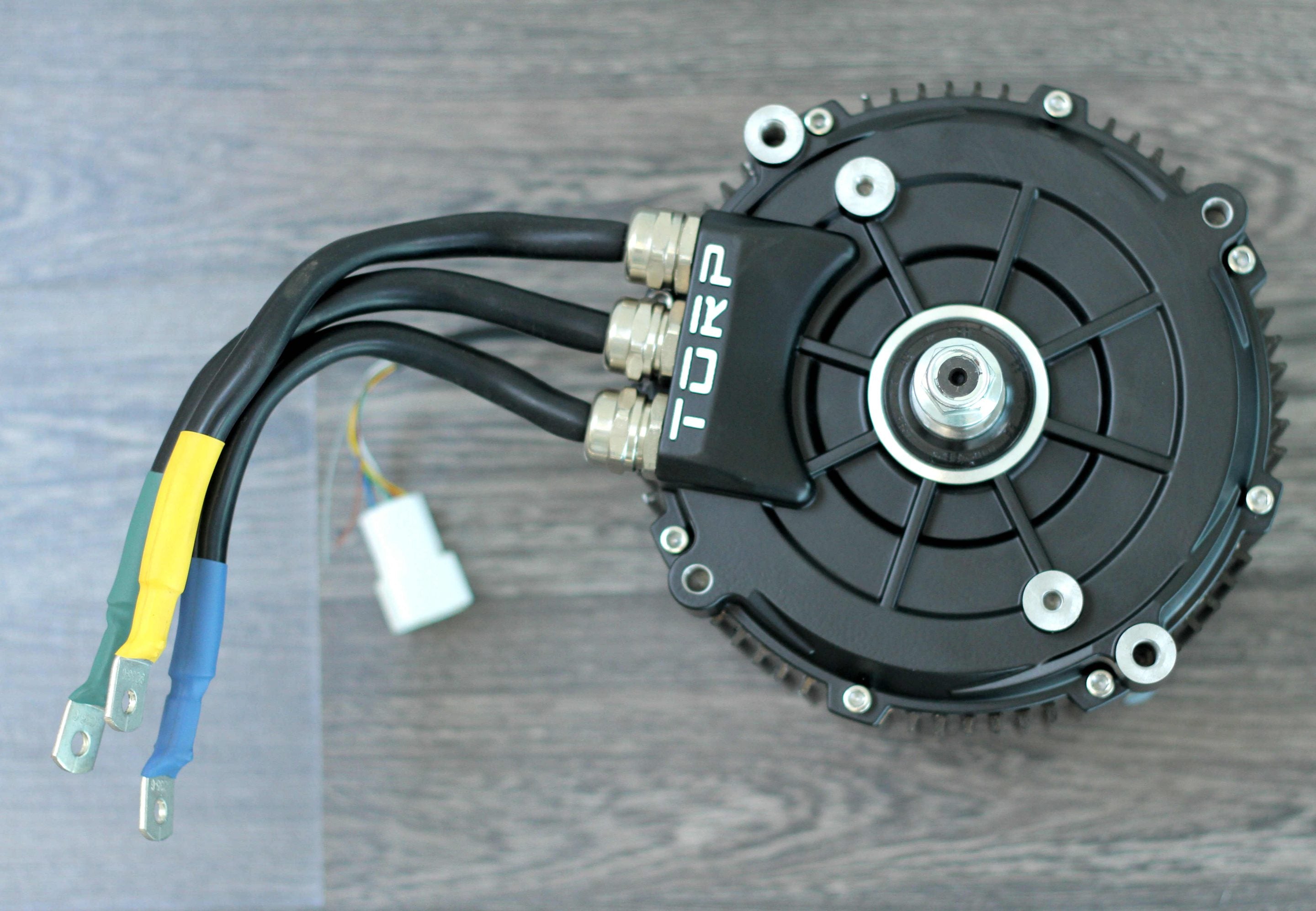

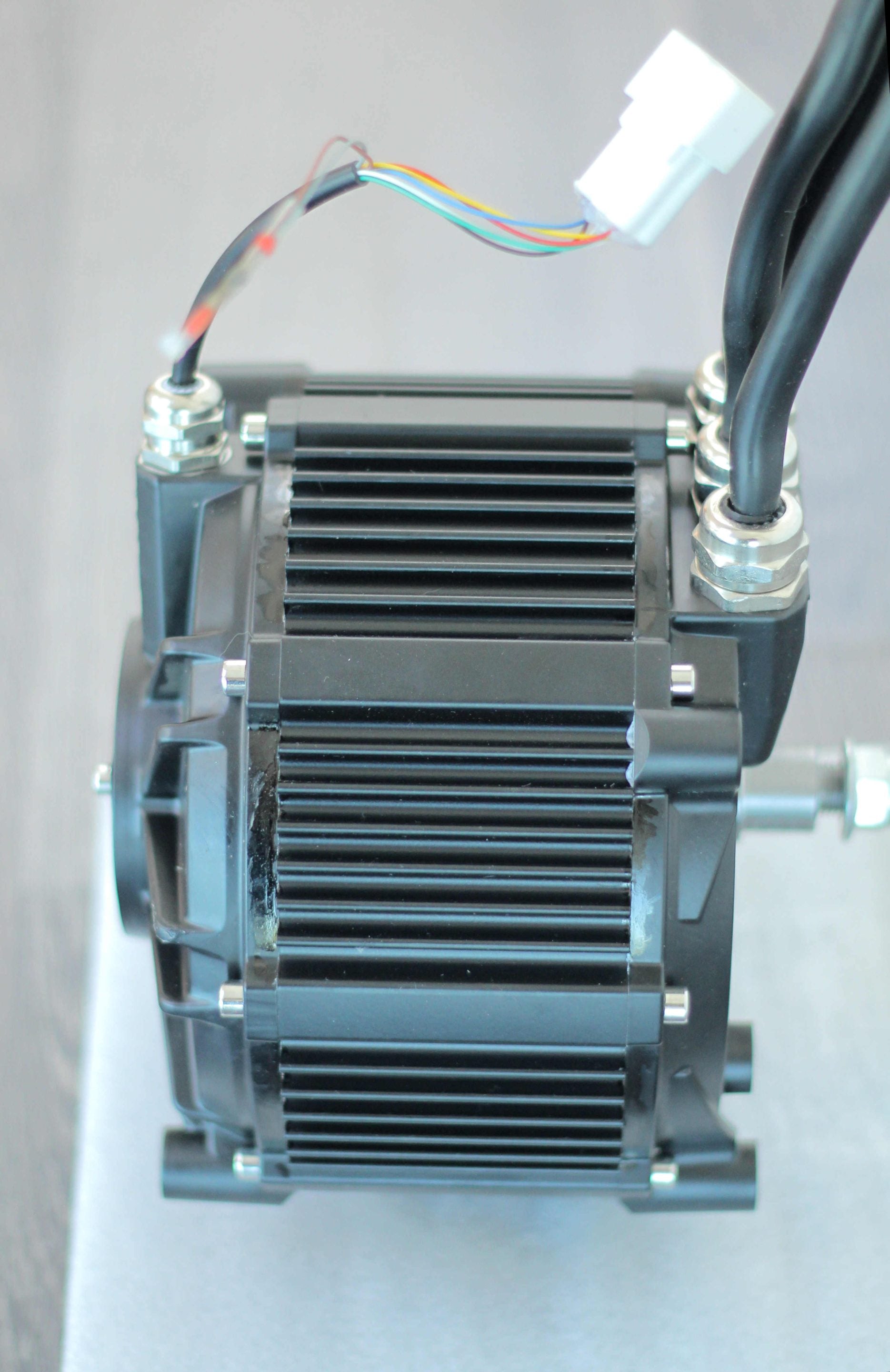

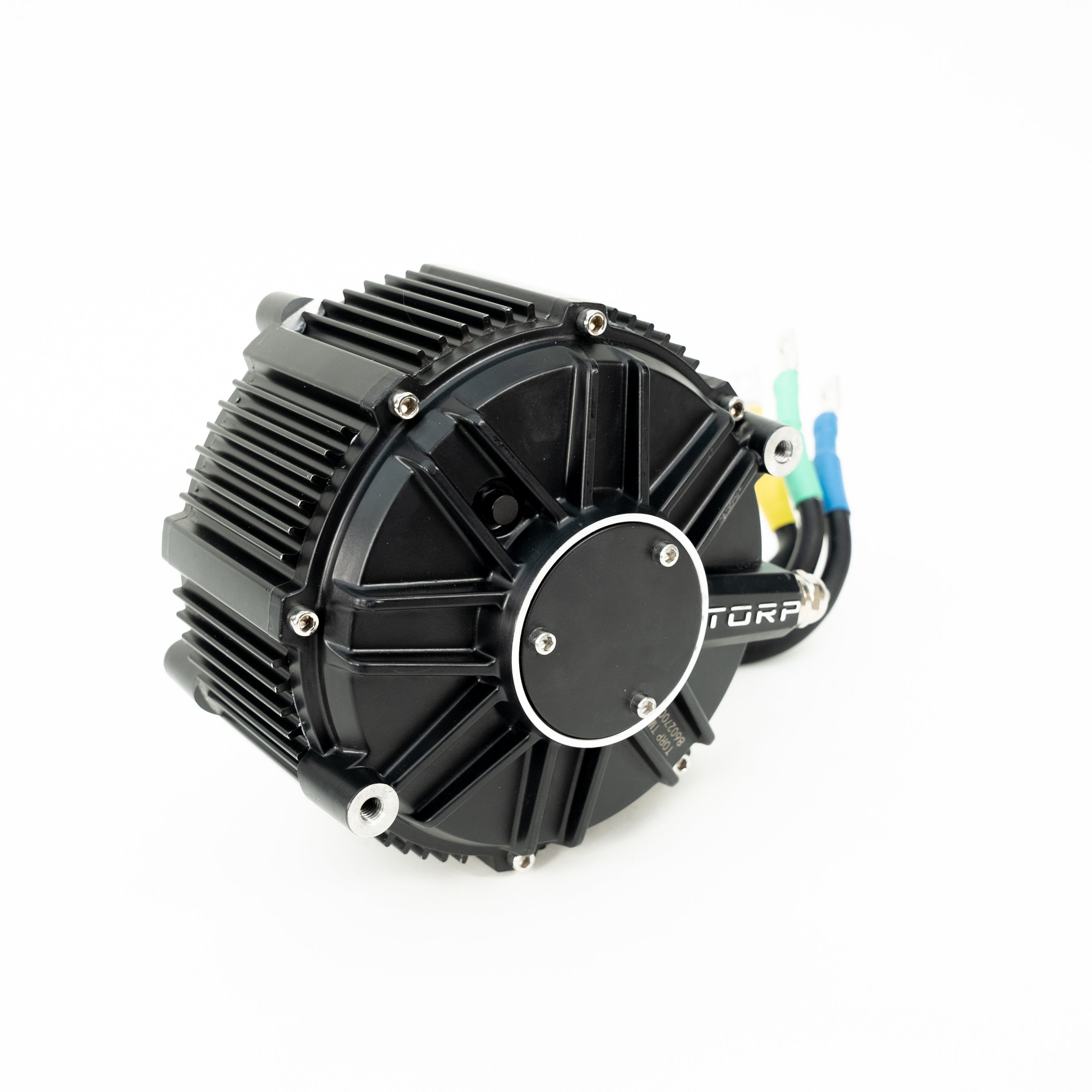

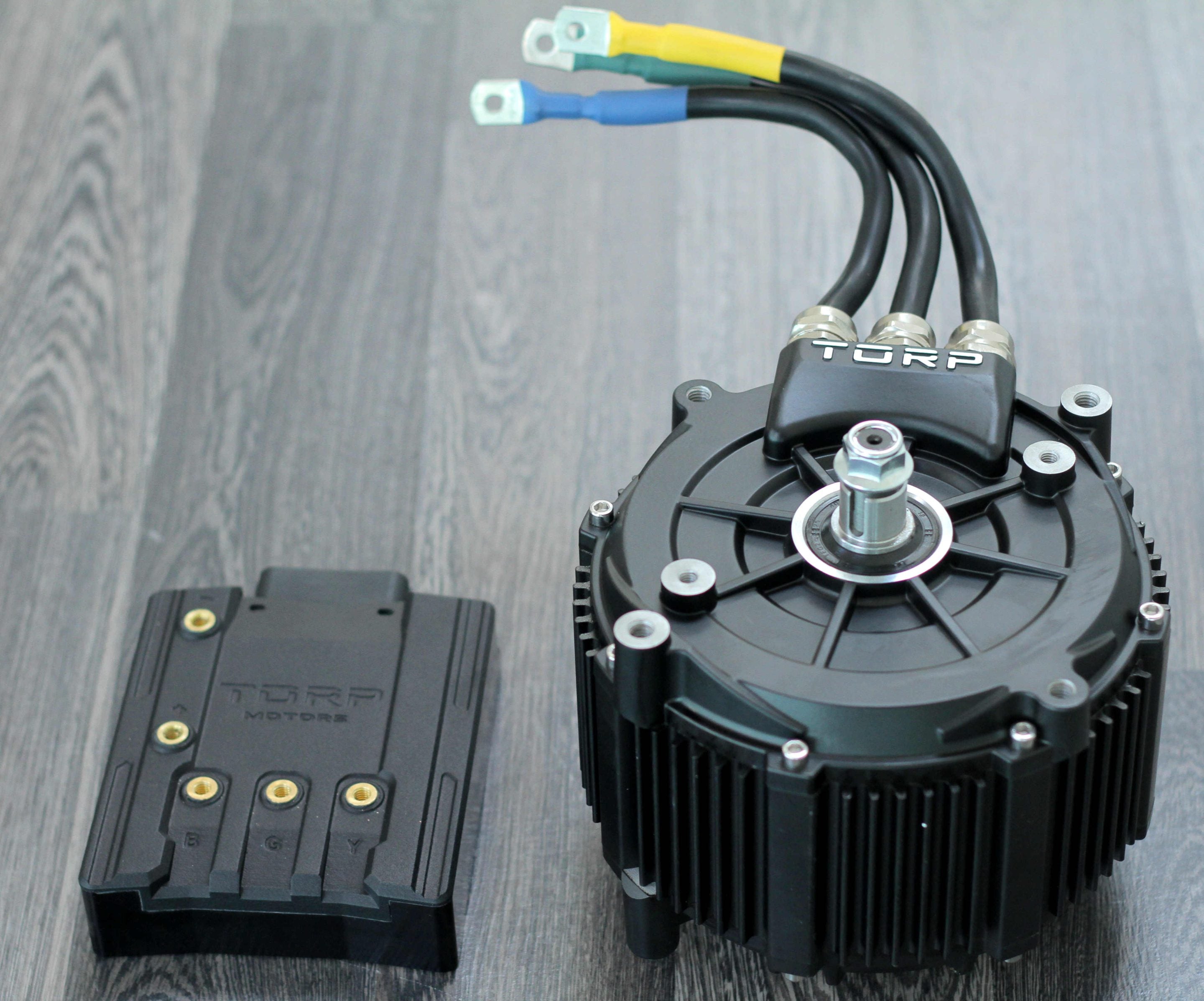

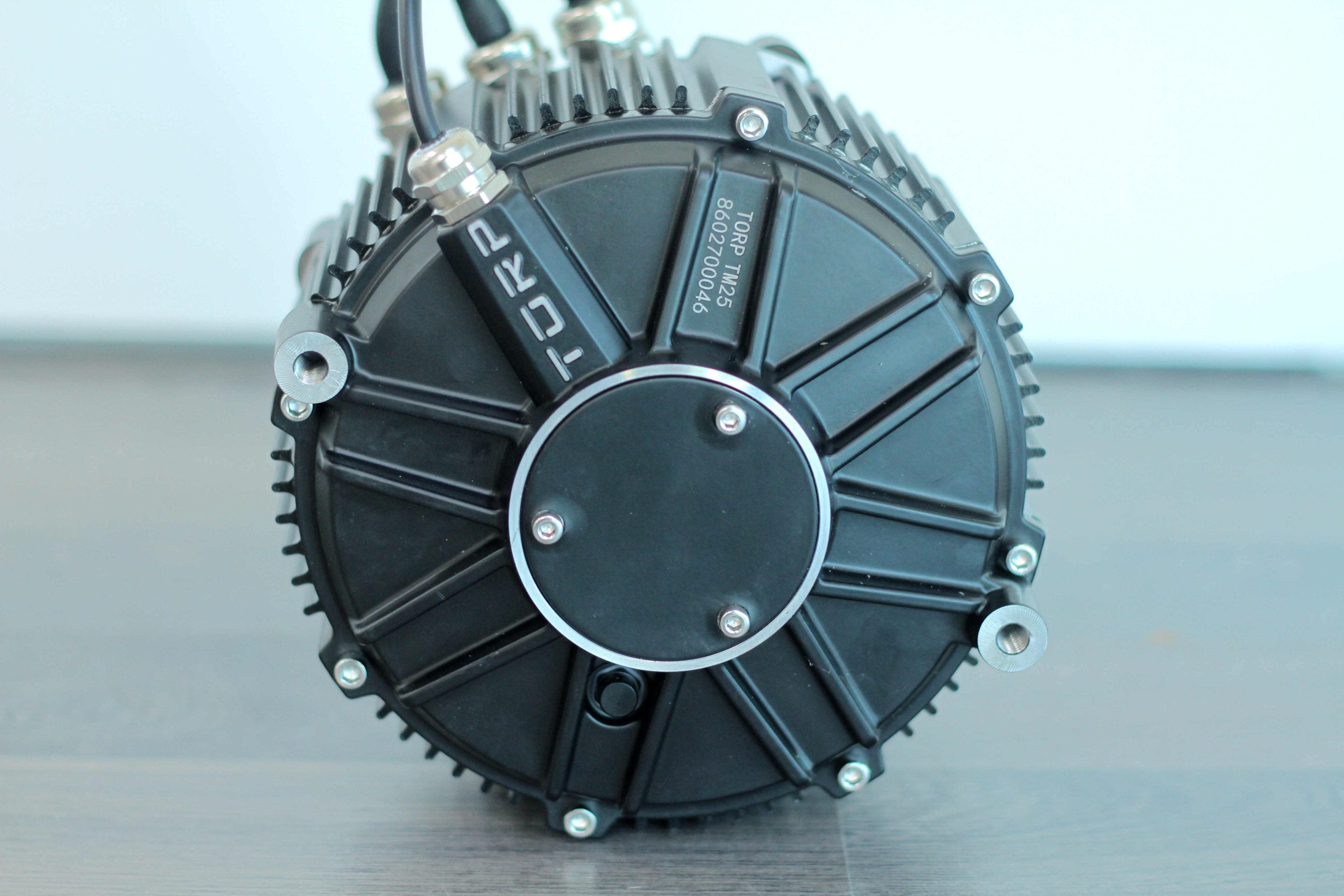

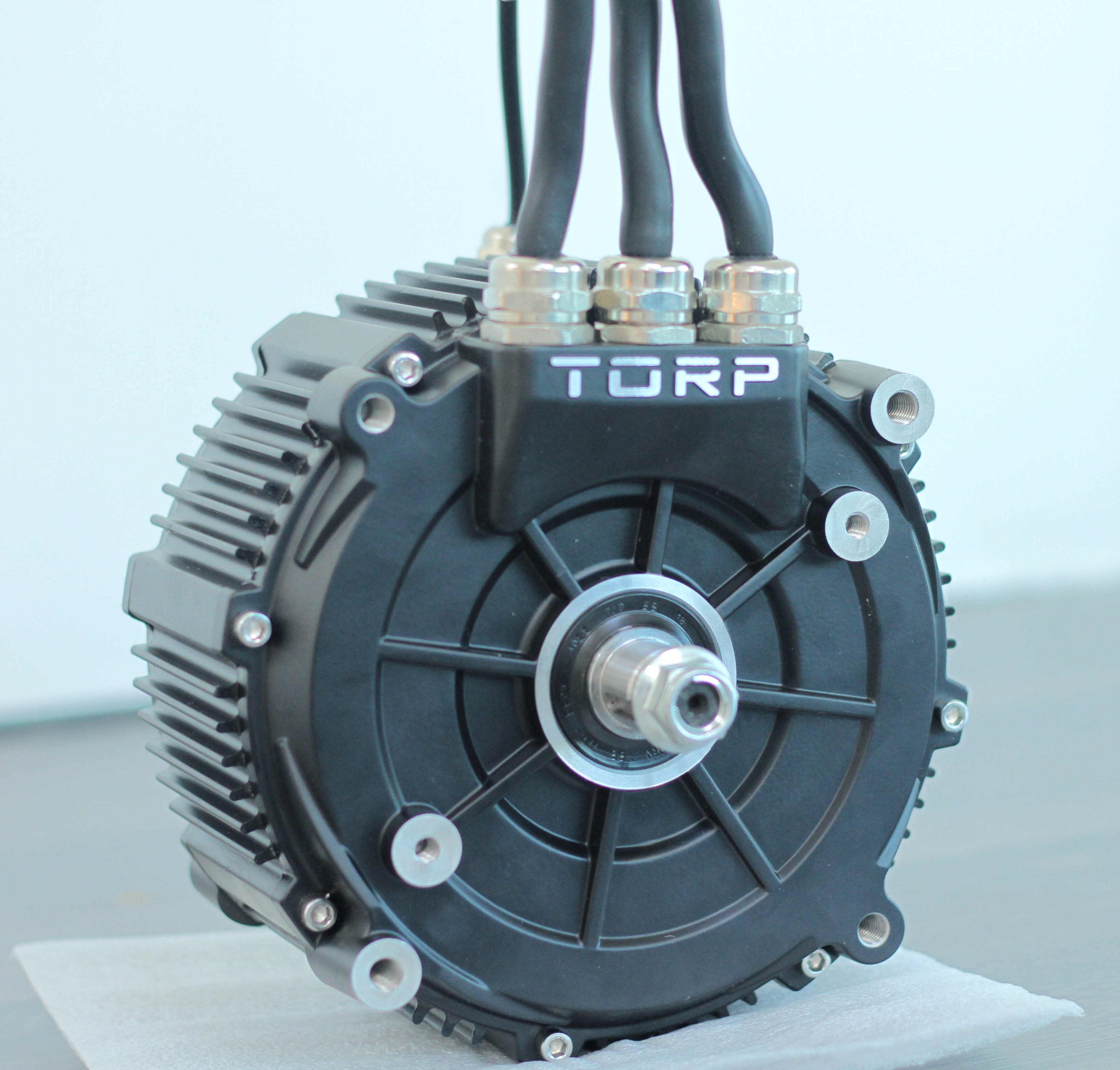

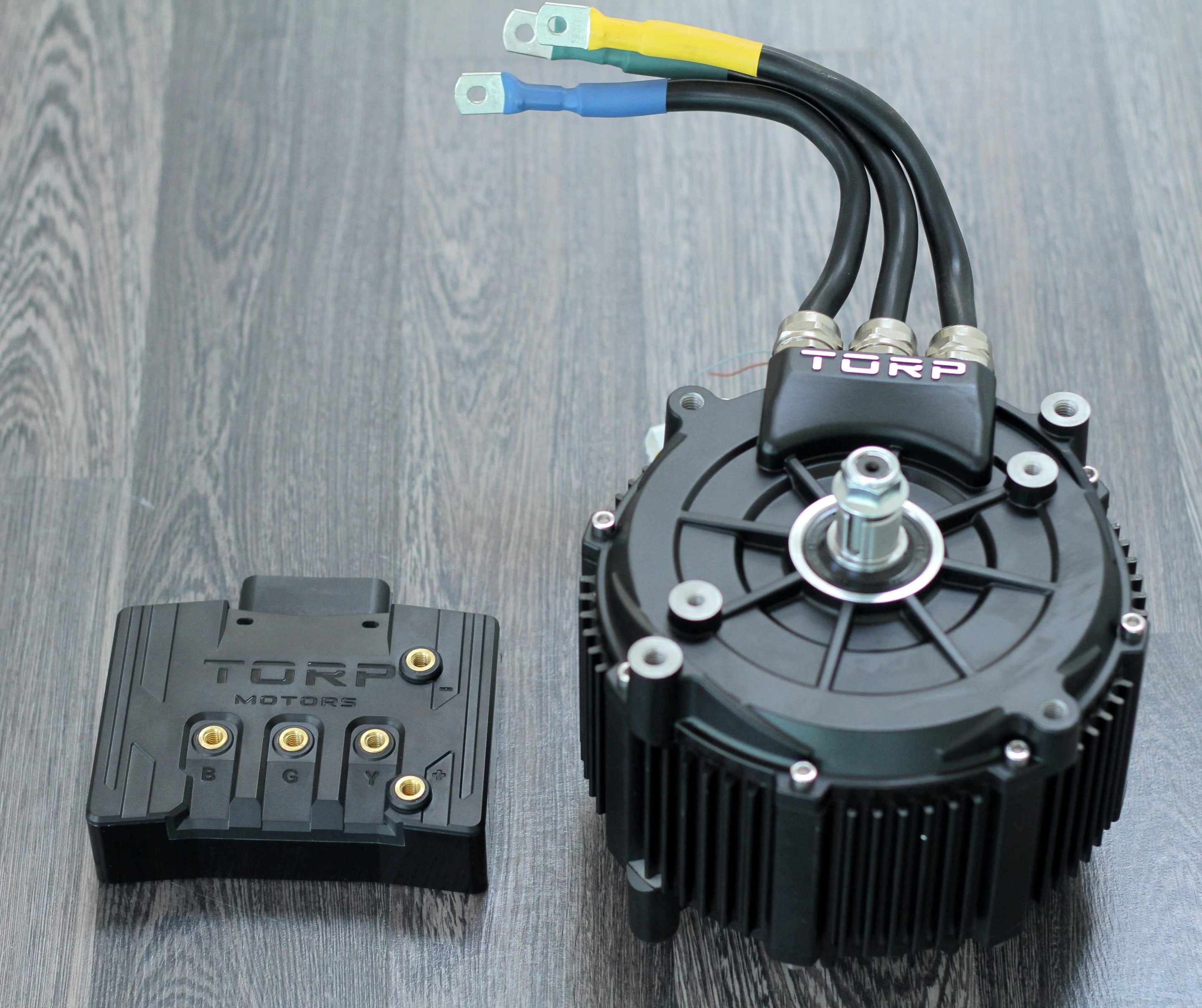

Torp TM25 Motor for Surron Light Bee

Save 10%

Motor Sensor Type: Hall Sensor (for other controllers)

Variant

Price:

$950.00 $1,050.00

Quantity:

Powerful, light, and affordable! The Torp TM25 motor is an aftermarket performance upgrade for your SurRon Light Bee.

Although the TORP TM25 Motor has been developed with Torp Controllers in mind, this motor can be easily used with other controller brands, as well as mounted on various vehicles.

DEVELOPED FOR SURRON LIGHTBEE, WITH MOUNTING OPTIONS FOR OTHER VEHICLES.

HALL SENSOR OR ENCODER? WORKS WITH BOTH!

3-TIMES LESS RESISTANCE COMPARED TO THE STOCK SURRON MOTOR.

* TM25 is compatible with the TC500 controller hardware version 1.3 and up. You can find your hardware version printed on the side of your TC500. If you have an older version, please contact Torp directly.

Specifications

Motor type: IPM
Voltage: 48V-90V
Continuous Power: 13KW
Peak Power 25KW@60v, 27KW@72v, 31KW@80v, 40KW@120v
Rated Speed: 6,000 RPM
Max RPM: 10,000 RPM
Position sensor: Hall sensor and Encoder
Encoder points: 1024 (4096)
Max magnet temp.: 150 C

Phase Amps: up to 750A
Temp. sensor: PT1000
Efficiency: up to 95%
Protection class: IP67
Weight: 21.6lbs (9.8 kg)
Installation: Mid
Number of pole pairs: 5
Cooling method: Air

* This aftermarket motor requires an aftermarket controller. You can find all Torp controllers here
